OneTop SH2500

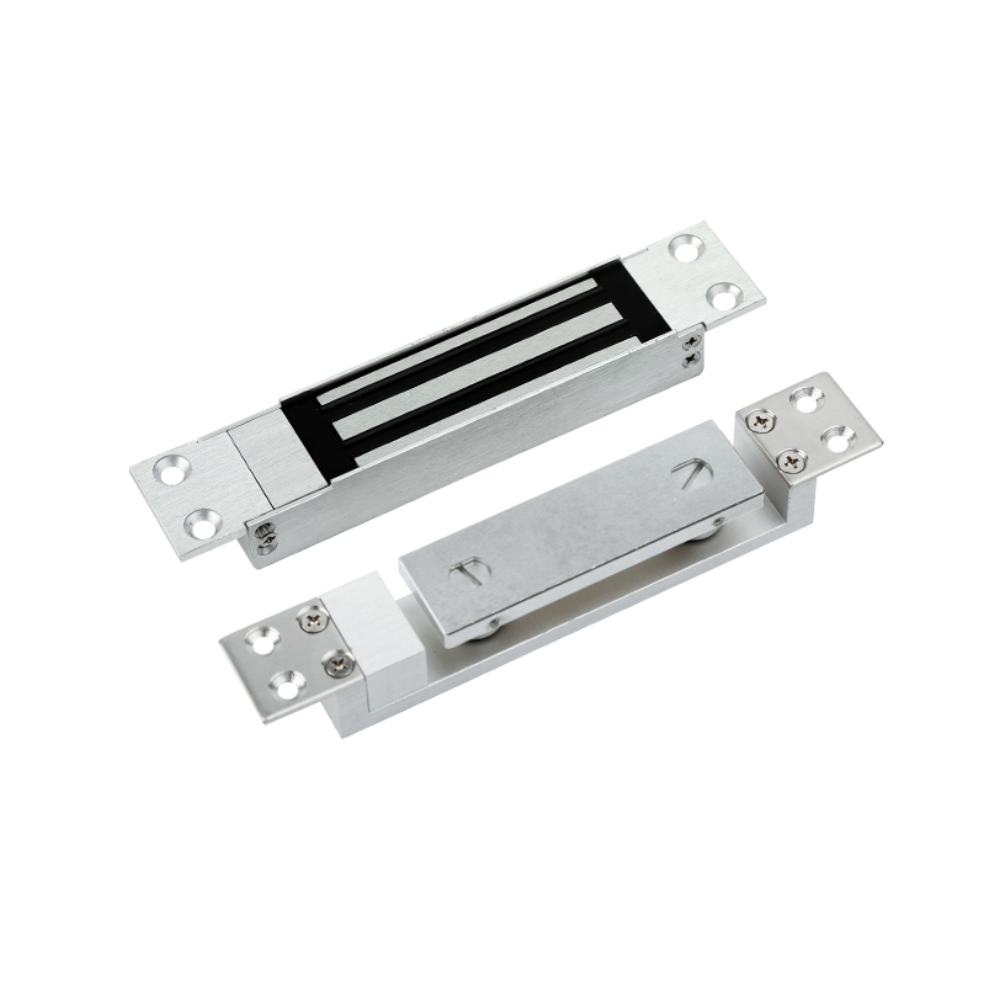

OneTop SH2500 Electric Fail-Safe Electromagnetic Shear Lock – Up to 300Kg Holding Force – 12VDC~24VDC Powered – Anti-Cossosion Plating – Fail-Safe
OneTop SH2500 Electric Fail-Safe Electromagnetic Shear Lock – Up to 300Kg Holding Force – 12VDC~24VDC Powered – Anti-Cossosion Plating – Fail-Safe
Key Features :-
- Lock Holding Force: 300Kg
- Fail Safe: Power to lock
- Surface Finish: Anodized Aluminium housing
- Zinc plated for anti-corrosion (passed 96Hrs Salt spray test)*
- Lock Body Dimension: L 165 x W 31 x H 21mm
- Armature Plate Dimension: L 86 x W 25.4 x H 6mm
- Lock Operating Voltage: 12/ 24VDC ±10%
- Lock Operating Current: 1200mA Rush 200mA hold 12VDC
- Lock Operating Current: 600mA Rush 100mA hold 24VDC
- Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
- Dynamic Impact Resistance: 60J
- Operating Temp: 10°C ~60°C
- Expected Usage Lifespan: Over 1 million cycles
- Compliance: UL, BS EN1634-1:2024, CE, RoHS. 4 Hrs Fire Resistance.
