Optex AX-200TN

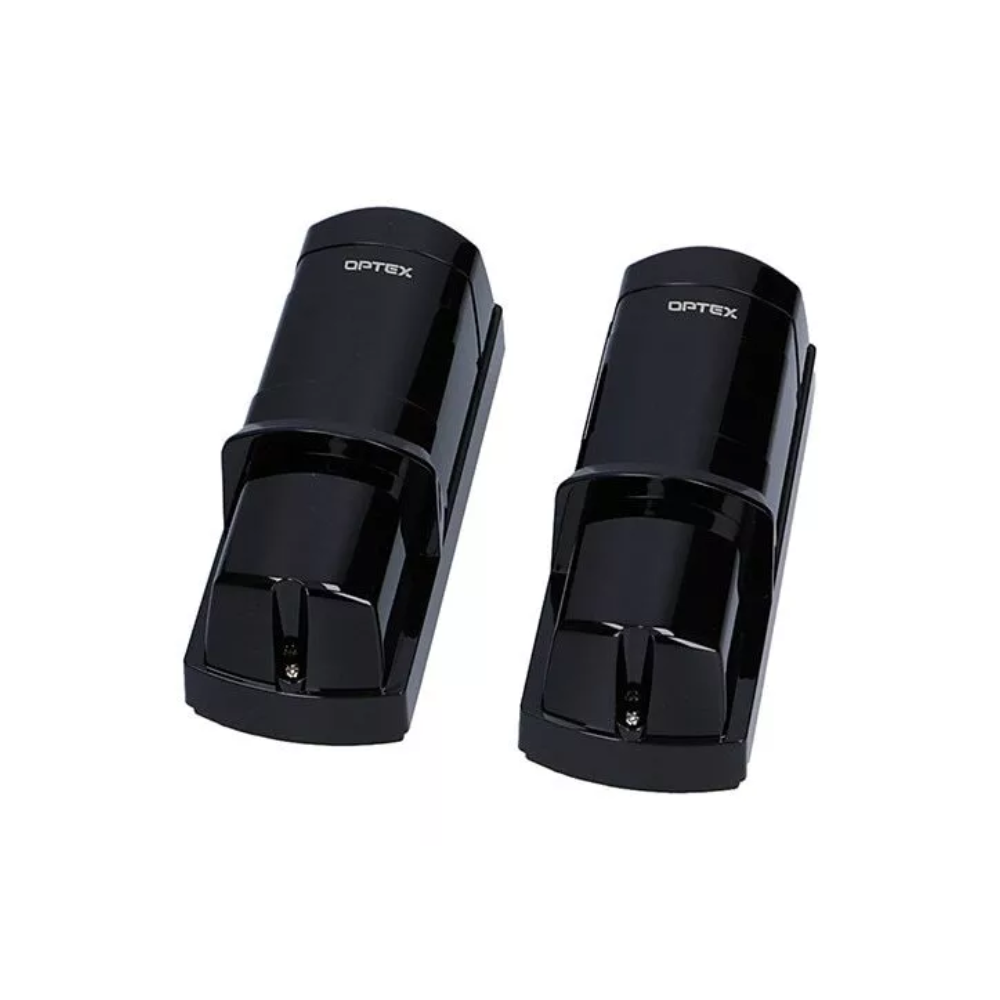

Optex AX-200TN Weatherproof 60M Short Range Photoelectric Beam Detector Set – 60M Range – IP65 – Twin Beam – 10.5VDC ~ 28VDC Powered
Optex AX-200TN Weatherproof 60M Short Range Photoelectric Beam Detector Set – 60M Range – IP65 – Twin Beam – 10.5VDC ~ 28VDC Powered
Features :-
- Up to 60m detection range
- Anti-frost hood cover
- Outdoor ready IP65
- Easy angle adjustment
- High grade spherical
- Adjustable beam interruption period
- 99% beam blocking stability
The AX-200TN is a 60m outdoor hardwired active infrared (AIR) beam set, designed to protect driveways, open areas and small perimeters. The dual beam set can also be connected to an IP network when used in conjunction with the IP/POE module PIE-1
Flexible settings
The AX- beams series offers great set-up flexibility. The angle can be easily and precisely adjusted by +/- 90 degree horizontally and +/- 5 degrees vertically. The beam interruption time could be adjusted between 50, 100, 250 and 500 milliseconds to fit any operational requirements.
Weather resistant
IP65 rated, the AX-200TN housing has been designed to resist against both water and dust. The hood featured on the front cover is to prevent frost from attaching to the cover and potentially affecting the signal power. The beam is also fitted with specific relay and absorber to protect it from lightening surges.
Applications
- Perimeter
- Garden
- Driveway
Product Range
- AX Beams
Model Code
- AX-200TN
Detection method
- Twin Channel
Detection Coverage
- 60m
Detectable speed
- Selectable between 50, 100, 250, and 500 msec.
Power input
- 10.5 – 28VDC
Alarm period
- 2 sec. (±1) nominal
Alarm output (R)
- N.C./N.O. 28 VDC 0.2 A max.
Operation temperature
- -35°C to +60°C Use the optional heating unit (HU-3) under the environment of -25°C or less minus.
IP rating
- IP65
Installation Method (indoor/outdoor)
- Outdoor
Weight
- 650 g
Dimensions
- 170 mm x 65 mm x 69.5 mm
