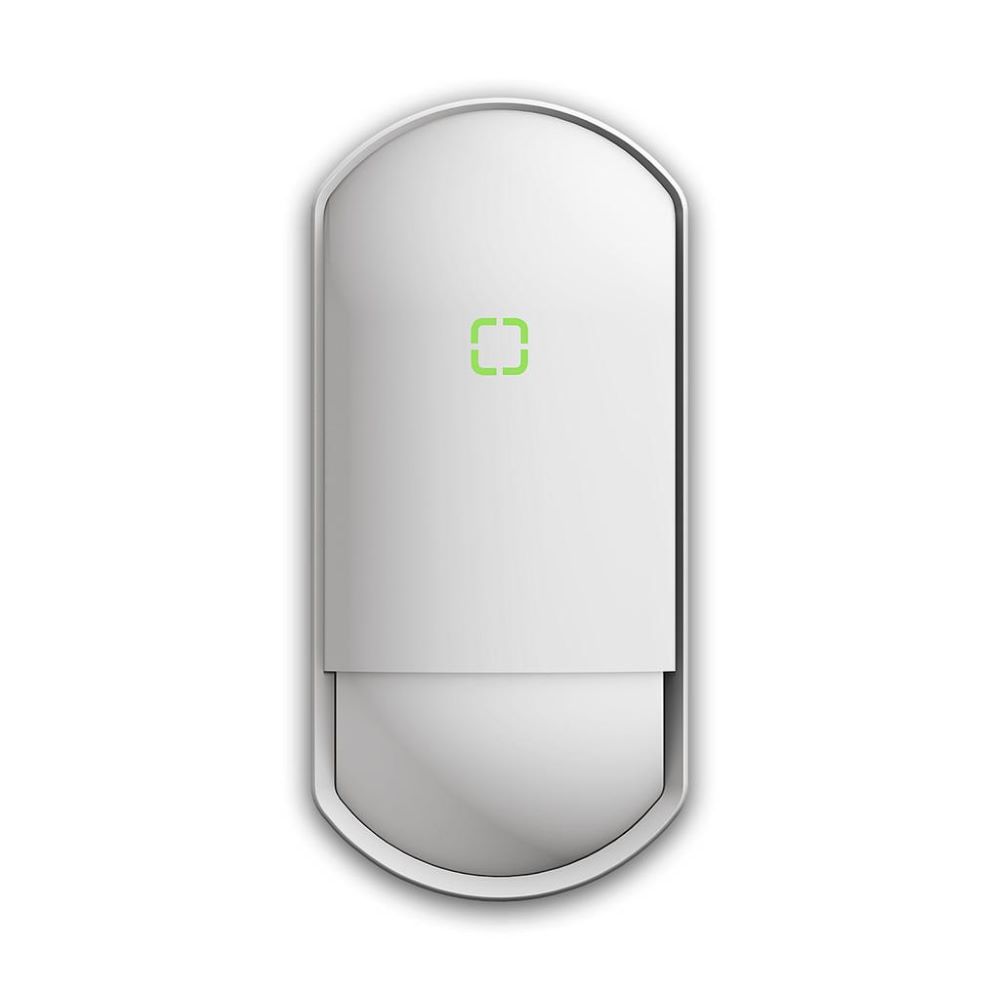

Optex FLX-S-DT
Optex FLX-S-DT FlipX Lens Indoor Hardwired Dual-Tech Combo PIR + Microwave Motion Detector with Rotatable Lens – 85° Wide Angle Coverage With 12m Range OR 5° Narrow Angle With 18m Range
Optex FLX-S-DT FlipX Lens Indoor Hardwired Dual-Tech Combo PIR + Microwave Motion Detector with Rotatable Lens – 85° Wide Angle Coverage With 12m Range OR 5° Narrow Angle With 18m Range
Key Features :-
- Easily Viewable LED Color
- Human-Catch Element
- Refined Spherical Lens
- Mounting height – 2.0 to 3.0m
- Detection method – Passive infrared & Microwave
- PIR coverage – Wide: 12 m 85° FOV
- Narrow: 18 m 5° (No MW detection at “Narrow” setting)
- Alarm period – 2.0 ± 0.5 s
- Warm up period – Approx. 60 s (LED blinks)
- Power input – 9.5 to 16 VDC
- Current draw – 11 mA (normal) 14 mA (max.) at 12 VDC
- Alarm output – N.C. 24 V DC 0.1 A max. (Resistive load)
- Tamper output – N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
- Operating Temp – -20°C to +45°C
- Temperature compensation – Digital (SMDA)
- Environmental humidity – 95% RH max
- Weight – 105g
Advanced pyroelectric sensor
Equipped with the latest-technology pyroelectric sensor, the FlipX Standard ensures high performance and accuracy. What makes the sensor unique is its ability to adapt to the human shape and differentiate humans with greater clarity, avoiding false alarms triggered by pets.
Rotatable lens
The FlipX Standard features our innovative, time and money saving solution – the rotatable lens. The sensor comes with the factory setting of wide detection but by simply removing the cover and flipping the lens 180degrees you can create a whole new narrow detection area for corridors, window protection and more.
Spherical lens design
The specially designed spherical lens provides a precise focal length of each detection ray onto the pyroelectric elements. This advanced lens design helps to ensure consistency throughout the field of detection and considerably reduces the chance of missed alarms.
SMDA logic
All FlipX series are equipped with a digitally enhanced signal recognition logic, “SMDA”. This highly developed detection technology helps the sensor avoid nuisance alarms from shades, changes in temperature or brightness which can be common in indoor settings. With this enhanced digital logic you can get piece of mind that your alarm will not be activated by everyday triggers. In this model we have also incorporated features from outdoor sensors, to make it more resistant and durable for everyday indoor detection use.
Easy installation
The FlipX Standard comes with an easily viewable LED indicator in green so you are sure the sensor is turned on and working. It also comes with a 180 degree cover lock which can be easily removed to rotate the lens and change the detection area from wide to narrow.
Product Range
- FlipX Series
Model Code
- FLX-S-DT
Detection method
- Passive infrared & Microwave
Detection Coverage
- “Wide: 12 m (40 ft.) 85°/ Narrow: 18 m (60 ft.) 5° (No MW detection at “Narrow” setting)”
Power input
- 9.5 to 16 VDC
Current draw
- 11 mA (normal) 14 mA (max.) at 12 VDC
Alarm period
- 2.0 ± 0.5 s
Warm-up period
- Approx. 60 s (LED blinks)
Alarm output (R)
- N.C. 24 V DC 0.1 A max. (Resistive load)
Trouble output
- N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
Tamper output
- N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
LED indicator
- Green: [1] Warm-up [2] Alarm
Operation temperature
- -20℃ to +45℃ (-4°F to +113°F)
Relative humidity
- 95% RH max.
Installation Method (indoor/outdoor)
- Indoor
Mounting height
- 2.0 to 3.0 m (6’7″ to 9’8”)
Weight
- 105g (3.7 oz)
