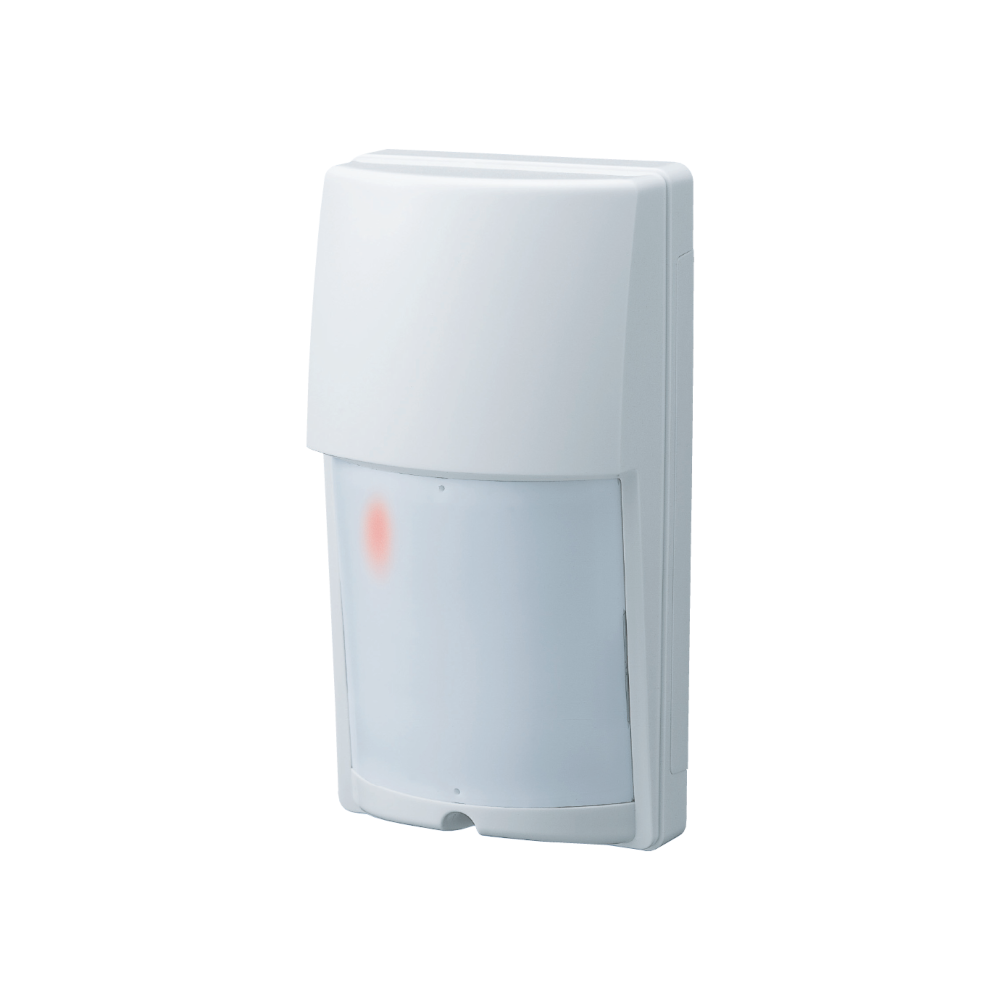

Optex LX-402
Optex LX-402 IP54-Rated Weatherproof Outdoor Hardwired IR Motion Detector – 120° Wide Angle Coverage With 12m x 15m Range
Optex LX-402 IP54-Rated Weatherproof Outdoor Hardwired IR Motion Detector – 120° Wide Angle Coverage With 12m x 15m Range
Key Features :-
- Double conductive shielding
- Range 12 x 15m, 120°
- Selectable detection patterns (pet alley or multi-level)
- Mounting height – see specification sheet
- Area-masking strips (LX-402 only)
- Sensitivity selection switch (high, mid and low)
- Selectable pulse count (test or 2)
- Day & night modes
Selectable Detection Patterns
The LX-402 is versatile and features two modes, the multi-level (standard)one or the “pet alley” mode that can be easily selected by sliding the printed circuit board and flipping the mirror. The pet alley mode provides a horizontal detection pattern allowing animals such as dogs and cats to move under it without triggering the alarm.
Easy Set-up
The LX-402 has been designed for an easy set-up. The wiring is made easy by two two wiring holes, the selection of the day/night mode is done via a simple button, and three sensitivity levels (low, medium , high) can be selected.
Model Code
- LX-402
Detection method
- Passive infrared
Detection Coverage
- 12 m x 15 m 120° wide
Detectable speed
- 0.3 m – 1.0 m/sec.
Sensitivity
- Selectable 3 position (High / Middle / Low)
Power input
- 10.8 – 13.2 VDC
Current draw
- 25 mA max.
Warm-up period
- Approx. 60 sec.
Alarm output (R)
- N.C. N.O. 28 VDC 0.2 A max.
LED indicator
- LED lights during detection
Operation temperature
- -20°C to +50°C
Relative humidity
- 95% max.
Installation Method (indoor/outdoor)
- Outdoor
Mounting height
- Multi-level area : 2.5 m max. Pet alley area : 1.2 m – 1.5 m
Weight
- 170g
Security Grade
- IP54
Dimensions
- 141 mm x 74.8 mm x 53.5 mm
