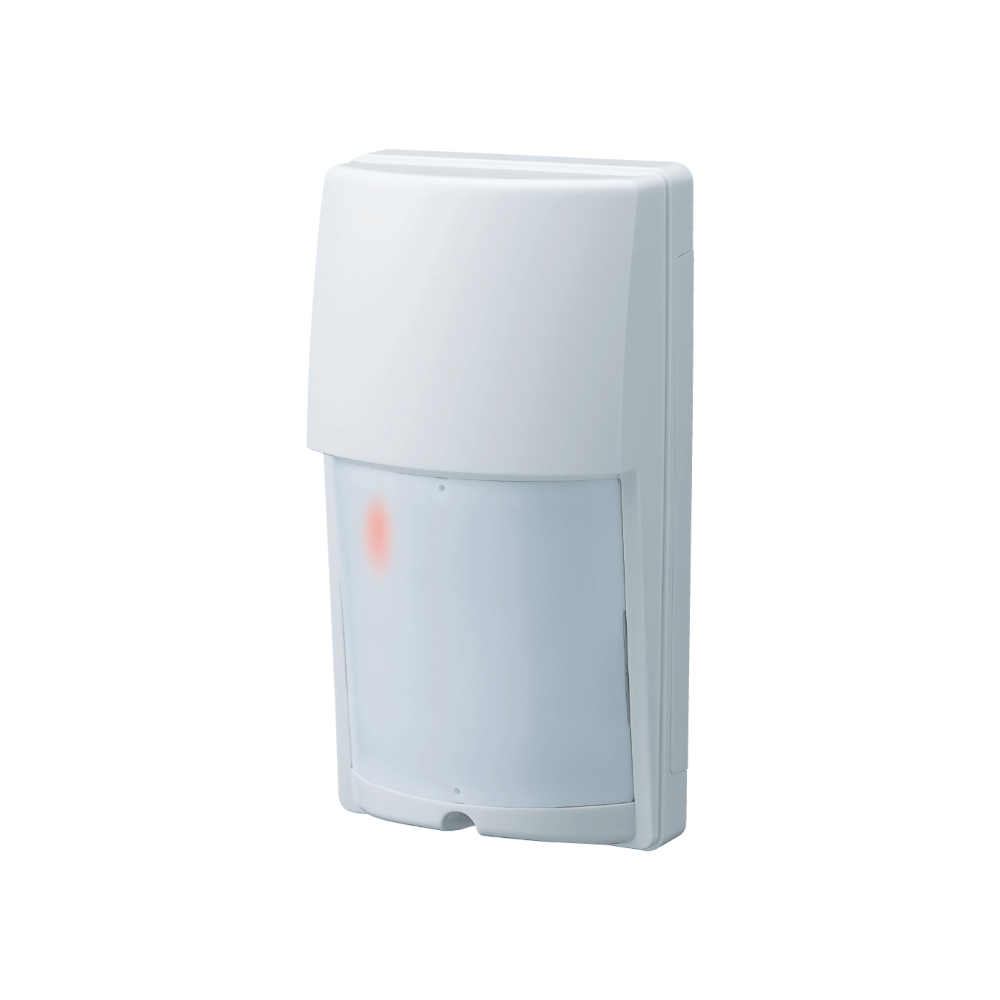

Optex LX-802N
Optex LX-802N IP54-Rated Weatherproof Outdoor Hardwired PIR Motion Detector – Curtain PIR – 24m x 2m Long Range With Narrow Angle
Optex LX-802N IP54-Rated Weatherproof Outdoor Hardwired PIR Motion Detector – Curtain PIR – 24m x 2m Long Range With Narrow Angle
Key Features :-
- Mounting Height / Multi-level area: 2.5m
- Mounting Height / Pet alley area: 1.2m -1.5m
- Beam spread: 24m x 2m
- Double conductive shielding
- Selectable detection patterns (pet alley or multi-level)
- Sensitivity selection switch (high, mid and low)
- Selectable pulse count (test or 2)
- Day & night modes
Selectable Detection Patterns
The Lx-802 includes the ability to adjust selectable detection patterns to best match the site layout. Multi-level or Pet Alley detection patterns can be selected by sliding the printed circuit board and flipping the mirror. Changing the vertical detection area allows the detector to match the site conditions.
Easy Set-up
The LX-802 has two wiring holes, allowing smooth wiring with one wire per hole, and enabling easy installation. In addition to the simplified wiring process, use of the supplied weatherproof sponge makes for tighter sealing than with conventional products.
Model Code
- LX-802N
Detection method
- Passive infrared
Detection Coverage
- 24 m x 2 m long range
Detectable speed
- 0.3 m – 1.0 m/sec.
Sensitivity
- Selectable 3 position (High / Middle / Low)
Power input
- 10.8 – 13.2 VDC
Current draw
- 25 mA max.
Warm-up period
- Approx. 60 sec.
Alarm output (R)
- N.C. N.O. 28 VDC 0.2 A max.
LED indicator
- LED lights during detection
Operation temperature
- -20°C to +50°C
Relative humidity
- 95% max.
Installation Method (indoor/outdoor)
- Outdoor
Mounting height
- Multi-level area : 2.5 m max. Pet alley area : 1.2 m – 1.5 m
Weight
- 190g
Security Grade
- IP54
Dimensions
- 141 mm x 74.8 mm x 57.5 mm
