Raysharp RS-CH240N4NM-HLDF-LFWA0550PW

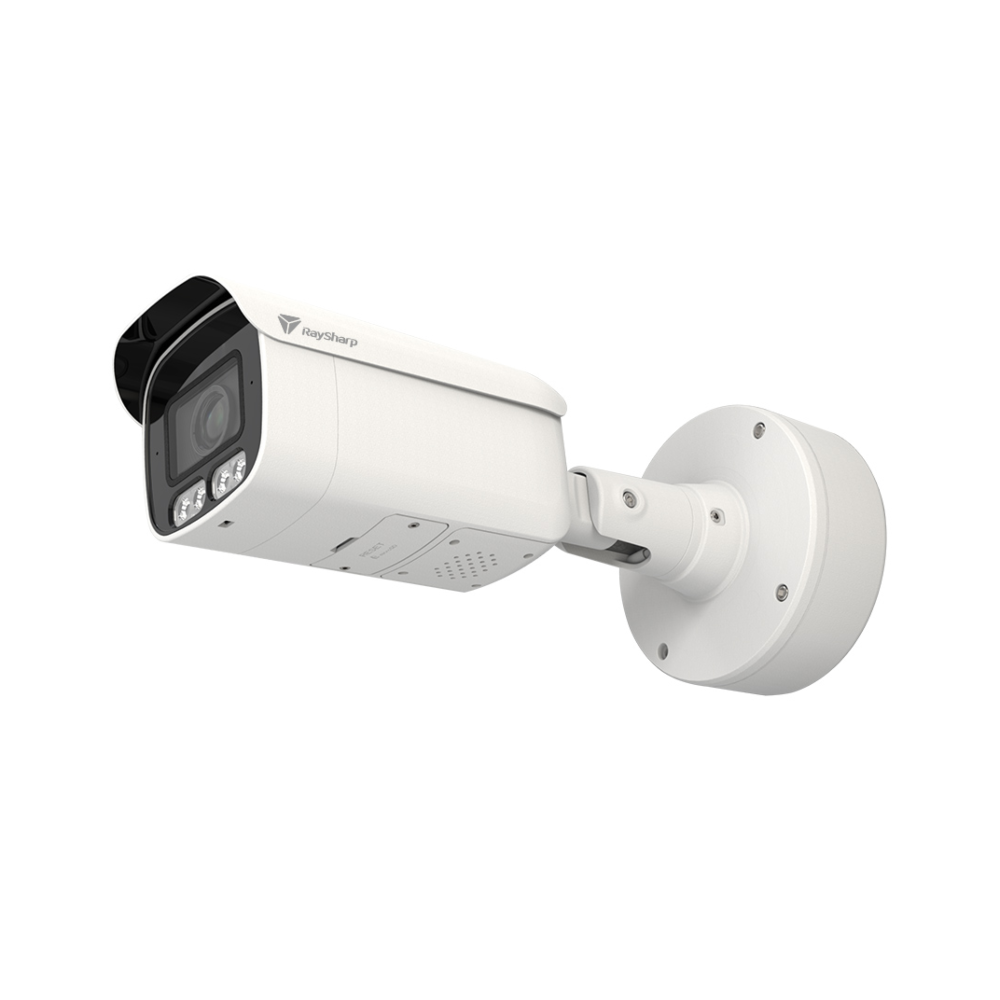

Raysharp RS-CH240N4NM-HLDF-LFWA0550PW Pro series H265 4K 8MP PoE IP Dual-Light (80m IR + 30m White-Light) 120dB True-WDR Weatherproof LPR Bullet Camera with 5~50mm Motorized Zoom Lens – Built-in Mic
SKU: RS-CH240N4NM-HLDF-LFWA0550PW
Categories: CCTV / Surveillance, IP ANPR LPR Cameras, IP Bullet Cameras, IP Cameras, IP Surveillance
Tags: 10x Optical Zoom Lens, 4K, 8MP, Built-in Mic, Bullet, Camera, H265, IP, IR, License Plate Recognition, LPR, NDAA, Network, PoE, Pro Series, Raysharp, Smart Dual Light, Varifocal Motorized Zoom Lens, Weatherproof, White Light LED
Raysharp RS-CH240N4NM-HLDF-LFWA0550PW Pro series H265 4K 8MP PoE IP Dual-Light (80m IR + 30m White-Light) 120dB True-WDR Weatherproof LPR Bullet Camera with 5~50mm Motorized Zoom Lens – Built-in Mic
Key Features :-
- Imaging Device: 1/2.8″
- Effective Pixels: 8MP – 3840 (H) × 2160 (V)
- Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
- Min. Object Distance: 1.5m
- Lens Type: Ø16.7 / F1.2
- IR LED: 4pcs
- WarmLight: 4pcs
- IR Viewable Length: Up to 80m
- WarmLight Viewable Length: Up to 30m
- Wide Dynamic Range: WDR
- Image Setting: Full Color Mode / Day & Night Mode / Smart Illumination
- Smart Feature: Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting
- Ingress Protection: IP67 / IK10
- Operating Conditions: -35～+60°C / less than ≤ 95% RH
- Input Voltage / Current: DC12V / PoE (IEEE802.3af)
- Supports ONVIF (Profile S, G, T)
| Model name | RS-CH256N4NM-HLDF-LFWA0550PW | RS-CH256N4NM-HLDF-LFWA2812PW | RS-CH240N4NM-HLDF-LFWA2812PW |
| Imaging Device | 1/2.7″ | 1/2.7″ | 1/2.8″ |
| Effective Pixels | 5MP 2880（H）x1620（V） | 5MP 2880（H）x1620（V） | 8MP 3840(H)×2160(V) |
| Min. Illumination | Color 0.004lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON | Color 0.002lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON | Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| Focal Length (Zoom Ratio)/Max. Aperture Ratio | F No. 2.0±5% | 2.8-12 mm/F No. 1.2 | |
| Angular Field of View | Horizontal: 51-7°, Vertical: 27-4°, Diagonal: 60-8° | Horizontal:113(W)-35(T)° Vertical：59(W)-20(T)° Diagonal：138(W)-41(T)° | Horizontal:113(W)-36(T)°, Vertical:59(W)-20(T)°, Diagonal:139(W)-41(T)° |
| Min. Object Distance | 0.2m~∞ | 1.5m | |
| Lens Type | Ø14/5 ~ 50 mm | Ø16.7/F1.2 | |
| IR LED | 8PCS | 4pcs | |
| WarmLight | 4PCS | 4pcs | |
| Red Blue Light | NA | NA | |
| IR Viewable Length | UP TO 80M | UP TO 35m | |
| WarmLight Viewable Length | UP TO 30m | UP TO 30m | |
| Wide Dynamic Range | WDR | WDR | |
| Image Setting | Full Color Mode/Day&Night Mode/Smart Illumination | Full Color Mode/Day&Night Mode/Smart Illumination | |
| White Balance | Auto/Manual | ||
| Electronic Shutter Speed | 1/5 ~ 1/20000s | ||
| On-Board Storage | Micro SD slot, up to 256GB | ||
| Alarm | 1 input，1 output | ||
| Audio | 1 input，1 output，1 Built-in microphone | ||
| Hardware Reset | yes | ||
| Smart Feature | Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion,Region Entrance,Region Exiting |
||
| Ethernet | RJ45(10/100BASE-T) | ||
| Video Compression Format | H.265/H.264/H.265+/H.264+/MJPEG | ||
| Max.Resolution | 5MP(2880×1620)@30fps | 5MP(2880×1620)@30fps | 8MP(3840*2160)@30fps |
| Video Quality Ajustment | 256Kbps ~ 8Mbps | 256Kbps ~ 8Mbps | 256Kbps ~ 16Mbps |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
||
| Application Programming Interface | ONVIF( Profile S/G/T) | ||
| Operating Conditions | -35～+60°C/less than ≤ 95% RH | ||
| Ingress Protection | IP67/IK10 | ||
| Input Voltage / Current | DC12V/PoE(IEEE802.3af) | DC12V ：max 8.7W； POE（48V): max 11.1W |
DC12V/PoE(IEEE802.3af) |
| Mechanical | Metal | ||
