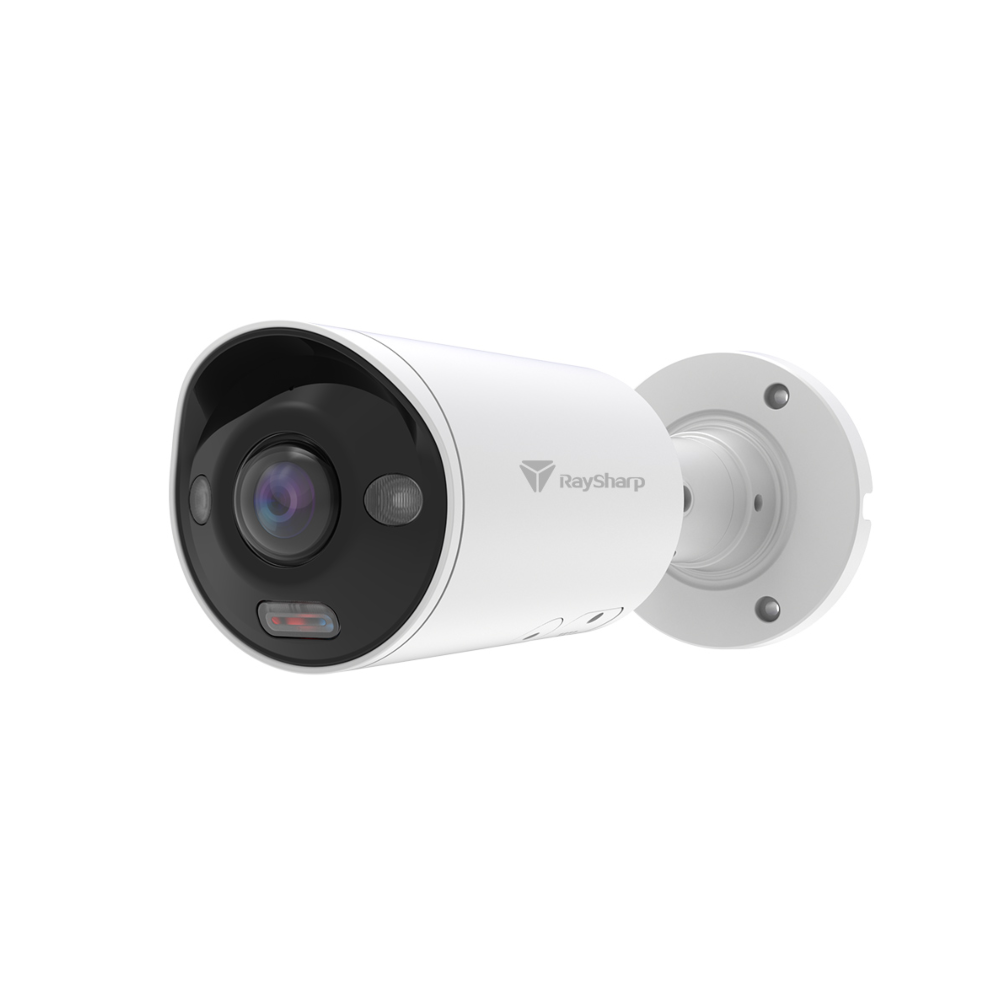

Raysharp RS-CH240N4TUA-HALTF-W20PW

Name: Raysharp RS-CH240N4TUA-HALTF-W20PW
SKU: RS-CH240N4TUA-HALTF-W20PW

Raysharp RS-CH240N4TUA-HALTF-W20PW Pro-series 4K 8MP PoE IP Dual-Light (30m IR + 25m White-Light) Full-Colour 120dB True-WDR Weatherproof Bullet Camera – 180° Ultra-Wide-Angle – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features

SKU: RS-CH240N4TUA-HALTF-W20PW Categories: CCTV / Surveillance, Clearance, IP 180-Degree Panoramic Fisheye Cameras, IP Bullet Cameras, IP Cameras, IP Surveillance, Special Offers Tags: 120dB True-WDR, 180 Degree, 2-Way Audio, 4K, 8MP, Active Deterrence, Built-in Mic, Bullet, Camera, Full Colour, H265, Human Detection, IP, IP67 Rated, IR, NDAA, Network, PoE, Pro Series, Raysharp, Smart Dual Light, Speaker, Vehicle Detection, Weatherproof, White Light LED

Key Features :-

Imaging Device: 1/2.8″
Effective Pixels: 8MP 3840 (H) ×2160 (V)
Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
Lens Type: 2.0 mm
Angular Field of View: Horizontal: 180°；Vertical ：92°；Diagonal：180°
IR LED: 2
Warm-White-Light: 2
IR Viewable Length / Warm-White-Light Viewable Length: Up to 30m / Up to 25m
Audio: 2-Way -> Built-in Mic + Speaker
Alarm: Built-in red & blue flashing lights
Wide Dynamic Range: WDR
Image Setting: Full Color Mode / Day & Night Mode / Schedule
Smart Feature: PID, LCD, PD / VD, SOD, CC, Heat MAP, RSD
Ingress Protection: IP67
Operating Conditions: -35～+60°C / less than ≤ 95% RH
Supports ONVIF (Profile S, G, T)

Model name	RS-CH240N4TUA-HALTF-W20PW
Video
Imaging Device	1/2.8″
Effective Pixels	8MP 3840(H)×2160(V)
Scanning System	Progressive CMOS
Min. Illumination	Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Lens Type
Focal Length (Zoom Ratio)	2.0 mm
Max. Aperture Ratio	F No. 2.4
Angular Field of View	Horizontal: 180°；Vertical ：92°；Diagonal：180°
Lens Type	M12
Operational
IR LED	2
WarmLight	2
IR Viewable Length	Up to 30m
WarmLight Viewable Length	Up to 25m
Type of complementary light	Default warm light, switchable infrared light
Backlight Compensation	Off/On (5 Zone)
Wide Dynamic Range	Yes
Digital Noise Reduction	3D DNR
Motion Detection	Off/On (8 Level)
Image Setting	Full Color Mode/Day&Night Mode/Schedule
Privacy Masking	Off/On (4 Zone, Rectangle)
Gain Control	Auto
White Balance	Auto/Manual
Electronic Shutter Speed	1/5 ~ 1/20000s
On-Board Storage	Micro SD slot, up to 256GB
Alarm	Built-in red & bule flashing lights
Audio	Built-in microphone，speaker
Hardware Reset	Yes
Smart Feature	PID,LCD,PD/VD,SOD,CC,Heat MAP,RSD
Network
Ethernet	RJ45(10/100BASE-T)
Video Compression Format	H.265/H.264
Resolution	Main Stream 8MP(3840×2160),5MP(2592×1944,3072×1728), 4MP(2592×1520),3MP(2304×1296),1080P(1920×1080), 960P(1280*960),720P(1280×720), Sub Steam 720P(1280×720),VGA(640×480),QVGA(320×240) Mobile Stream VGA(640×480), QVGA（320×240）
Video Quality Ajustment	256Kbps ~ 16Mbps
Bitrate control method	CBR/VBR
Streaming Capability	Triple-Stream(Main/Sub/Mobile)
IP	IPv6
Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security	IP address filter;complicated password;Authenticated username and password
Streaming Method	Unicast/Multicast
Application Programming Interface	ONVIF( Profile S/G/T)
Web Viewer	IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above
Environmental
Operating Conditions	-35～+60°C/less than ≤ 95% RH
Ingress Protection	IP67
Electrical
Input Voltage / Current	D12V/POE(IEEE802.3af)
Mechanical
Material	Metal
