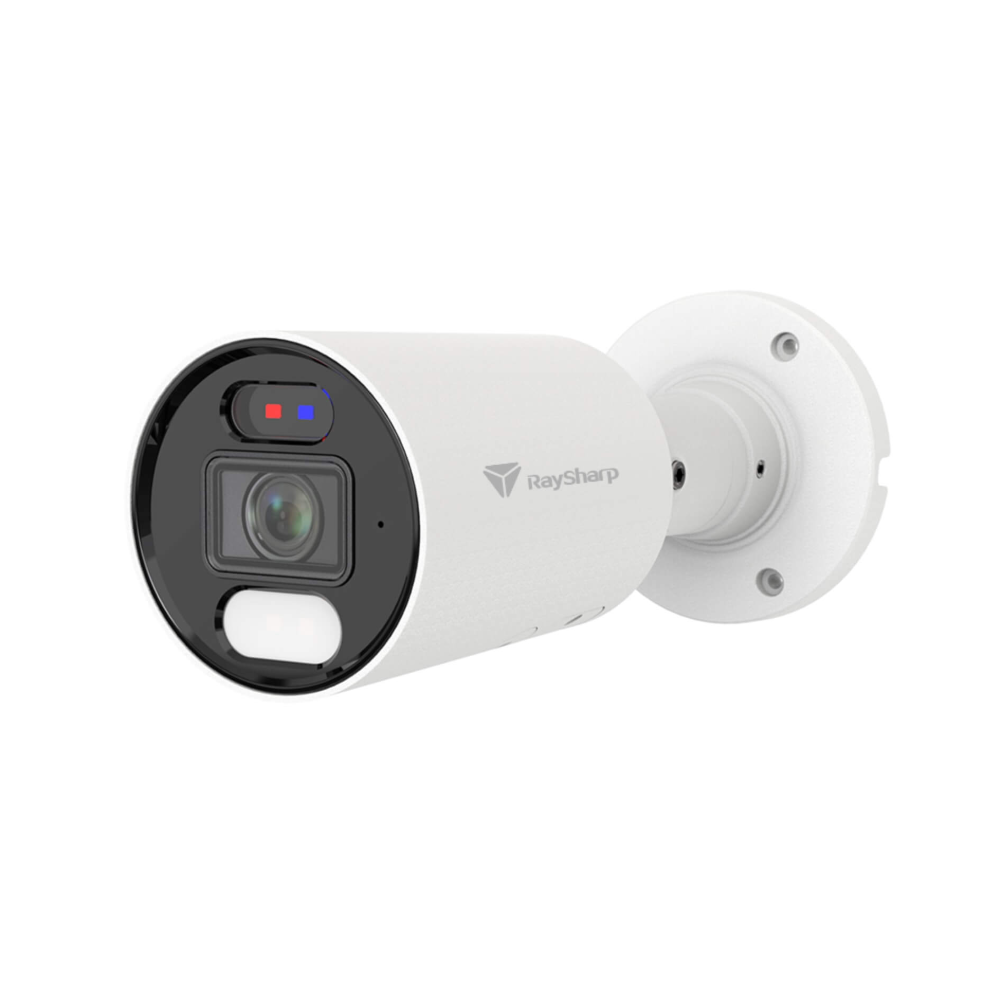

Raysharp RS-CH241A4TV-HALDF-LFWA0310PW

Name: Raysharp RS-CH241A4TV-HALDF-LFWA0310PW
SKU: RS-CH241A4TV-HALDF-LFWA0310PW

Raysharp RS-CH241A4TV-HALDF-LFWA0310PW Pro AI Full-Color Varifocal series H265 4K 8MP PoE IP Full-Colour (30m White-Light) Ultra-Low-Light 120dB True-WDR Weatherproof Bullet Camera with 3~10mm Motorized Zoom Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features

SKU: RS-CH241A4TV-HALDF-LFWA0310PW Categories: CCTV / Surveillance, IP Bullet Cameras, IP Cameras, IP Surveillance Tags: 120dB True-WDR, 2-Way Audio, 4K, 5x Optical Zoom Lens, 8MP, Active Deterrence, AI, Artificial Intelligence, Built-in Mic, Bullet, Camera, Full Colour, H265, IP, IP67 Rated, IR, NDAA, Network, PoE, Pro Series, Raysharp, Varifocal Motorized Zoom Lens, Weatherproof, White Light LED

Key Features :-

Imaging Device: 1/1.8″
Effective Pixels: 8MP – 3840 (H) × 2160 (V)
Min. Illumination: Color 0.007 lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
Lens Type: Ø16.7 / F1.2
Focal Length /Max. Aperture Ratio: 3-10mm @ F1.2
Angular Field of View: Horizontal: 105°(W) – 56°(T), Vertical: 54°(W) – 32°(T), Diagonal: 131°(W) – 65°(T）
Audio: 2-Way – Built-in microphone & Speaker
Alarm: Red & Blue flashing lights
Wide Dynamic Range: WDR
Image Setting: Full Color Mode / Day & Night Mode / Smart Illumination
Smart Feature: Face Recognition, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting
Ingress Protection: IP67
Operating Conditions: -35～+60°C / less than ≤ 95% RH
Input Voltage / Current: DC12V / PoE (IEEE802.3af)
Supports ONVIF (Profile S, G, T)

Model name	RS-CH240N4NK-HALDF-LFW2812PW
Video
Imaging Device	1/2.8″
Effective Pixels	8MP 3840(H)×2160(V)
Scanning System	Progressive CMOS
Min. Illumination	Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Lens Type
Focal Length (Zoom Ratio)	2.8-12mm
Max. Aperture Ratio	F No. 1.2
Angular Field of View	H:107(W)-34(T)° V：56(W)-19(T)° D：129(W)-39(T)°
Min. Object Distance	1.5m
Lens Type	Ø16.7
Operational
IR LED	4
WarmLight	4
Red Blue Light	2（1 Red&1 Blue）
IR Viewable Length	Up to 30m
WarmLight Viewable Length	Up to 25m
Type of complementary light	Default warm light, switchable infrared light
Motion Detection	Off/On (8 Level)
Wide Dynamic Range	WDR
Digital Noise Reduction	3D DNR
Image Setting	Full Color Mode/Day&Night Mode/Smart IIIumination
White Balance	Auto/Manual
Electronic Shutter Speed	1/5 ~ 1/20000s
On-Board Storage	Micro SD slot, up to 256GB
Alarm	NA
Audio	Built-in microphone&Speaker
Custom Voice	Yes
Hardware Reset	Yes
Smart Feature	Face Recognition, Pedestrian & Vehicle , Perimeter Intrusion , Line Crossing , Object Detection, Crossing Counting, Heat Map, Crowd Density , Queue Length , License Plate ，Rare Sound， Intrusion，Region Entrance，Region Exiting
Network
Ethernet	RJ45(10/100BASE-T)
Video Compression Format	H.265/H.264
Resolution	Main Stream @30fps 8MP(3840×2160),5MP(2592×1944,3072×1728), 4MP(2592×1520),3MP(2304×1296),1080P(1920×1080), 960P(1280*960),720P(1280×720), Sub Steam @30fps 720P(1280×720),VGA(640×480),QVGA(320×240) Mobile Stream @30fps VGA(640×480), QVGA（320×240）
Video Quality Ajustment	256Kbps ~ 16Mbps
Bitrate control method	CBR/VBR
IP	IPv6
Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security	IP address filter;complicated password;Authenticated username and password
Application Programming Interface	ONVIF( Profile S/G/T)
Web Viewer	IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above
Environmental
Operating Conditions	-35～+60°C/less than ≤ 90% RH
Ingress Protection	IP67
Electrical
Input Voltage / Current	D12V/POE(IEEE802.3af)
Power Consumption	DC12V ：max 8.9W； POE（48V): max 10.7W
Mechanical
Material	Metal
