Raysharp RS-CH340N4MLG-HALTF-W20PW

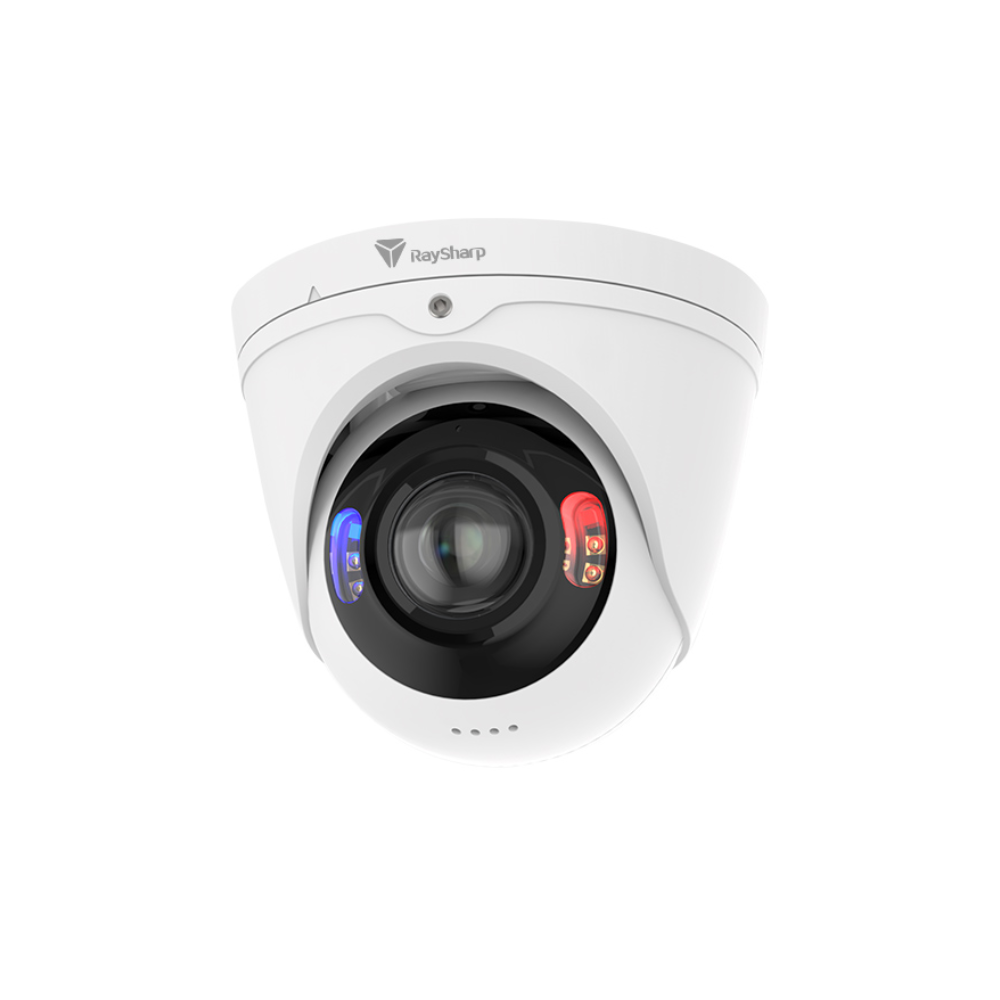

Raysharp RS-CH340N4MLG-HALTF-W20PW Pro-series 4K 8MP PoE IP Dual-Light (25m IR + 15m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera – 180° Ultra-Wide-Angle – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
SKU: RS-CH340N4MLG-HALTF-W20PW
Categories: CCTV / Surveillance, Clearance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance, IP Turret Cameras, Special Offers
Tags: 120dB True-WDR, 180 Degree, 2-Way Audio, 4K, 8MP, Active Deterrence, Built-in Mic, Camera, Eyeball, Full Colour, H265, Human Detection, IP, IP67 Rated, IR, NDAA, Network, PoE, Pro Series, Raysharp, Smart Dual Light, Speaker, Turret, Vehicle Detection, Weatherproof, White Light LED
Raysharp RS-CH340N4MLG-HALTF-W20PW Pro-series 4K 8MP PoE IP Dual-Light (25m IR + 15m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera – 180° Ultra-Wide-Angle – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
Key Features :-
- Imaging Device: 1/2.8″
- Effective Pixels: 8MP – 3840 (H) × 2160 (V)
- Min. Illumination: Color 0.007 lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
- Lens Type: 2.0 mm
- Angular Field of View: Horizontal: 180°; Vertical: 92°; Diagonal: 180°
- IR LED: 2
- Warm-White-Light: 2
- IR Viewable Length / Warm Light Viewable Length: Up to 25m / Up to 15m
- Alarm: Built-in red & blue flashing lights
- Audio: 2-way -> built-in Mic + Speaker
- Wide Dynamic Range: WDR
- Image Setting: Full Color Mode / Day & Night Mode / Schedule
- Smart Feature: PID, LCD, PD / VD, SOD, CC, Heat MAP, RSD
- Ingress Protection: IP67
- Operating Conditions:-35～+60°C / less than ≤ 95% RH
- Supports ONVIF (Profile S, G, T)
| Model name | RS-CH340N4MLG-HALTF-W20PW |
| Video | |
| Imaging Device | 1/2.8″ |
| Effective Pixels | 8MP – 3840 (H) × 2160 (V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.0 mm |
| Max. Aperture Ratio | F No. 2.4 |
| Angular Field of View | Horizontal: 180°；Vertical ：92°；Diagonal：180° |
| Lens Type | M12 |
| Operational | |
| IR LED | 2 |
| WarmLight | 2 |
| IR Viewable Length | Up to 25m |
| WarmLight Viewable Length | Up to 15m |
| Type of complementary light | Default warm light, switchable infrared light |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | Yes |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Image Setting | Full Color Mode / Day & Night Mode / Schedule |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | Built-in red & bule flashing lights |
| Audio | Built-in microphone, speaker |
| Hardware Reset | Yes |
| Smart Feature | PID, LCD, PD/VD, SOD, CC, Heat MAP, RSD |
| Network | |
| Ethernet | RJ45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 |
| Resolution | Main Stream 8MP (3840×2160), 5MP (2592×1944,3072×1728), 4MP (2592×1520), 3MP (2304×1296), 1080P (1920×1080), 960P (1280*960), 720P (1280×720), Sub Steam 720P (1280×720), VGA (640×480), QVGA(320×240) Mobile Stream VGA (640×480), QVGA (320×240） |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| Streaming Capability | Triple-Stream(Main/Sub/Mobile) |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | IP address filter; complicated password; Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Application Programming Interface | ONVIF ( Profile S/G/T) |
| Web Viewer | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Environmental | |
| Operating Conditions | -35～+60°C/less than ≤ 95% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V / POE (IEEE802.3af) |
| Mechanical | |
| Material | Metal |
