Raysharp RS-CH346N6DSE-HL-LW28PW

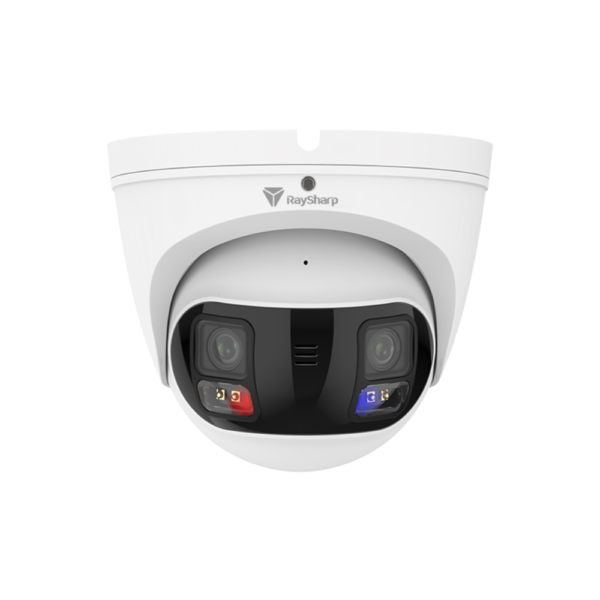

Raysharp RS-CH346N6DSE-HL-LW28PW Pro-series 4K 8MP PoE IP Dual-Light (25m IR + 15m White-Light) Dual-Sensor Splicing Full-Colour Weatherproof Eyeball Turret Camera – 180° Ultra-Wide-Angle – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
SKU: RS-CH346N6DSE-HL-LW28PW
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Face Recognition Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 180 Degree, 2-Way Audio, 4K, 8MP, Active Deterrence, Built-in Mic, Camera, Eyeball, Face Recognition, Full Colour, H265, Human Detection, IP, IP67 Rated, IR, Network, PoE, Pro Series, Raysharp, Speaker, Turret, Vehicle Detection, Weatherproof, White Light LED
Raysharp RS-CH346N6DSE-HL-LW28PW Pro-series 4K 8MP PoE IP Dual-Light (30m IR + 15m White-Light) Dual-Sensor Splicing Full-Colour Weatherproof Eyeball Turret Camera – 180° Ultra-Wide-Angle – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
Key Features :-
- Imaging Device: 1/2.7″ Progressive Scan CMOS * 2
- Effective Pixels: 8MP – 5120*1440
- Min. Illumination: Color 0.001lux @ F1.6 (AGC ON) ; B/W 0 lux @ IR ON
- Lens Type: 2.0 mm
- Angular Field of View: Horizontal: 180°
- IR LED: 2
- WarmLight: 2
- IR Viewable Length / WarmLight Viewable Length: Up to 30m / Up to 15m
- Wide Dynamic Range: DWDR
- Image Setting: Full Color Mode / Day & Night Mode / Schedule
- Smart Event: Face Recogniton, Pedestrian & Vehicle Detection, Line Crossing, Object Detection, CrossCounting, Heat Map, Crowd Density, Queue Length, License Plate Recognition, Intrusion, Region Entrance, Region Exiting
- Audio: Built-in Mic
- Alarm: Built-in Red & Blue flashing lights
- Ingress Protection: IP67
- Operating Conditions: -35～+60°C / less than ≤ 95% RH
- Supports ONVIF (Profile S, G, T)
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS *2 |
| Max. Resolution | 5120*1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/5 s to 1/20000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | NA |
| Lens | |
| Focal Length | 2.8 mm Fixed |
| FOV | Horizontal field of view: 180° |
| Aperture | F1.0 |
| Illuminator | |
| Supplement Light Range | IR Distance: Up to 30m /Warm light: up to 15m |
| Supplement Light Type | IR & Warm light |
| Video | |
| Main Stream | 60/50Hz@15fps;5120×1440; 4608×1296;4096×1152;3840×1080;3072×864 |
| Sub-Stream | 60/50Hz@15fps;1536×432;1024×288 |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 |
| Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG | |
| Video Bit Rate | 8 kbps to 16384kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region Of Interest (ROI) | YES |
| Audio | |
| Audio Compression | G.711a/G.711u |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, |
| API | Onvif ( Profile S, Profile G, Profile T),Http API |
| Simultaneous | Live View Up to 15 channels |
| User/Host | 7 User |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings |
| Client | VMS |
| Web Browser | IE11, Chrome 57+, Firefox 52+, Safari 11+ |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | DWDR |
| Image Settings | Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser |
| Privacy | 4 privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Alarm | Built-in red & bule flashing lights |
| Audio | 1 built-in MIC |
| Reset | Yes |
| Built-In Speaker | 1 built-in speaker |
| Event | |
| Basic Event | Motion detection |
| Deep Learning Function | Face Recogniton，Pedestrian&Vehicle Detection，Line Crossing， Object Detection，CrossCounting， Heat Map, Crowd Density ,Queue Length, License Plate Recognition, Intrusion,Region Entrance, Region Exiting |
| General | |
| Power | DC 12V/PoE, max.13.49W |
| Operating Condition | -30 °C to 60 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Material | Metal |
| Dimension | Ø 135 mm × 112.4 mm (Ø 5.3″ × 4.4″) |
| Approval | |
| Protection | IP67 |
