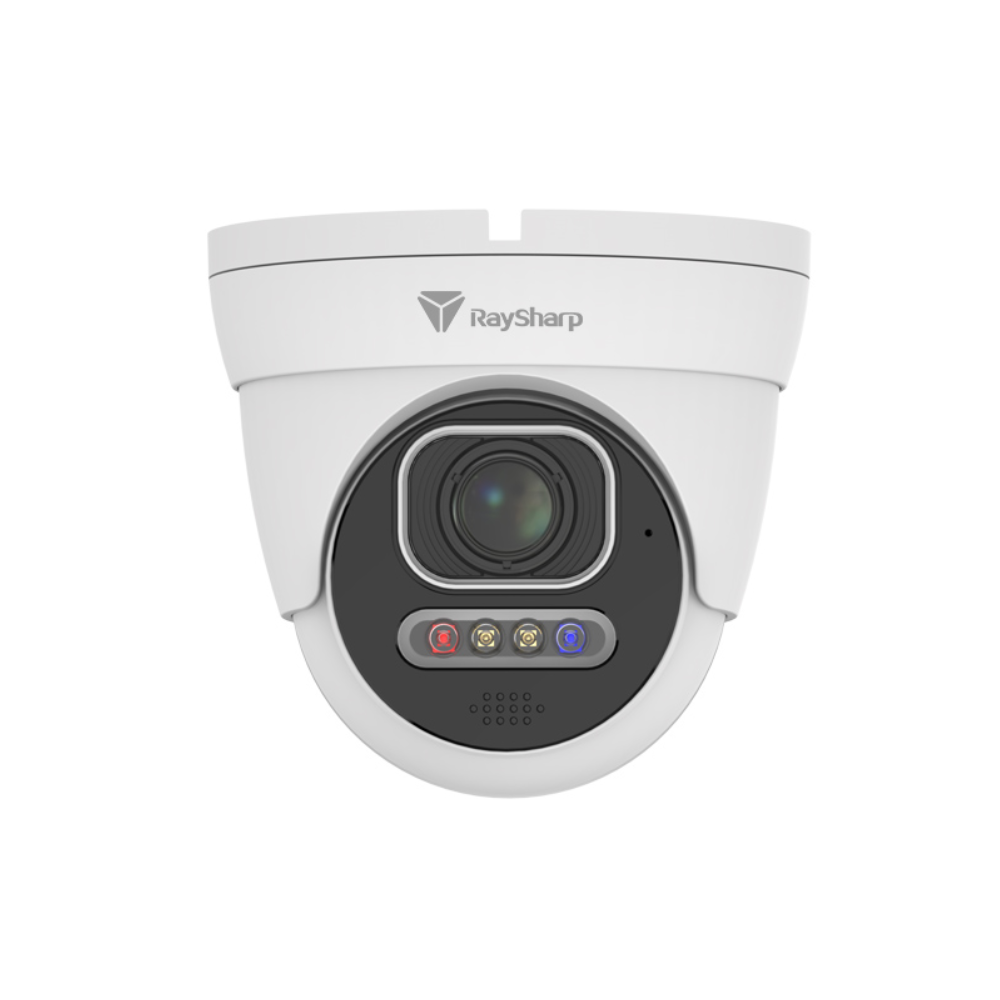

Raysharp RS-CH356M4MHA-HALDF-LFW2812PW
Raysharp RS-CH356M4MHA-HALDF-LFW2812PW AI Lite Varifocal Series H265 5MP PoE IP Dual-Light (30m IR + 25m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8~12mm Motorized Zoom Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
SKU: RS-CH356M4MHA-HALDF-LFW2812PW
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras, Special Offers, Weekly Specials
Tags: 120dB True-WDR, 2-Way Audio, 4x Optical Zoom Lens, 5MP, Active Deterrence, Built-in Mic, Camera, Eyeball, Face Detection, Full Colour, H265, Human Detection, IP, IP67 Rated, IR, NDAA, Network, PoE, Raysharp, Smart Dual Light, Speaker, Turret, Varifocal Motorized Zoom Lens, Vehicle Detection, Weatherproof, White Light LED
Raysharp RS-CH356M4MHA-HALDF-LFW2812PW AI Lite Varifocal Series H265 5MP PoE IP Dual-Light (30m IR + 25m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8~12mm Motorized Zoom Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
Key Features :-
- Imaging Device: 1/2.7″
- Effective Pixels: 5MP -> 2880 (H) x 1620 (V）
- Min. Illumination: Color 0.002lux @ F1.2 (AGC ON) ; B/W 0 lux @ IR ON
- Lens Type: Ø16.7 / F1.2
- Focal Length: 2.8mm~12mm
- IR Viewable Length: Up to 30m
- Warm-Light Viewable Length: Up to 25m
- Audio: 2-Way – Built-in microphone & Speaker
- Alarm: Red & Blue flashing lights
- Image Setting: Full Color Mode / Day & Night Mode / Smart Illumination
- Smart Feature: Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound,
Intrusion, Region Entrance, Region Exiting - Video Quality Adjustment: 256Kbps ~ 16Mbps
- Operating Conditions: -30～+60°C ≤ 90% RH
- Ingress Protection: IP67
- Supports ONVIF (Profile S, G, T)
| Model name | RS-CH356M4MHA-HALDF-FLW2812PW | RS-CH348MHA-HALDF-FLW2812PW |
| Imaging Device | 1/2.7″ | |
| Effective Pixels | 5MP 2880（H）x1620（V） | 8MP 3840(H)×2160(V) |
| Min. Illumination | Color 0.002Lux @(F1.2,AGC ON); B/W 0 lux @ IR ON | Color 0.007lux @ F1.0(AGC ON); B/W 0 lux @ IR ON |
| Lens Type | Ø16.7/F1.2 | |
| Focal Length (Zoom Ratio) | 2.8-12mm | |
| Max. Aperture Ratio | F No. 1.2 | |
| Min. Object Distance | 1.5m | |
| Angular Field of View | Horizontal:113（W）-35（T）° Vertical: 59（W）-20（T）° Diagonal:138（W）-41（T）° |
Horizontal:113（W）-36（T）° Vertical: 59（W）-20（T）° Diagonal:139（W）-41（T） |
| IR LED /WarmLight | 2-2 | |
| Red Blue Light | 2（1 Red&1 Blue） | |
| IR Viewable Length/WarmLight Viewable Length | Up to 30m/Up to 25m | |
| Wide Dynamic Range | WDR | DWDR |
| Image Setting | Full Color Mode/Day&Night Mode/Smart Illumination | |
| White Balance | Auto/Manual | |
| Electronic Shutter Speed | 1/5 ~ 1/20000s | |
| On-Board Storage | Micro SD slot, up to 256GB | |
| Audio | Built-in microphone&Speaker | |
| Hardware Reset | Yes | |
| Smart Feature | Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting |
Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound, Intrusion, Region Entrance, Region Exiting |
| Ethernet | RJ45(10/100BASE-T) | |
| Video Compression Format | H.265/H.265+/H.264/H.264+/MJPEG | |
| Max.Resolution | 5MP(2880×1620)@30fps | 8MP(3840×2160)@30fps |
| Video Quality Ajustment | 256Kbps ~ 8Mbps | 256Kbps ~ 16Mbps |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
|
| Application Programming Interface | ONVIF( Profile S/G/T) | |
| Operating Conditions | -35～+60°C ≤ 90% RH | |
| Ingress Protection | IP67 | |
| Input Voltage / Current | DC12V: max 6.5W, PoE: max 8.1W | DC12V: max 7.8W, PoE: max 9.1W |
| Mechanical | Metal | |
