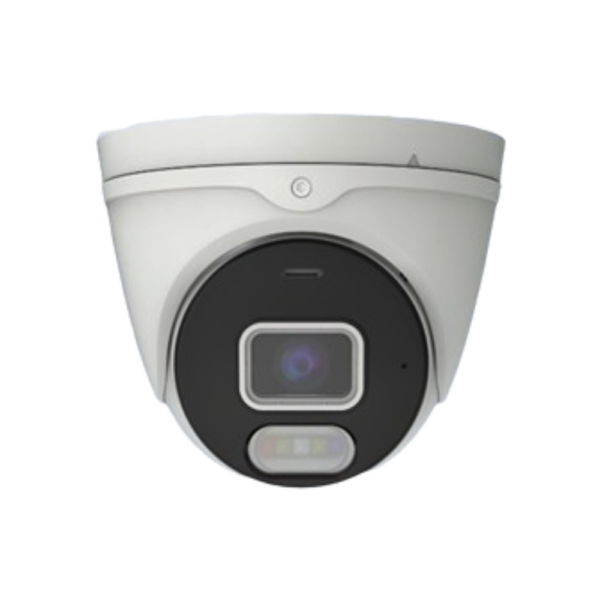

Raysharp RS-CH356M4MJG-HALTF-LFW28PW
Raysharp RS-CH356M4MJG-HALTF-LFW28PW AI Lite Fixed Series H265 5MP PoE IP Smart-Dual-Light (25m IR + 20m White-Light) Full-Colour Low-Light 120dB True-WDR Weatherproof Eyeball network Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
SKU: RS-CH356M4MJG-HALTF-LFW28PW
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 2-Way Audio, 5MP, Active Deterrence, Built-in Mic, Camera, Eyeball, Face Detection, Full Colour, H265, Human Detection, IP, IP67 Rated, IR, NDAA, Network, PoE, Raysharp, Smart Dual Light, Speaker, Turret, Vehicle Detection, Weatherproof, White Light LED
Raysharp RS-CH356M4MJG-HALTF-LFW28PW AI Lite Fixed Series H265 5MP PoE IP Smart-Dual-Light (25m IR + 20m White-Light) Full-Colour Low-Light 120dB True-WDR Weatherproof Eyeball network Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
Key Features :-
- Imaging Device: 1/2.7″
- Effective Pixels: 5MP -> 2880 (H) x 1620 (V）
- Min. Illumination: Color 0.002lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
- Lens Type: Fixed (M12 / F1.0)
- Focal Length: 2.8 mm
- Angular Field of View: Horizontal:110° , Vertical:58°, Diagonal: 132°
- IR Viewable Length: Up to 25m
- Warm-Light Viewable Length: Up to 20m
- Audio: 2-way – Built-in microphone & Speaker
- Alarm: Red & Blue flashing lights
- Image Setting: Full Color Mode / Day & Night Mode / Smart Illumination
- Smart Feature: Face Detection, Pedestrian & Vehicle Detection, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound, Intrusion, Region Entrance, Region Exiting
- Video Quality Adjustment: 256Kbps ~ 16Mbps
- Operating Conditions: -30～+60°C ≤ 90% RH
- Ingress Protection: IP67
- Supports ONVIF (Profile S, G, T)
| Model name | RS-CH356M4KEB-HALTF-LF36PW | RS-CH348M7KEB-HALTF-LF36PW |
| Imaging Device | 1/2.7″ | |
| Effective Pixels | 5MP 2880（H）x1620（V） | 8MP 3840(H)×2160(V) |
| Scanning System | Progressive CMOS | |
| Min. Illumination | Color 0.002lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| Focal Length (Zoom Ratio) | 2.8mm | |
| Max. Aperture Ratio | F No. 1.0 | |
| Angular Field of View | Horizontal:110° , Vertical:58°, Diagonal: 132° | Horizontal:110° , Vertical:58°, Diagonal: 131° |
| Min. Object Distance | 2m | |
| Lens Type | Fixed(M12) | |
| IR LED | 1 | |
| WarmLight | 2 | |
| Red Blue Light | 2（1 Red&1 Blue） | |
| IR Viewable Length | Up to 25m | |
| WarmLight Viewable Length | Up to 20m | |
| Type of complementary light | Default warm light, switchable infrared light | |
| Motion Detection | Off/On (8 Level) | |
| Wide Dynamic Range | WDR | DWDR |
| Digital Noise Reduction | 3D DNR | |
| Image Setting | Full Color Mode/Day&Night Mode/Smart Illumination | |
| White Balance | Auto/Manual | |
| Electronic Shutter Speed | 1/5 ~ 1/20000s | |
| On-Board Storage | Micro SD slot, up to 256GB | |
| Alarm | NA | |
| Audio | Built-in microphone&Speaker | |
| Custom Voice | Yes | |
| Hardware Reset | Yes | |
| Smart Feature | Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting |
Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound, Intrusion, Region Entrance, Region Exiting |
| Ethernet | RJ45(10/100BASE-T) | |
| Video Compression Format | H.265/H.265+/H.264/H.264+/MJPEG | |
| Resolution | Mainstream@30fps 5MP(2880×1620),4MP(2592×1520) 3MP(2304×1296),1080P(1920×1080) 720P(1280×720) Substeam@30fps 720P(1280×720),VGA(640×480), QVGA(320×240) Mobilestream@30fps VGA(640×480), QVGA（320×240） |
Mainstream@20fps 8MP(3840×2160), 5MP(2592×1944,3072×1728), 4MP(2592×1520), 3MP(2304×1296),1080P(1920×1080), 960P(1280*960),720P(1280×720) Substeam@20fps 720P(1280×720),VGA(640×480), QVGA(320×240) Mobilestream@20fps VGA(640×480), QVGA（320×240） |
| Video Quality Ajustment | 256Kbps ~ 8Mbps | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR | |
| IP | IPv6 | |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
|
| Security | IP address filter;complicated password;Authenticated username and password | |
| Application Programming Interface | ONVIF( Profile S/G/T) | |
| Web Viewer | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
|
| Operating Conditions | -35～+60°C/less than ≤ 90% RH | |
| Ingress Protection | IP67 | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) | |
| Power Consumption | DC12V: max.5.8w, PoE: max.7.1w | DC12V: max.5.9w, PoE: max.7.1w |
| Material | Metal | |
