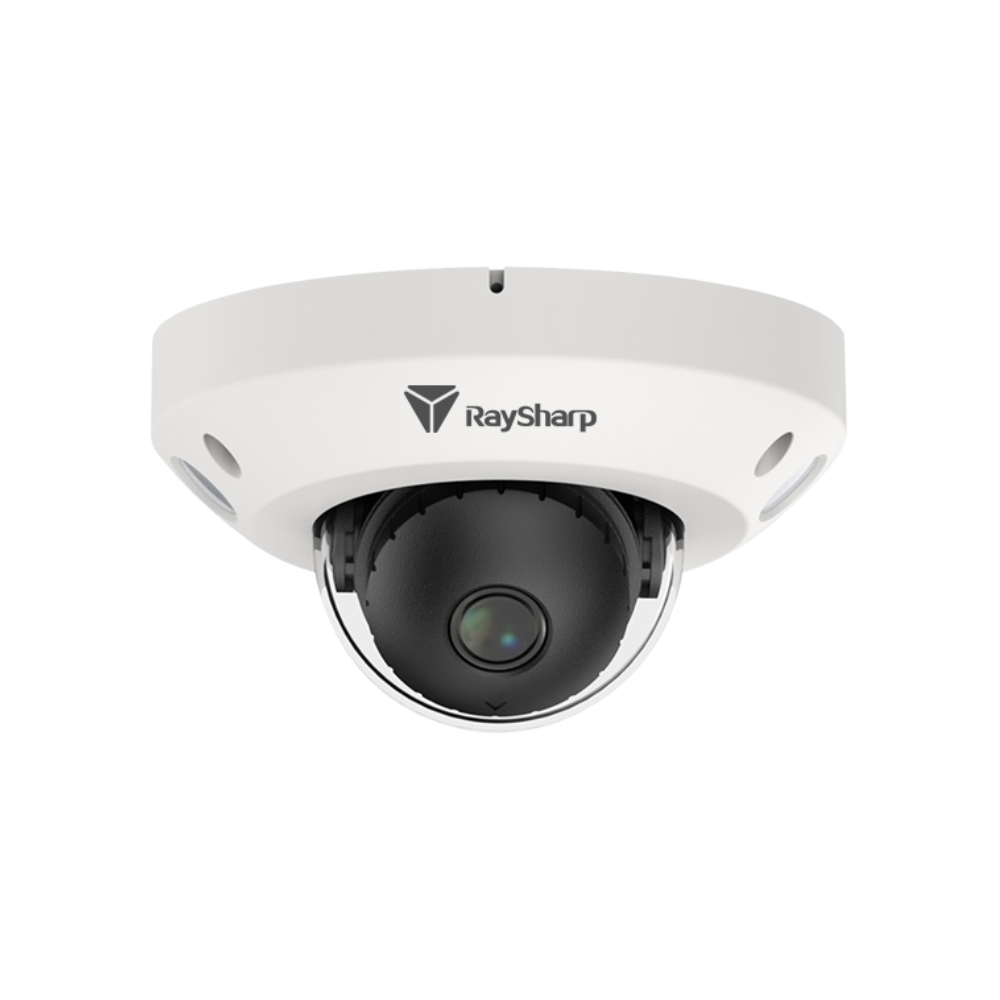

Raysharp RS-CH456M4CB-LW28PW-M
Raysharp RS-CH456M4CB-LW28PW-M AI Lite Series H265 5MP PoE IP IR (20m) 120dB True-WDR Weatherproof Vandalproof Mini Dome (Wedge / Hockeypuck) Camera with 2.8mm Fixed Lens – Built-in Mic
SKU: RS-CH456M4CB-LW28PW-M
Categories: CCTV / Surveillance, IP Cameras, IP Dome Cameras, IP Surveillance
Tags: 120dB True-WDR, 5MP, AI, Camera, Dome Camera, Face Detection, Fixed Lens, H265, Hockeypuck, Human Detection, IP, IP67 Rated, IR, NDAA, Network, PoE, Raysharp, Vandalproof, Vehicle Detection, Weatherproof, Wedge
Raysharp RS-CH456M4CB-LW28PW-M AI Lite Series H265 5MP PoE IP IR (20m) 120dB True-WDR Weatherproof Vandalproof Mini Dome (Wedge / Hockeypuck) Camera with 2.8mm Fixed Lens – Built-in Mic
Key Features :-
- Imaging Device: 1/2.7″
- Effective Pixels: 5MP -> 2880 (H ) x 1620 (V）
- Min. Illumination: Color 0.004lux @ F1.6 (AGC ON) ; B/W 0 lux @ IR ON
- Focal Length (Zoom Ratio): 2.8mm
- Angular Field of View: Horizontal: 110°, Vertical: 58°, Diagonal: 133°
- Day & Night: IR cut filter with auto switch (Day/Night/Image/Schedule)
- Smart Feature: Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting
- Max.Resolution: 5MP (2880 x 1620) 30fps
- Ingress Protection: IP67, IK08
- Operating Conditions: -35～+60°C ≤ 95% RH
- Supports ONVIF (Profile S, G, T)
| Model name | RS-CH456M4CB-LW28PW-M |
| Video | |
| Imaging Device | 1/2.7″ |
| Effective Pixels | 5MP 2880（H）x1620（V） |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.004lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8mm |
| Max. Aperture Ratio | F No. 1.6 |
| Angular Field of View | Horizontal: 110°, Vertical: 58°, Diagonal: 133° |
| Min. Object Distance | 1.8M |
| Lens Type | Fixed(M12) |
| Operational | |
| IR Viewable Length | Up to 20m |
| Camera Title | On/Off |
| Day & Night | IR cut filter with auto switch（Day/Night/Schedule/Image Mode） |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | NA |
| Audio | Built-in microphone |
| Hardware Reset | Yes |
| Smart Feature | Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Max.Resolution | 5MP(2880×1620)30fps |
| Video Quality Ajustment | 256Kbps ~ 8Mbps |
| Bitrate control method | CBR/VBR |
| Streaming Capability | Triple-Stream(Main/Sub/Moile) |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Web browser | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Security | IP address filter;complicated password;Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Application Programming Interface | ONVIF( Profile S/G/T) |
| Environmental | |
| Operating Conditions | -35～+60°C/less than ≤ 95% RH |
| Electrical | |
| Power | PoE Max.4.0W |
| Protection | IP67, IK08 |
| Mechanical | |
| Material | Metal&Plastics |
| Dimensions (HxWxD) | 115*64mm |
| Weight | 276g |
