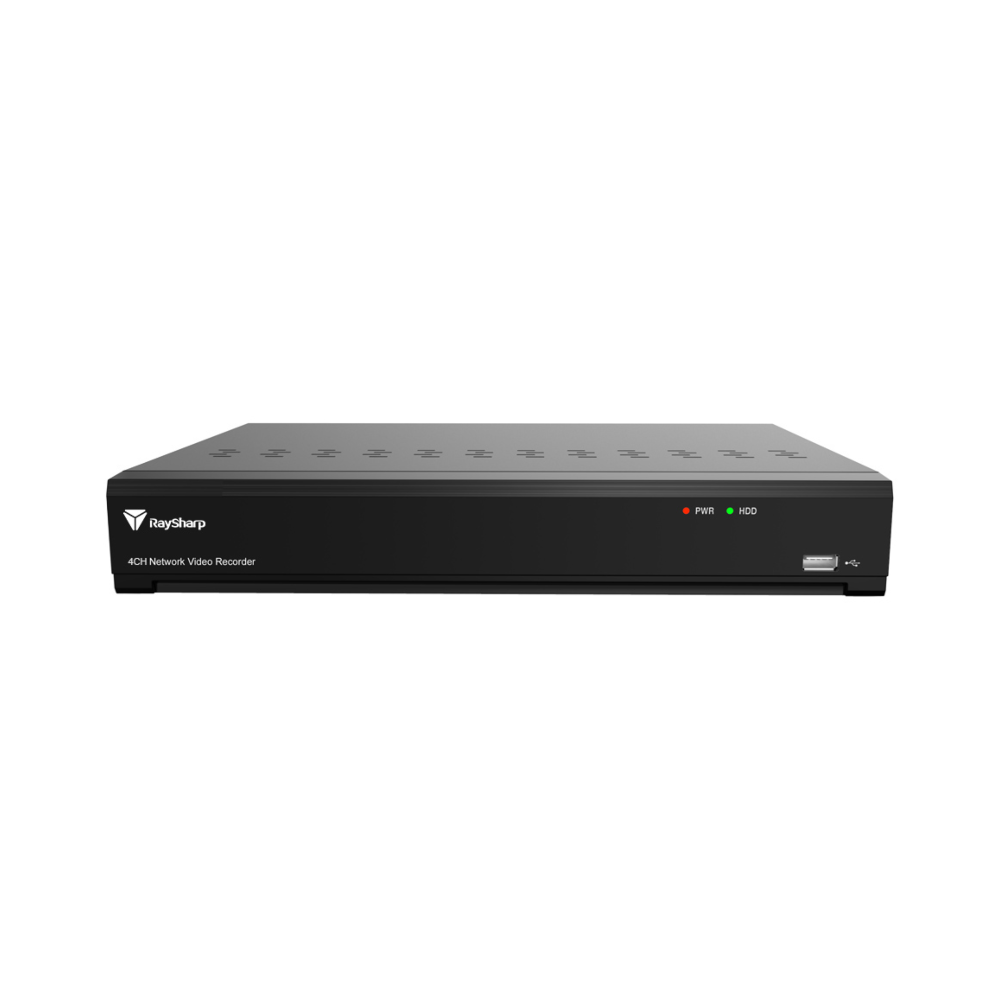

Raysharp RS-N2104HR-PR
Raysharp RS-N2104HR-PR Pro 4K PoE Series 1U 4K 4-Channel 4x PoE NVR – Supports AI Features – Alarm In/Out
SKU: RS-N2104HR-PR
Categories: CCTV / Surveillance, IP Surveillance, NVRs, Raysharp NVRs
Tags: 4-Channel, 4x PoE, AI, Artificial Intelligence, H265, Network Video Recorder, NVR, Pro Series, Raysharp
Raysharp RS-N2104HR-PR Pro 4K PoE Series 1U 4K 4-Channel 4x PoE NVR – Supports AI Features – Alarm In/Out
Key Features :-
- Video Resolution: 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / 720p
- Video Recording Bandwidth Inputs: 320M
- Video Recording Bandwidth out: 320M
- Frame rate: 12MP: 30fps; 4K: 120fps; 4MP: 240fps; 2MP: 480fps
- AI: Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection / Perimeter Intrusion Detection / Line Crossing Detection / Queue Legth Detection / License Plate Detection / Rare Sound Detection
- Playback: Max 4CH playback
- Alarm Input/out: 4 in /1 out
- PoE: 4* RJ45 100 Base-T 802.3at/af
- HDD: 1 SATA HDD, up to 12TB
- Operating Temperature / Humidity: Temperature : -10°C~+50°C (14°F ~ 122°F); Humidity : Less than 90%RH
- Supports ONVIF (Profile S, G, T)
| Model Name |
RS-N2104HR-PR | |
| Video | Resolution | 12MP/8MP/5MP/4MP/3MP/1080p/720p |
| Recording Bandwidth | Inputs | 320M |
| out | 320M | |
| Performance | ||
| Live/Playback | Compression | Audio: G.711a Video : H.264/H.265/H.264+/H.265+ |
| Frame rate | 12MP:30fps 4K:120fps 4MP:240fps 2MP:480fps |
|
| AI | yes | |
| Event | MD(Sensitivity Level 1~8) | |
| Videlo loss | ||
| Beep, Email, Push notification to Mobile APP |
||
| Playback function | Fast forward / backward (2x, 4x, 8x,16x) | |
| Slow forward (1/2x, 1/4x, 1/8x,1/16x) | ||
| Playback | Max 8CH playback | |
| Interface | ||
| P/W Reset | Factory Reset : Press 10 seconds | |
| Monitors | VGA | 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ） |
| HDMI | 1（1024*768,1280*720,1280*1024,1440*900, 1920*1080,2560*1440(2K),3840*2160(4K)） |
|
| Connections | PoE | 4*RJ45, 100 Base-T 802.3at/af |
| Ethernet | 2 RJ45 100/1000 Base-T | |
| USB | USB2.0*1(front) USB3.0*1+USB2.0*1(rear) |
|
| Audio out | 1 in / 1 out | |
| E-sata | 1 | |
| HDD | 1 SATA HDD， up to 12TB | |
| Line in | 1 | |
| RS485 | 1 | |
| Alarm Input/out | 4 in / 1 out | |
| General | ||
| OSD Language | English/French/Spanish/Portuguese/German/Italian/Greek/ Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic/Korean/ Japanese/Thai/Hindi/Romanian/Dutch/Polish |
|
| Mechanical design | Dimension (WxDxH) | 300*227*53mm |
| Electrical | Input Voltage/Current | 48V/1.2A |
| Power consumption (excluding hard disk) | 6W | |
| Environmental | Operating Temperature/Humidity | Temperature : -10°C~+50°C (14°F ~ 122°F) Humidity : Less than 90%RH |
