Raysharp RS-N2332QR-EHL-EP

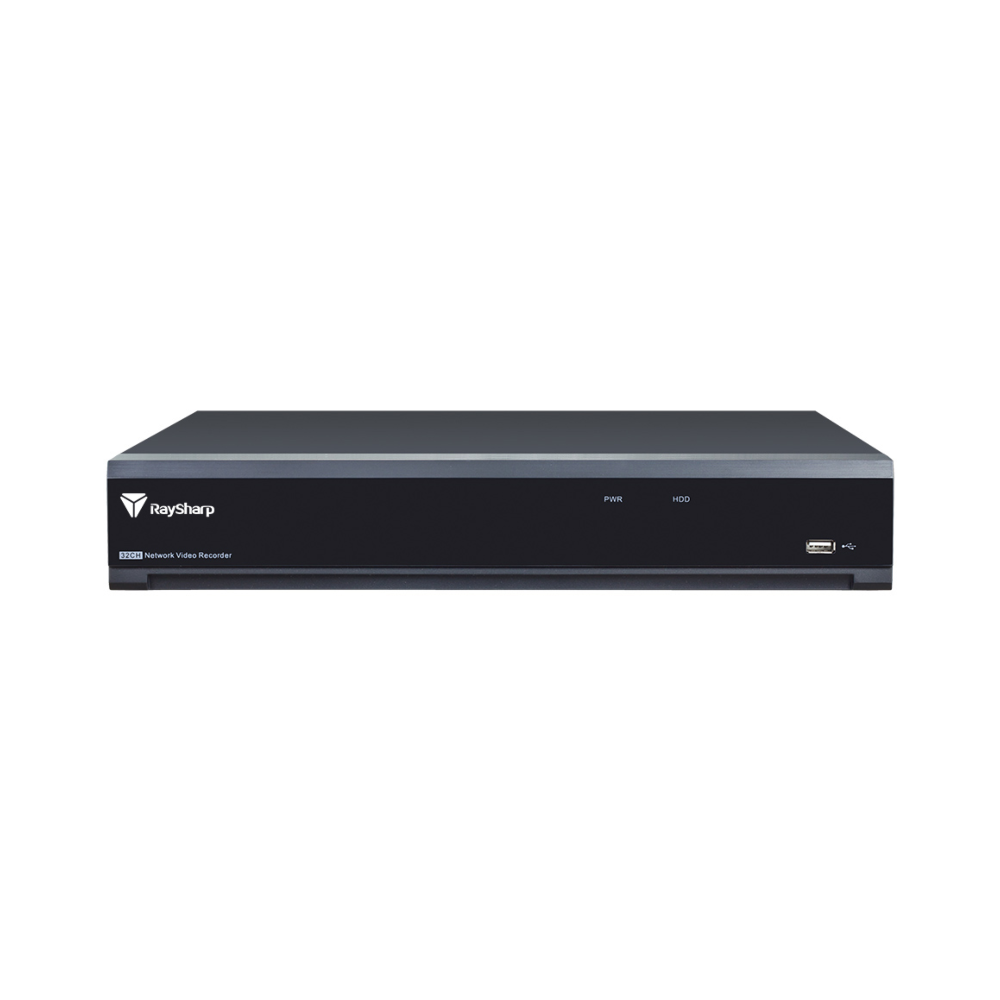

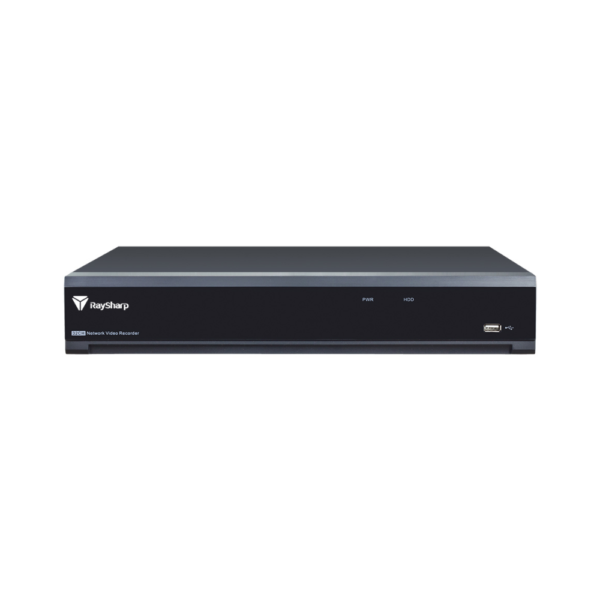

Raysharp RS-N2332QR-EHL-EP Pro 4K PoE Series 1.5U 4K 32-Channel 16x PoE NVR – Supports AI Features – Alarm In/Out
SKU: RS-N2332QR-EHL-EP
Categories: CCTV / Surveillance, IP Surveillance, NVRs, Raysharp NVRs
Tags: 16x PoE, 32-Channel, 4K, AI, Artificial Intelligence, H265, Network Video Recorder, NVR, Pro Series, Raysharp
Raysharp RS-N2332QR-EHL-EP Pro 4K PoE Series 1.5U 4K 32-Channel 16x PoE NVR – Supports AI Features – Alarm In/Out
Key Features :-
- Video Resolution: 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / 720p
- Video Recording Bandwidth Inputs: 320M
- Video Recording Bandwidth out: 320M
- Frame rate: 12MP: 30fps; 4K: 120fps; 4MP: 240fps; 2MP: 480fps
- AI: Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection / Perimeter Intrusion Detection / Line Crossing Detection / Queue Legth Detection / License Plate Detection / Rare Sound Detection
- Playback: Max 16CH playback
- Alarm Input/out: 16 in /1 out
- PoE: 16* RJ45 100 Base-T 802.3at/af
- HDD: 4* SATA HDD, each up to 12TB
- Operating Temperature / Humidity: Temperature : -10°C~+50°C (14°F ~ 122°F); Humidity : Less than 90%RH
- Supports ONVIF (Profile S, G, T)
| Model Name |
RS-N2332QR-EHL-EP | RS-N2316QR-EHL-EP | |
| Video | Resolution | 12MP/8MP/5MP/4MP/3MP/1080p/720p | |
| Recording Bandwidth | Inputs | 320M | |
| out | 320M | ||
| Performance | |||
| Live/Playback | Compression | Audio: G.711a Video : H.264/H.265/H.264+/H.265+ |
|
| Frame rate | 12MP:30fps 4K:120fps 4MP:240fps 2MP:480fps |
||
| AI | yes | ||
| Event | MD(Sensitivity Level 1~8) | ||
| Videlo loss | |||
| Beep, Email, Push notification to Mobile APP |
|||
| Playback function | Fast forward / backward (2x, 4x, 8x,16x) | ||
| Slow forward (1/2x, 1/4x, 1/8x,1/16x) | |||
| Playback | Max 16CH playback | ||
| Interface | |||
| P/W Reset | Factory Reset : Press 10 seconds | ||
| Monitors | VGA | 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ） | |
| HDMI 1 | 1（1024*768,1280*720,1280*1024,1440*900, 1920*1080,2560*1440(2K),3840*2160(4K)） |
||
| HDMI 2 | 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID） Async out |
||
| Connections | PoE | 16*RJ45, 100 Base-T 802.3at/af | |
| Ethernet | 2 RJ45 100/1000 Base-T | ||
| USB | USB2.0*1(front) USB3.0*1+USB2.0*1(rear) |
||
| Audio out | 1 in / 1 out | ||
| E-sata | 1 | ||
| HDD | 4SATA HDD ， up to 12TB | ||
| Line in | 1 | ||
| RS485 | 1 | ||
| Alarm Input/out | 16 in / 1 out | ||
| General | |||
| OSD Language | English/French/Spanish/Portuguese/German/Italian/Greek/ Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic/Korean/ Japanese/Thai/Hindi/Romanian/Dutch/Polish |
||
| Mechanical design | Dimension (WxDxH) | 378*325.8*66mm | |
| Electrical | Input Voltage/Current | 280W | |
| Power consumption (excluding hard disk) | 12W | ||
| Environmental | Operating Temperature/Humidity | Temperature : -10°C~+50°C (14°F ~ 122°F) Humidity : Less than 90%RH |
|
