Raysharp 5MP IP CCTV KIT 1
CCTV / Surveillance, IP CCTV Kits, IP Surveillance, Raysharp IP CCTV KIts
Raysharp RS5MPIPCCTVKIT1

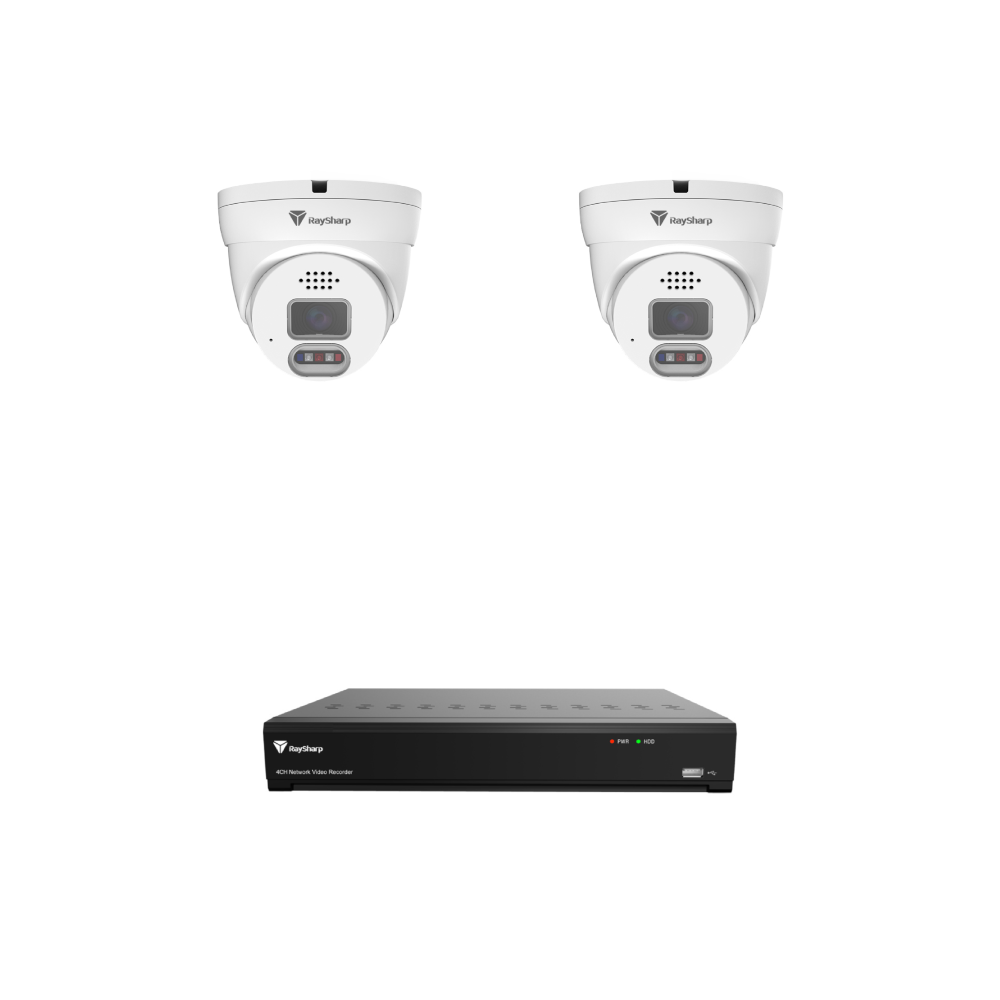

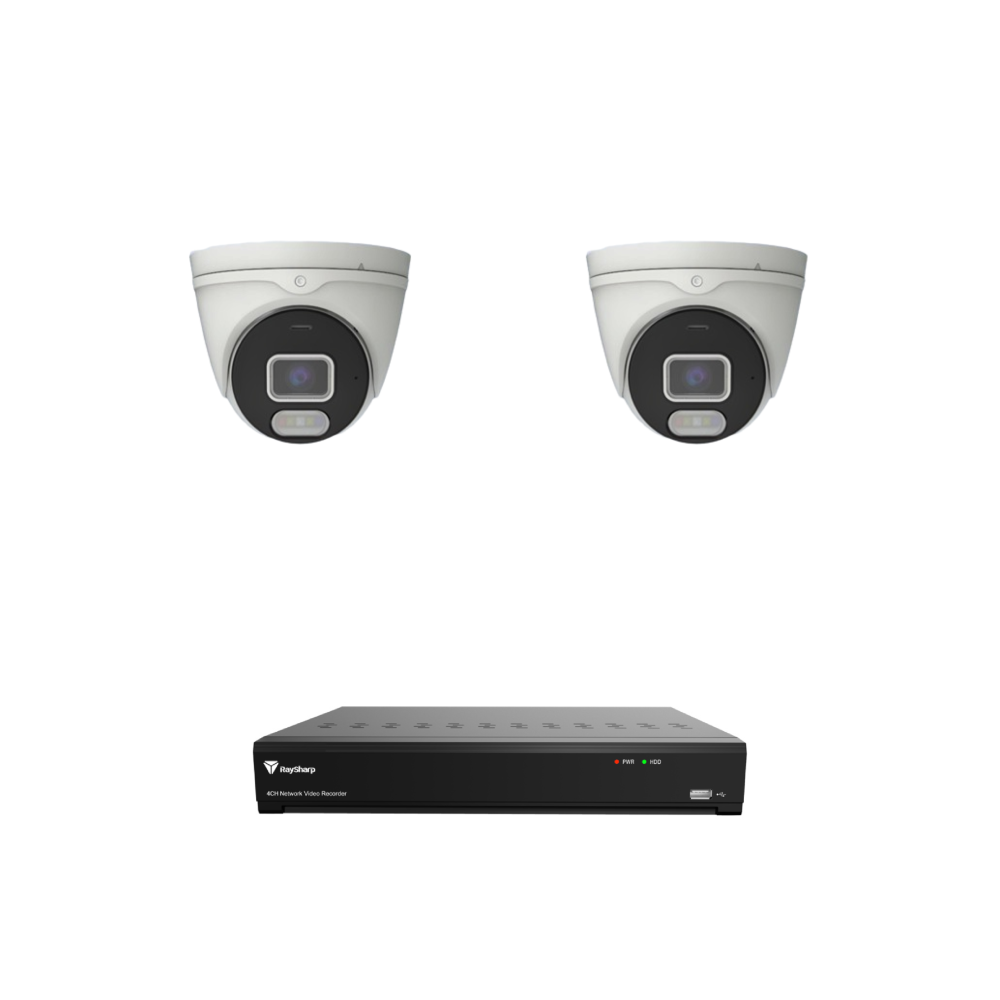

Raysharp RS5MPIPCCTVKIT1 5MP IP CCTV Kit # 1 with 1 * RS-N2104HR-PR 4-CH NVR (without HDD) + 2 * RS-CH356M4KEB-HALTF-LFW28PW 5MP All-in-One IP Turret Cameras
SKU: RS5MPIPCCTVKIT1
Categories: CCTV / Surveillance, IP CCTV Kits, IP Surveillance, Raysharp IP CCTV KIts
Tags: 2 Camera Kit, 2-Way Audio, 5MP, Active Deterrence, AI, CCTV, CCTV Kit, CCTV Package, IP, Network, Raysharp, Surveillance Kit
Raysharp RS5MPIPCCTVKIT1 5MP IP CCTV Kit # 1 with 1 * RS-N2104HR-PR 4-CH NVR (without HDD) + 2 * RS-CH356M4KEB-HALTF-LFW28PW 5MP All-in-One IP Turret Cameras
The Kit includes :-
- 1 * RS-N2104HR-PR 4K 4-Channel 4x PoE NVR (without HDD)
- 2 * RS-CH356M4KEB-HALTF-LFW28PW AI Lite Fixed Series H265 5MP PoE IP Dual-Light (25m IR + 20m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball network Camera with 2.8mm Fixed Lens – Built-in Mic + Speaker – 2-Way Audio – Active-Deterrence Features
NVR Features :-
- Video Resolution: 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / 720p
- Video Recording Bandwidth Inputs: 320M
- Video Recording Bandwidth out: 320M
- Frame rate: 12MP: 30fps; 4K: 120fps; 4MP: 240fps; 2MP: 480fps
- AI: Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection / Perimeter Intrusion Detection / Line Crossing Detection / Queue Legth Detection / License Plate Detection / Rare Sound Detection
- Playback: Max 4CH playback
- Alarm Input/out: 4 in /1 out
- PoE: 4* RJ45 100 Base-T 802.3at/af
- HDD: 1 SATA HDD, up to 12TB
- Operating Temperature / Humidity: Temperature : -10°C~+50°C (14°F ~ 122°F); Humidity : Less than 90%RH
- Supports ONVIF (Profile S, G, T)
Camera features :-
- Imaging Device: 1/2.7″
- Effective Pixels: 5MP -> 2880 (H) x 1620 (V）
- Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
- Lens Type: Fixed (M12 / F1.0)
- Focal Length: 2.8 mm
- Angular Field of View: Horizontal:110° , Vertical:58°, Diagonal: 131°
- IR Viewable Length: Up to 25m
- WarmLight Viewable Length: Up to 20m
- Audio: 2-way – Built-in microphone & Speaker
- Alarm: Red & Blue flashing lights
- Image Setting: Full Color Mode / Day & Night Mode / Smart Illumination
- Smart Feature: Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound,
Intrusion, Region Entrance, Region Exiting - Video Quality Ajustment: 256Kbps ~ 16Mbps
- Operating Conditions: -30～+60°C ≤ 90% RH
- Ingress Protection: IP67
- Supports ONVIF (Profile S, G, T)
