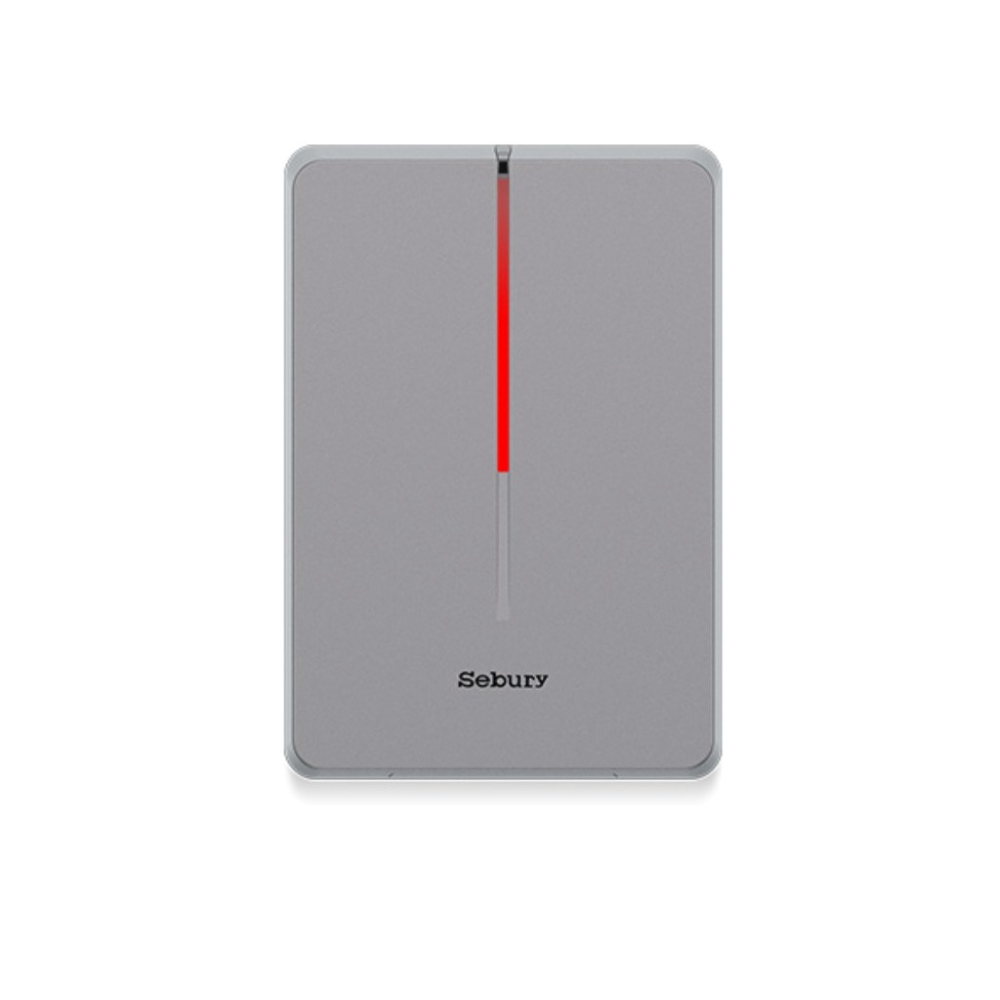

Sebury mReader-Max
Sebury mReader-Max Access Control Reader – Zinc Alloy Metal Casing – 12VDC Input – 125KHz and 13.56MHz Dual-Frequency – Supports EM, HID and IC Cards – IP65 Rated Weatherproof – Wiegand 26~37 Bits
Sebury mReader-Max Access Control Reader – Zinc Alloy Metal Casing – 12VDC Input – 125KHz and 13.56MHz Dual-Frequency – Supports EM, HID and IC Cards – IP65 Rated Weatherproof – Wiegand 26~37 Bits
Key Features :-
- Robust metal-case unit with durable and indestructible design
- Product model: mReader Max
- Product name: metal access control reader
- Adopts the non-electromagnetic shielding metal access control patent technology, patent NO.:CN210610015U
- Innovative All-metal Design, no antenna window
- Working temperature: – 20 ~ 50 ° C
- Card type EM/HID/IC
- 125KHz and 13.56Mhz Dual-band antenna, support to read EM/HID/MF/NFC cards
- Dimensions: 120mm X 83m X 22.5mm
- Fully Potted: IP68
Material: Zinc Alloy
Input Voltage：DC12V±10%
Idle Current：≤35mA
Card Reading Type：125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)
Reading Card Distance：125KHz: ≤5cm 13.56MHz: ≤2cm
Output Format: Wiegand 26-37 bit (default wiegand 26 bit, customized other format, HID card output wiegand 26-37 automatically.)
Working Temperature：-20~50° C
Working Humidity：0~95% (no condensation)
Product Dimension：120 * 83 * 22.5mm
