Sebury sTouch2
Sebury sTouch2 Standalone Access Control Touch Keypad with Integrated RFID Reader – Metal Casing – 12VDC ~ 24VDC Powered – 125KHz EM and 13.56MHz Mifare Dual-Frequency – Backlight – IP68 Rated Weatherproof
SKU: sTouch2
Categories: Access Control, Readers, Standalone
Tags: 125KHz, 13.56MHz, Access Control, Controller, IP68 Rated, Mifare, NFC, Outdoor, RFID, RFID Reader, Sebury, Standalone, Touch Keypad, Weatherproof, Wiegand
Sebury sTouch2 Standalone Access Control Touch Keypad with Integrated RFID Reader – Metal Casing – 12VDC ~ 24VDC Powered – 125KHz EM and 13.56MHz Mifare Dual-Frequency – Backlight – IP68 Rated Weatherproof
Key Features :-
- Metal structure, high strength wear-resistant reinforced glass panel, capacitive touch keypad

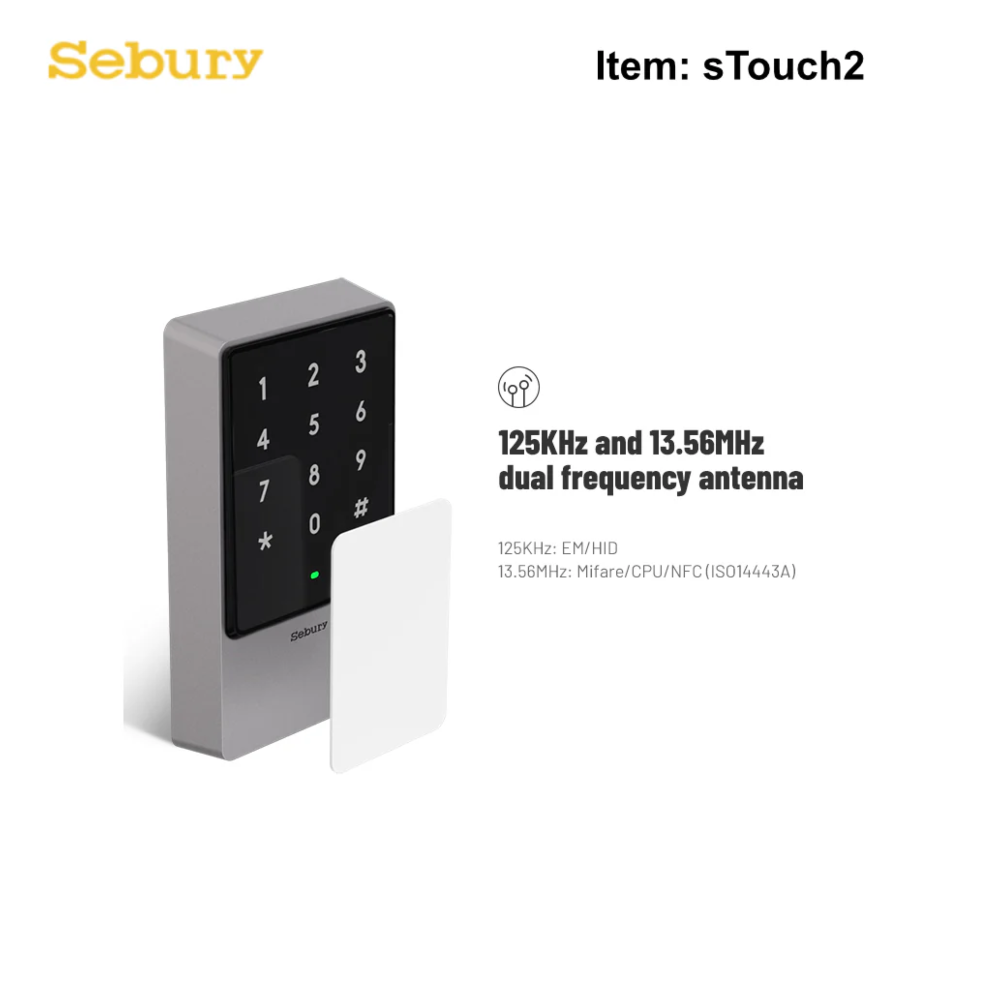

- 125KHz and 13.56MHz dual-band antenna, supports EM/HID/MF/NFC cards
- The backlight can be set to normal ON, normal OFF or automatic mode
- Standalone mode, anti-pass back mode: Wiegand input, external card reader can be connected
- Reader mode: Wiegand output, LED and Buzzer control input
- Fully potted process
- IP68-rated weatherproof
- Material: Zinc Alloy+ Reinforced Glass
- Input Voltage:DC12~24V
- Idle Current:≤50mA
- Card Reading Type:125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)
- Reading Card Distance:125KHz: ≤5cm 13.56MHz: ≤2cm
- Output Format:Card: wiegand 26-37 bit (HID card output wiegand 26-37 automatically.) Keypad: 4 bit, 8 bit, virtual card number
- Working Temperature:-20~60° C
- Working Humidity:0~95% (no condensation)
- Product Dimension:145 * 83 * 26mm
