Access Control, Readers, Standalone

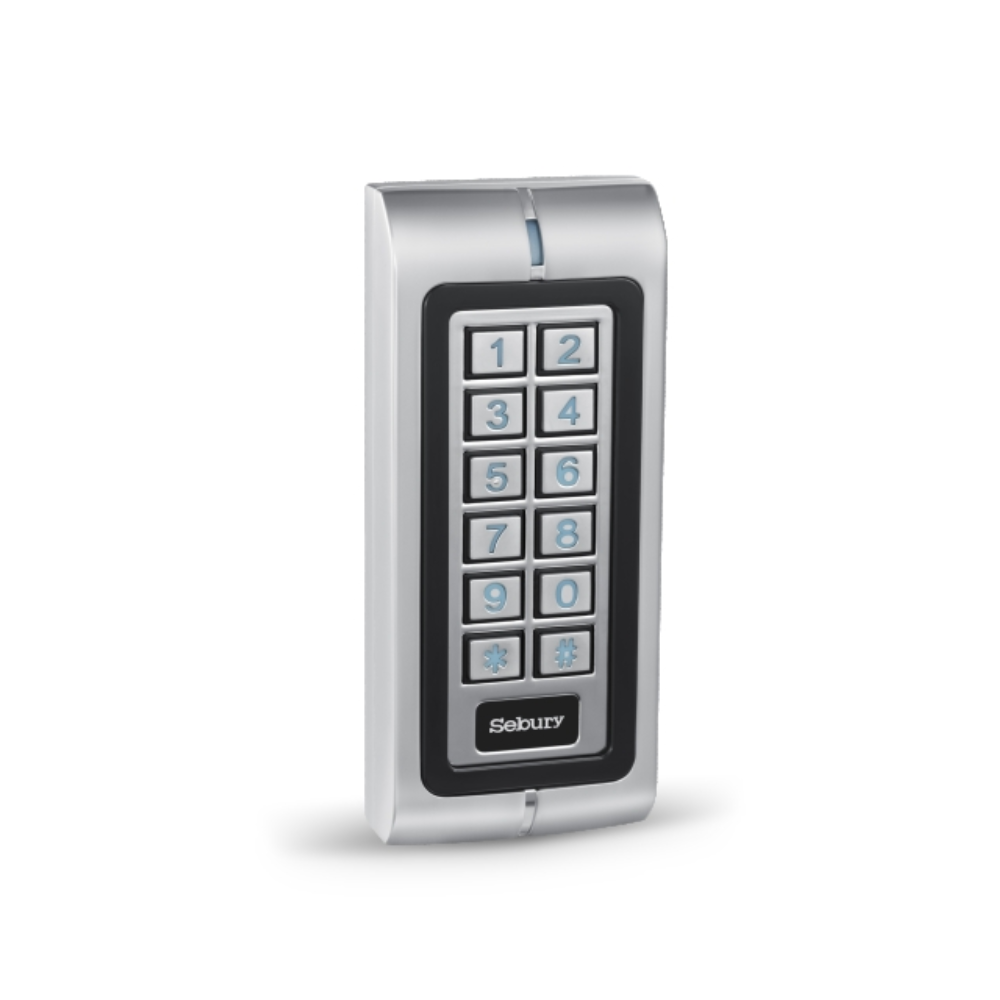

Sebury W1-A
Sebury W1-A Standalone Access Control Reader with Integrated Keypad (with Backlight) – 2 Door Control – Metal Casing – 12AC-18VAC / 12DC-24VDC Powered – 125KHz Frequency Reading – Supports EM Cards – IP65 Rated Weatherproof
SKU: W1-A
Categories: Access Control, Readers, Standalone
Tags: 125KHz, Access Control, Controller, IP65 Rated, Keypad, Outdoor, RFID, RFID Reader, Sebury, Standalone, Weatherproof
Sebury W1-A Standalone Access Control Reader with Integrated Keypad (with Backlight) – 2 Door Control – Metal Casing – 12AC-18VAC / 12DC-24VDC Powered – 125KHz Frequency Reading – Supports EM Cards – IP65 Rated Weatherproof
Key Features :-
- Robust metal-case unit with durable and indestructible design
- Protective properties: IP65 fully-potted.
- Backlight keypad.
- Two-relay operation.
- Pulse mode, toggle mode.
- Up to 1,200 users (Zone 1:1,100 users & Zone 2:100 users).
- Support 3 Modes Access: Card, PIN, Card + PIN.
- Card Type: 125KHz EM, PIN length: 4-8 digits.
- Operating Voltage: 12-18V AC/12-24V DC.
- Support door bell connection (Zone 2).
- Very low power consumption ( ≤35mA), long service life and stable performance.
- Application for High-Security Places: warehouses, banks, prisons, etc.
- High Speed Search: filled with 1,200 users, the search time < 0.1 seconds.
- With anti-disassemble alarm function, anti-static interference 15KV.
- Operating Voltage: 12-18V AC/12-24V DC
- Up to 1,200 users (Zone 1:1,100 users & Zone 2:100 users)
- Support 3 Modes Access: Card, PIN, Card + PIN
- Card Type: 125KHz EM
- Adjustable Door Relay Time: 1-99s
- Static Current: ≤35mA
- Card Read Rang: 3-6cm
- Reader Induction Time: ≤0.1s
- Operating Temperature: -40℃～60℃
- Operating Humidity: 0-95%
- Lock Output Load: 1A
- Alarm Output Load: 3A
- Antistatic: 15KV
- Environment: Conform to IP65
- Wiring Length: 90-100cm
- Dimension: 135mm × 58mm × 26mm
