SPRO DHDVR06-B6-V3

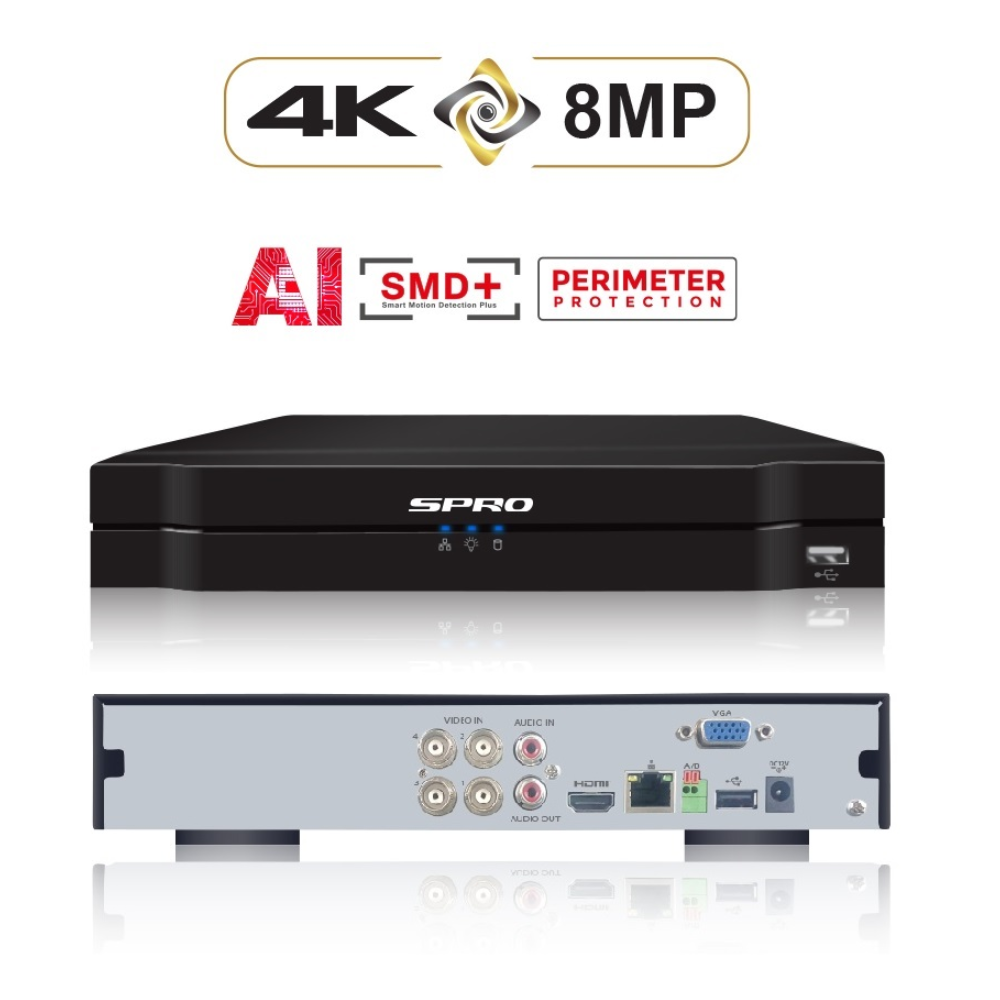

SPRO DHDVR06-B6-V3 Mini 1U 4K 8MP 4-Channel Pentabrid (HDCVI / AHD / HDTVI / CVBS / IP) DVR
SKU: DHDVR06-B6-V3
Categories: CCTV / Surveillance, HDCVI DVRs, HDCVI Surveillance, SPRO HDCVI Pentabrid DVRs
Tags: 4-Channel, 4K, AHD, AI, Analogue CCTV, Artificial Intelligence, CVBS, Digital Video Recorder, DMSS, DVR, HDCVI, HDTVI, Pentabrid, SmartPSS Lite, SMD Plus, SPRO, WizSense, XVR
SPRO DHDVR06-B6-V3 Mini 1U 4K 8MP 4-Channel Pentabrid (HDCVI / AHD / HDTVI / CVBS / IP) DVR
Key Features :-
- H.265+ video compression
- 4* BNC inputs to support HDCVI / HDTVI / AHD / Analogue cameras
- 4K resolution support for HDCVI cameras
- Supports up to 8MP on extra IP channels
- Supports “IP Audio over CAT5/CAT6” on extra IP channels (compatible cameras required)
- P2P (no port forwarding required)
- SMD PLUS (smart motion detection plus)
- Perimeter protection
- Intrusion & tripwire (human & vehicle classification)
- Face detection 2.0
- Push notification
- Spot monitoring via local network
- Tag #DH-XVR5104HS-4KL-I3
- Mobile App = DMSS; Software = SmartPSS Lite
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 4K resolution) – Can be configured to display different sets of cameras than VGA
- 1 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 2 x USB ports (one front, one rear)
- 1 x RS-485 port
- 4 x BNC inputs (to support Analogue / HDTVI / HDCVI / AHD cameras)* – Check specifications for resolution support
- 1 x LAN port (10/100Mbps)
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
| Specifications: | |
|---|---|
| Model Number | DHDVR06-B6-V3 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Performance | Advanced Model : 2 channels, 10 IVS for each channel General Model : 4 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance AI by Recorder |
2 channel (up to 8 face images/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20 000 images |
| Face Recognition Performance AI by Recorder |
2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analogue Camera Input | 4 BNC ports, CVI access by default, supports HDCVI / AHD / TVI / CVBS auto-detect |
| Camera Input | (1) CVI: 4K @ 25/30 fps; 6MP @ 20 fps; 5MP @ 20 fps; 5MP @ 25 fps; 4MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30 fps; 720p @ 50/60 fps. (2) TVI: 4K @ 15 fps; 5MP @ 20 fps; 4MP @ 25/30 fps; 3MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30 fps. (3) AHD: 4K @ 15 fps; 5MP @ 20 fps; 4MP @ 25/30 fps; 3MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30 fps |
| IP Camera Input | Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analogue channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled |
| Encoding Capacity | Main stream: 4K @ (1 fps-7 fps); 6MP @ (1 fps-10 fps); 5MP @ (1 fps-12 fps); 4K-N, 4MP, 3MP @ (1 fps-15 fps); 4M-N, 1080p, 720p, 960H, D1, CIF @ (1 fps–25/30 fps); Sub stream: 960H @ (1 fps–15 fps); D1/CIF @ (1 fps–25/30 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32kbps-6144kbps |
| Audio Sampling | 8kHz, 16 bit |
| Audio Bit Rate | 64kbps |
| Video Output | 1 HDMI + 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; P2P; Auto Registration |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Record Playback | 1/4 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Alarm | |
| General Alarm | Motion detection, video loss, tampering |
| Anomaly Alarm | No disk; disk error; disk full; offline; IP conflict; MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Ports | |
| TV Output | 1-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Input | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA port, up to 16TB. The Maximum HDD capacity varies with environment temperature. |
| RS-485 | 1 port, for PTZ control |
| USB | 2 USB ports (USB 2.0) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <7W |
| Net Weight | 0.96 kg (2.12 lb) |
| Gross Weight | 1.37 kg (3.03 lb) |
| Product Dimensions | 260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” × 1.87”) (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | ≤93% (RH) |
| Installation | Desktop |
| Certification | |
| Certifications | CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035 FCC: Part 15 Subpart B |
