CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance, IP Turret Cameras

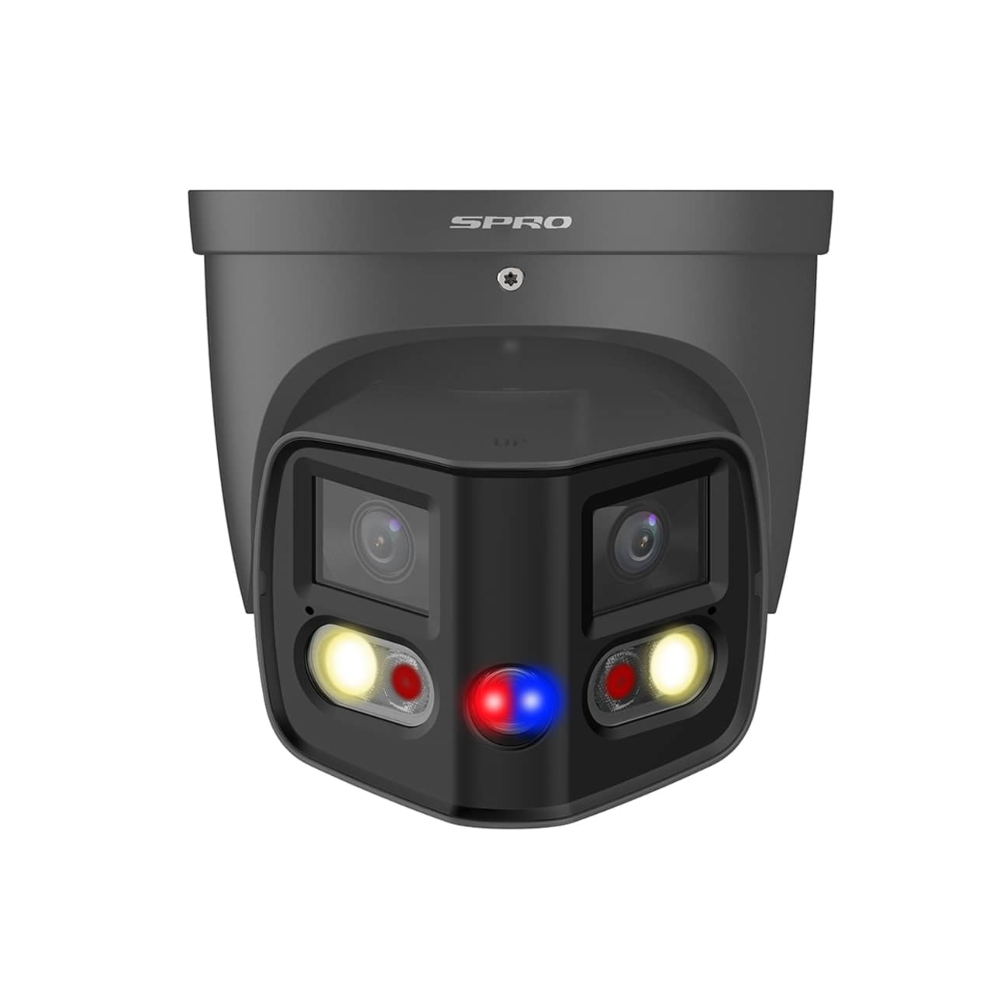

SPRO DHIPD40-LR-DUO-D-G
SPRO DHIPD40-LR-DUO-D-G SMD AI (Artificial Intelligence) TiOC Duo Active-Deterrence H265 4K 8MP (2* 4MP) PoE IP Dual-Illumination (25m IR + 20m Warm-White-Light) 120dB True-WDR Low-Light Weatherproof 180° Ultra-Wide-Angle Turret Camera – Dark Grey Colour – Built-in Mic + Speaker + Strobe + Siren
SKU: DHIPD40-LR-DUO-D-G
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 180 Degree, 2-Way Audio, Active Deterrence, AcuPick, AI Pro, Black, Built-in Mic, Camera, ColourNight 2.0, DMSS, Duo, Eyeball, Full Colour, H265, Human Detection, Infrared, IP, IP67 Rated, IR, Network, Panoramic, Perimeter Protection, PoE, Siren, Smart Dual Light, SmartPSS Lite, SMD Plus, Speaker, SPRO, Strobe, TiOC, Turret, Vehicle Detection, Weatherproof, White Light LED
SPRO DHIPD40-LR-DUO-D-G SMD AI (Artificial Intelligence) TiOC Duo Active-Deterrence H265 4K 8MP (2* 4MP) PoE IP Dual-Illumination (25m IR + 20m Warm-White-Light) 120dB True-WDR Low-Light Weatherproof 180° Ultra-Wide-Angle Turret Camera – Dark Grey Colour – Built-in Mic + Speaker + Strobe + Siren
Key Features :-
- 2 x 4 megapixel 2.8mm lens
- 8MP (4096 x 1860) @20 fps
- 180° panoramic splicing image
- Colour Night 2.0 (Smart Illumination)
- Built-in Microphone & Speaker
- Up to 25m IR Range & Warm Light Range
- Active Deterrence 2.0
- AI PRO Technology
- EPTZ: Enlarge & track intelligent alarm targets
- Support up to 256GB micro SD card
- IP67 Waterproof
- DC12V / POE
- Mobile App = DMSS; Software = SmartPSS Lite
| Specifications: | |
|---|---|
| Model Number | DHIPD40-LR-DUO-D-G |
| Image Sensor | Dual 1/2.7″ CMOS |
| Max. Resolution | 4096 (H) x 1860 (V) |
| ROM | 128 MB |
| RAM | 1GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s-1/100,000 s |
| Min. Illumination | 0.005 lux @ F1.4 (Colour, 30 IRE) 0.0005 lux @ F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 25 m (82.02 ft) (IR LED); Up to 20 m (65.62 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360° / Tilt: 0°–77° / Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: 180°; Vertical: 86° |
| Max. Aperture | F1.4 |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m ( 2.62 ft) |
| DORI Distance | Detect: 50.6 m (166.01 ft)
Observe: 20.2 m (66.27 ft) Recognise: 10.1 m (33.14 ft) Identify: 5.1 m( 16.73 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | 4.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| EPTZ | Enlarge and track the targets of intelligent |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432 |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 6 kbps –16384 kbps |
| Day / Night | Auto (ICR) / Color /B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes ( 4 areas ) |
| Privacy Masking | 4 areas |
| Defog | Yes |
| Audio | |
| Built-in MIC | Yes, built-in mic |
| Audio Compression | Yes, built-in speaker
G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF ( Profile S/Profile G/Profile T); CGI; |
| User / Host | 20 (Total bandwidth: 64M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 8 and later; Chrome; Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3 V-5 VDC |
| Alarm Output | 1 channel out: 300mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 3.95 W (12 VDC); 4.95 W (PoE) Max. (H.265+WDR+ warm light + siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | Φ122 mm × 131.9 mm (Φ4.80″ × 5.19″ ) |
| Net Weight | 990 g (2.18 lb) |
| Gross Weight | 1150 g (2.54 lb) |
