CCTV / Surveillance, IP Surveillance, NVRs, SPRO NVRs
SPRO DHIPNVR08-A6-V2

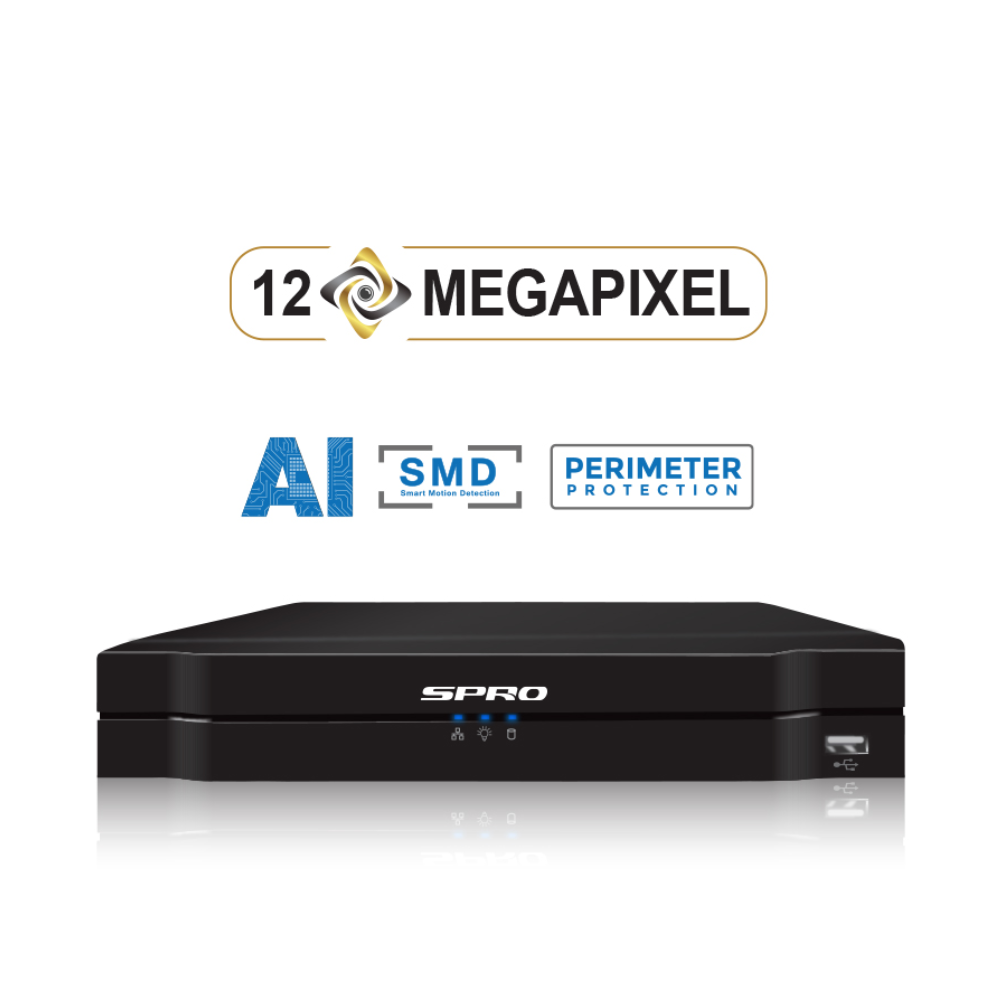

SPRO DHIPNVR08-A6-V2 AI Pro H265 4K Mini 1U 8-Channel 8x PoE Network Video Recorder – NVR – AI PRO – SMD+ – Smart Fan
SKU: DHIPNVR08-A6
Categories: CCTV / Surveillance, IP Surveillance, NVRs, SPRO NVRs
Tags: 4K, 8-Channel, 8x PoE, AI Pro, DMSS, H265, IP, Network, Network Video Recorder, PoE, SmartPSS Lite, SMD Plus, SPRO
SPRO DHIPNVR08-A6-V2 AI Pro H265 4K Mini 1U 8-Channel 8x PoE Network Video Recorder – NVR – AI PRO – SMD+ – Smart Fan
Key Features :-
- H.265 codec recording
- Up to 12 megapixel live viewing & recording
- 8 channel PoE built-in
- Up to 80Mbps incoming bandwidth
- P2P (no port forwarding required) access by DMSS app and SmartPSS Lite software
- All channels support audio over CAT5/6 cable
- PTZ control over CAT5e cable (3D positioning)
- Push notifications on DMSS app
- HDMI (4K) & VGA
- Flame Detection
- AI PRO
- SMD+
- Perimeter protection
- Intrusion (human & vehicle classification)
- Tripwire (human & vehicle classification)
- Two-way-audio
- Smart fan
- Mobile App = DMSS; Software = SmartPSS Lite
| Specifications: | |
|---|---|
| Model Number | DHIPNVR08-A6-V2 |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| Perimeter Protection by Camera | |
| Performance | 8 channels |
| AI Search | Search for pictures by channel, time and event type |
| Face Detection by Camera | |
| Performance | 4 channels |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard. |
| AI Search | Search for pictures by channel, time and face attributes |
| SMD Plus by Camera | |
| Performance | 8 channels |
| Face Attributes | Search by target classification (human, vehicle) |
| Video | |
| Access Channel | 8 |
| Network Bandwidth | AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing
AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Resolution | 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | AI disabled: 1-channel 12MP @ 30 fps; 2-channel 8MP @ 30 fps; 3-channel 5MP @ 30 fps; 4-channel 4MP@30 fps; 8-channel 1080p @ 30 fps
AI enabled: 1-channel 12MP @ 30 fps; 1-channel 8MP @ 30 fps; 2-channel 5MP @ 30 fps; 3-channel 4MP @ 30 fps; 7-channel 1080p @ 30 fps |
| Video Output | 1 HDMI, 1 VGA
Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | Main Screen: 1/4/8/9 Sub Screen: 1/4/8/9 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression | |
| Video | Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Audio | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search; P2P; auto register |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T/S/G); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 8 channels for playback |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; Network |
| Backup | USB storage device |
| Playback Function | 1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
| Intelligent Alarm | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
| Alarm Linkage | Recording, snapshot, audio, buzzer, log, preset, and email |
| External Port | |
| Audio Input | 1 x RCA input |
| Audio Output | 1 x RCA output |
| HDD | 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| VGA | 1 |
| Network | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| POE | 8 |
| General Parameter | |
| Power Supply | 53 VDC, 1.81 A |
| Power Consumption | < 10 W (HDD not included, idling) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.86 kg (4.10 lb) |
| Product Dimensions | 260 mm × 232.3 mm × 50.3 mm (10.24″ × 9.14″ × 1.98″) (W × L × H) |
| Operating Conditions | –10 °C to +55 °C (+10 °F to +131 °F) |
| Storage Conditions | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 10℅~93℅ |
| Operating Altitude | 30%~85% |
| Installation | 3000 m (9842.52 ft) |
| Gross Weight | Desktop mounted |
| Certifications | |
| Certifications | CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B |
