SPRO DHIPNVR16-A8

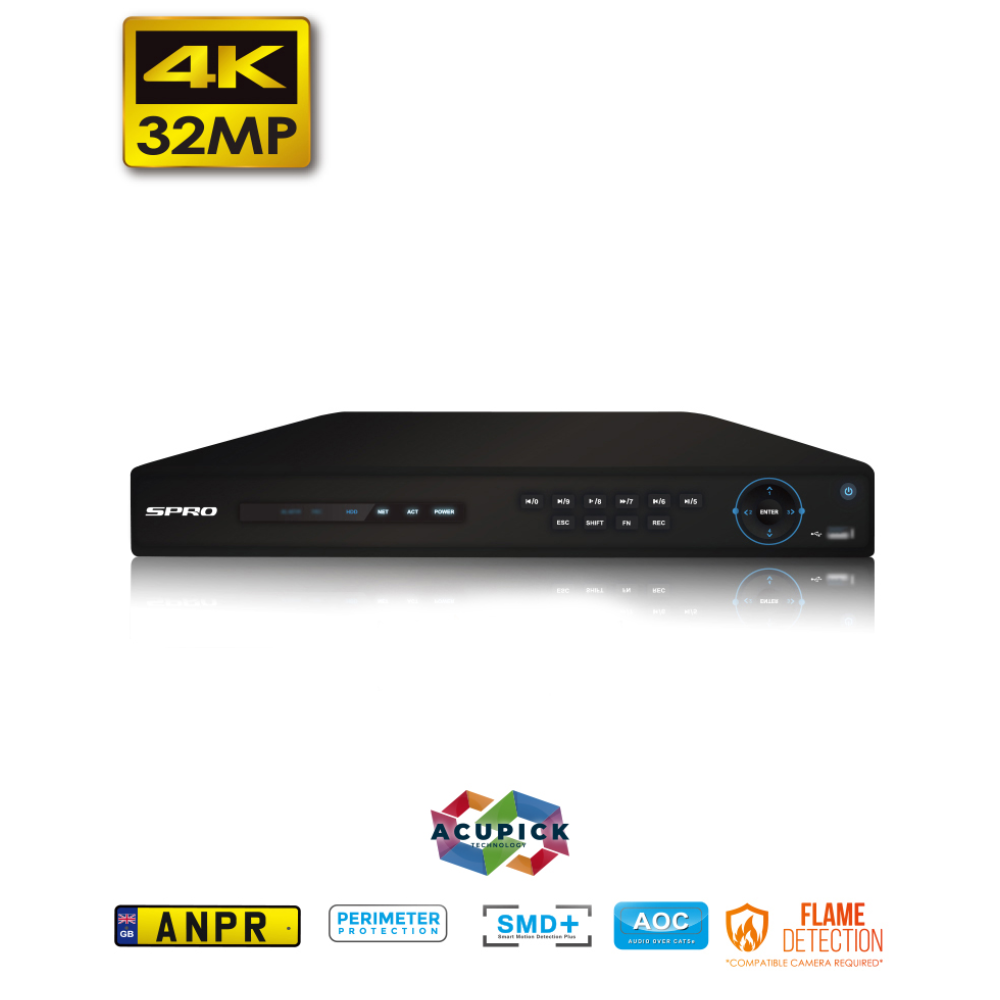

SPRO DHIPNVR16-A8 4K 8K 32MP 1U 16-Channel 16x PoE Network Video Recorder – NVR – AI PRO – SMD+ – Smart Fan
SKU: DHIPNVR16-A8
Categories: CCTV / Surveillance, IP Surveillance, NVRs, SPRO NVRs
Tags: 16-Channel, 16x PoE, 32MP, 4K, 8K, AcuPick, AI Pro, DMSS, IP, Network, Network Video Recorder, NVR, PoE, Pro Series, SmartPSS Lite, SMD Plus, SPRO
SPRO DHIPNVR16-A8 Pro-series 4K 8K 1U 16-Channel 16x PoE Network Video Recorder – NVR – AI PRO – SMD+ – Smart Fan
Key Features :-
- H.265 codec recording
- Up to 32 megapixel live viewing & recording
- Up to 16x PoE ports built-in
- Up to 384Mbps incoming bandwidth
- HDMI (4K) & VGA output
- AcuPick
- Flame Detection
- ANPR
- AI PRO
- Perimeter Protection
- SMD+
- People counting
- Face detection
- Face recognition
- Intrusion (human & vehicle classification)
- Tripwire (human & vehicle classification)
- Mobile App = DMSS; Software = SmartPSS Lite
| Specifications: | |
|---|---|
| Model Number | DHIPNVR16-A8 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera |
Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
|
| Perimeter Protection | |
| Perimeter Performance AI (Recorder) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance AI (Camera) | 16 channels |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance by Recorder | 2 channels (up to 12 face image/s each channel) |
| Face Detection Performance by Camera | 16 channels |
| Face Recognition | |
| Face Database Capacity |
Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
|
| Face Recognition Performance of AI by Recorder |
1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s
2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
|
| Face Recognition Performance of AI by Camera | 16 channels |
| SMD+ | |
| SMD + by Recorder |
8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
|
| SMD + by Camera | 16 channels |
| Video Metadata | |
| Metadata Performance of AI by Camera | 8 channels |
| Human Attributes |
Top colour, top type, bottom colour, bottom type, hat, bag, age, gender and umbrella
|
| Motor Vehicle Attributes |
License plate, plate colour, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.
|
| Non-motor Vehicle Attributes | Vehicle model, vehicle colour, number of persons, helmet. |
| Vehicle License Plate Comparison | |
| ANPR by Camera | 8 channels |
| License Plate Database Capacity |
1. Create up to 20,000 plate numbers.
2. Blocklist and allow-list
|
| Audio and Video | |
| Access Channel | 32 |
| Network Bandwidth |
AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
|
| Resolution |
32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
|
| Decoding Capability |
AI disabled:
2-channel 32MP @ 20 fps; 2-channel 24MP @ 20 fps;
4-channel 16MP @ 30 fps; 6-channel 12MP @ 30 fps;
8-channel 8MP @ 30 fps; 12-channel 5MP @ 30 fps;
16-channel 4MP @ 30 fps; 32-channel 1080p @ 30 fps;
AI enabled:
1-channel 32MP @ 20 fps; 1-channel 24MP @ 20 fps;
2-channel 16MP @ 30 fps; 4-channel 12MP @ 30 fps;
4-channel 8MP @ 30 fps; 8-channel 5MP @ 30 fps;
12-channel 4MP @ 30 fps; 24-channel 1080p @ 30 fps;
|
| Video Output |
1 VGA + 1 HDMI
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Heterogeneous video source output for HDMI and VGA
|
| Multi-screen Display |
Main screen: 1/4/8/9/16/25/36
Sub screen: 1/4/8/9/16
|
| Third-party Cameras access | ONVIF |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports SPRO IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
|
| Mobile Phone Access | DMSS |
| Interoperability | ONVIF 21.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE or later; Firefox |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
|
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; privacy masking; local alarm; |
| Anomaly Alarm |
Camera Offline: storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
|
| Intelligent Alarm |
Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
|
| Alarm Linkage |
Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
|

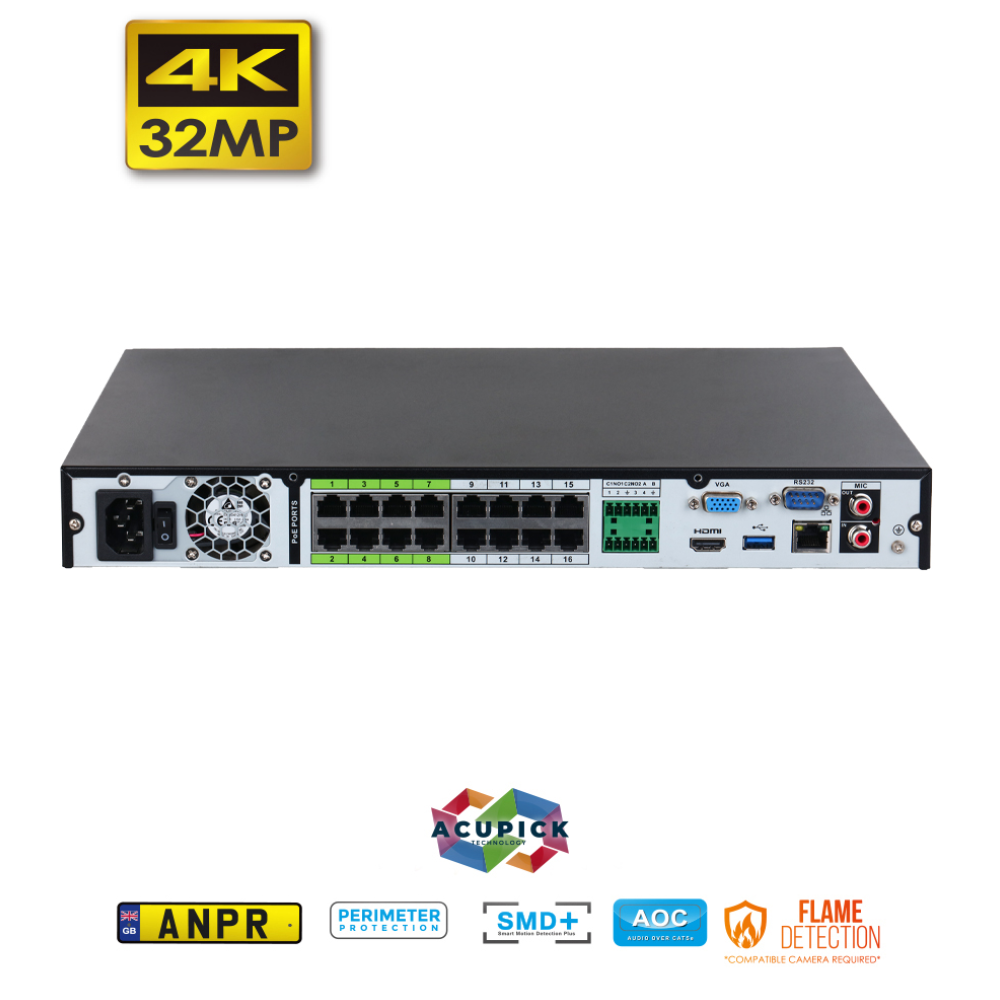

| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| HDD Interface |
2 SATA ports, up to 16TB. The maximum HDD capacity varies with environment temperature.
|
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
| General | |
| Power Supply | 100–240 VAC, 47-63 Hz |
| power Consumption |
Total output of NVR is ≤ 10 W (without HDD) Total output power of PoE is 130 W, the maximum output power of a single port is 25.5W
|
| Net Weight | 2.66 kg (5.86 lb) |
| Gross Weight | 3.82 kg (8.42 lb) |
| Product Dimensions | 375mm × 327.5mm × 53mm (14.8″ x 12.9″ x 2.1″) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or Desktop |
| Certifications |
FCC: 47 CFR FCC Part15, Subpart-B, Class A
CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1:
2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035:
2017+A11: 2020; EN 50130-4: 2011+A1: 2014
CE-LVD: EN 62368-1: 2014
|
