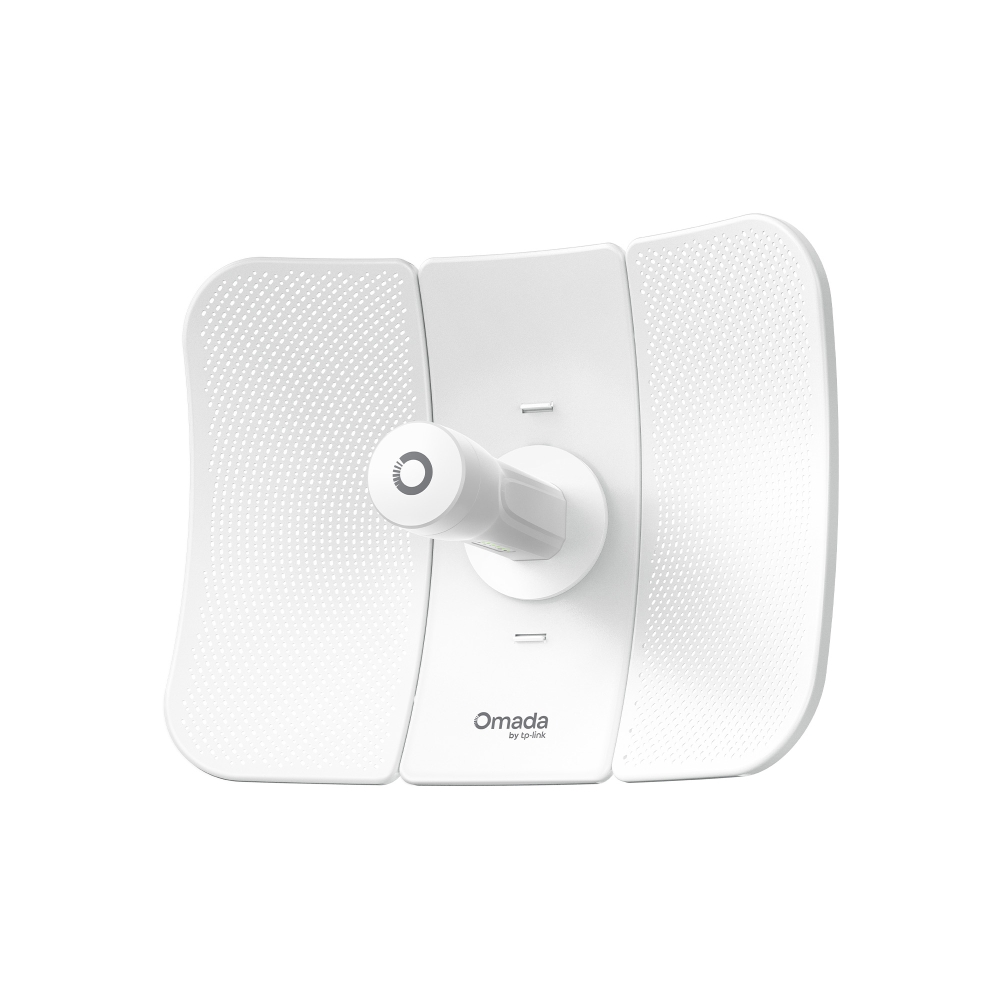

TP-Link Omada Beam Bridge 5 UR KIT

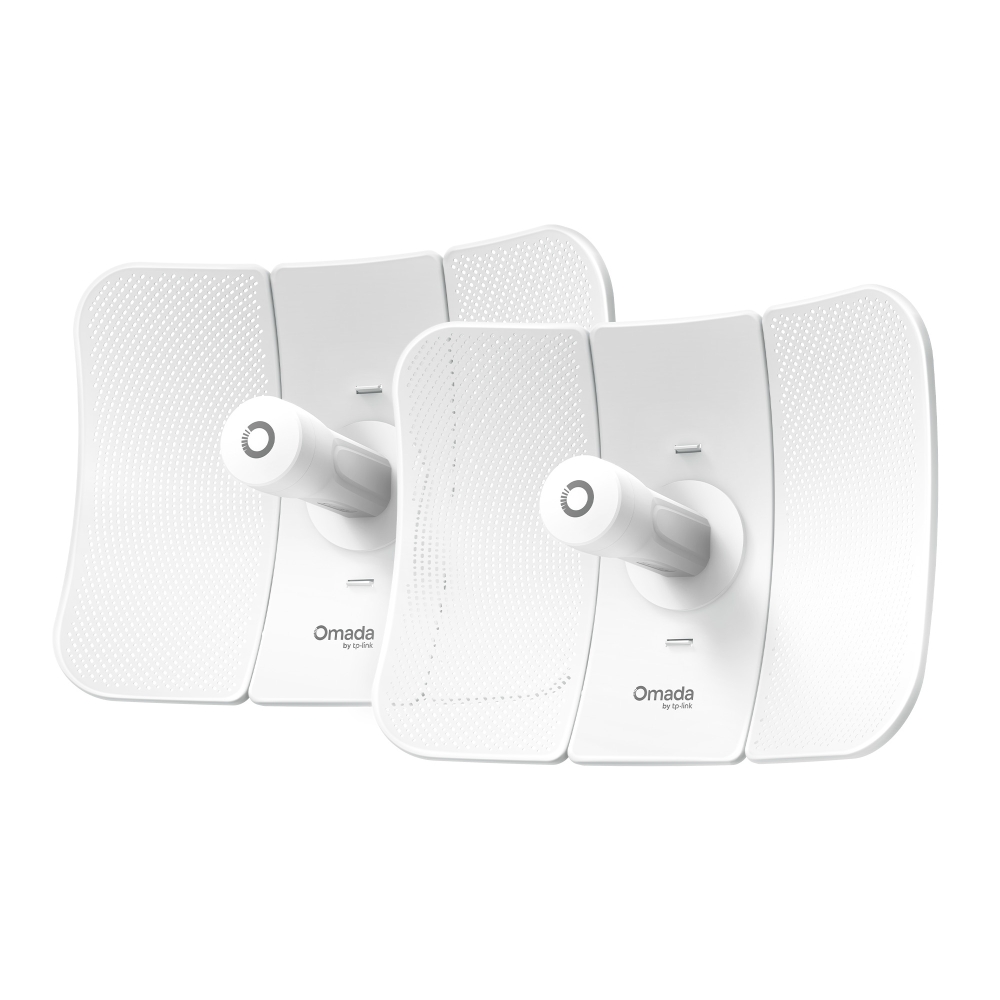

TP-Link Omada Beam Bridge 5 UR KIT 5GHz 867Mbps Ultra Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 15Kms Range – Supports 24VDC PoE and 48VDC PoE Input – 2* Passive PoE Injectors Included
SKU: Beam Bridge 5 UR KIT
Categories: Networking Products, Wireless Access Points, Wireless Bridge
Tags: 5GHz Wireless, EAP Mesh, IP, IP65 Rated, Kit, Network, Omada, Omada Mesh, Outdoor, PoE, TP-Link, WAP, Weatherproof, Wireless, Wireless Access Point, Wireless Bridge
TP-Link Omada Beam Bridge 5 UR KIT 5GHz 867Mbps Ultra Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 15Kms Range – Supports 24VDC PoE and 48VDC PoE Input – 2* Passive PoE Injectors Included
Key Features :-

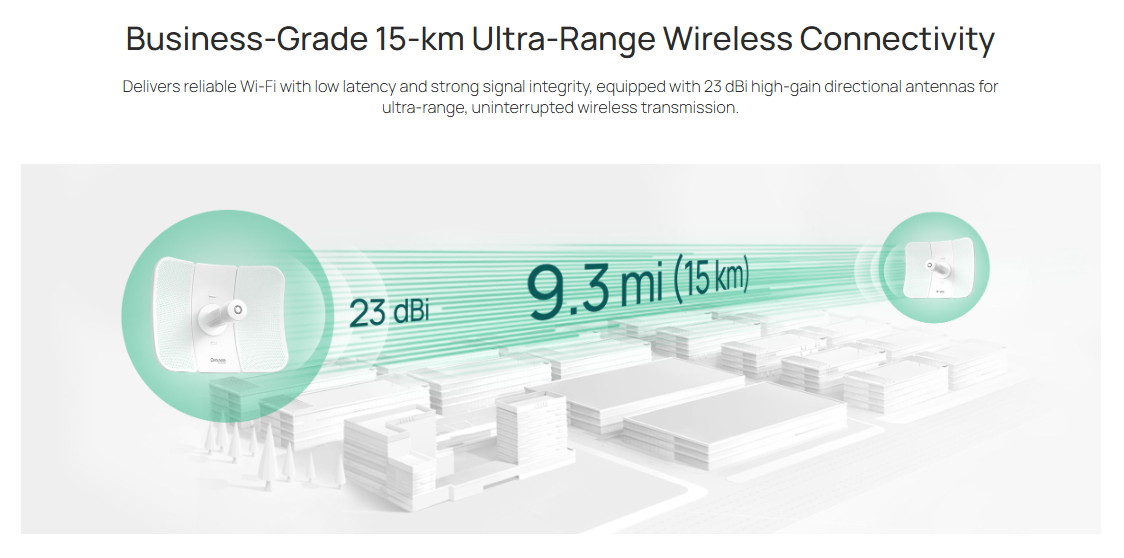

- Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
- App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.

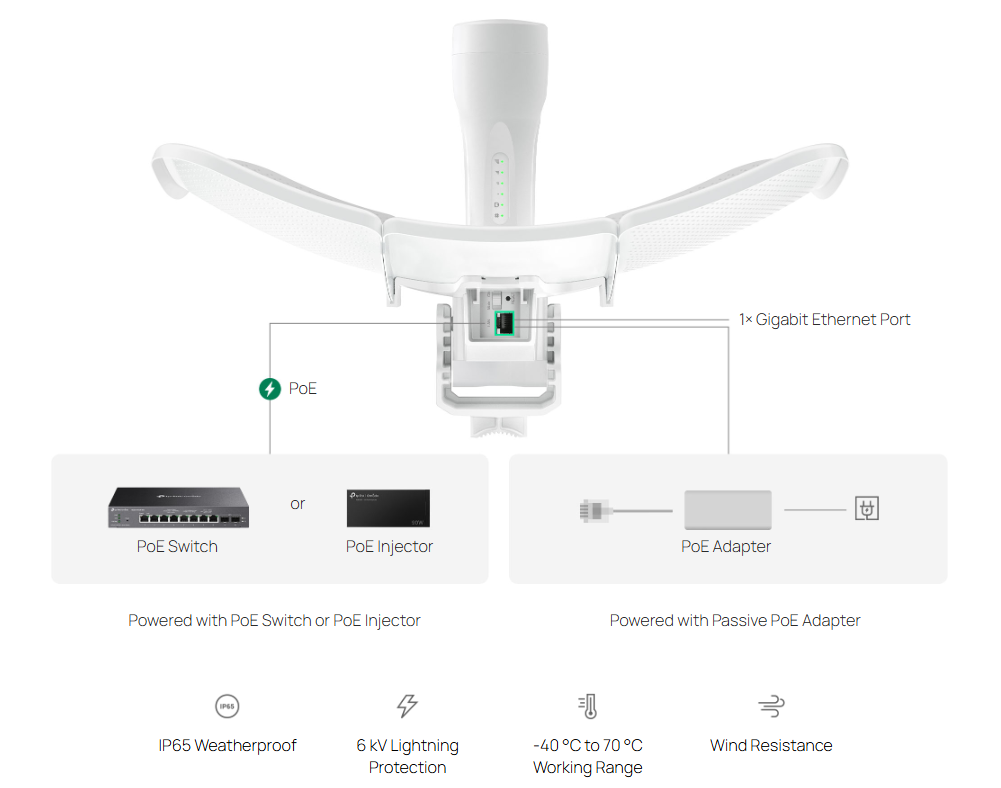

- Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
- Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In |
| Button | 1 × Reset Button 1 × System Mode Selection Button |
| DIP Switch | Role Switch |
| Power Supply | 802.3af PoE (1,2pins; 3,6pins) 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included) |
| Max. Power Consumption | 15.8W |

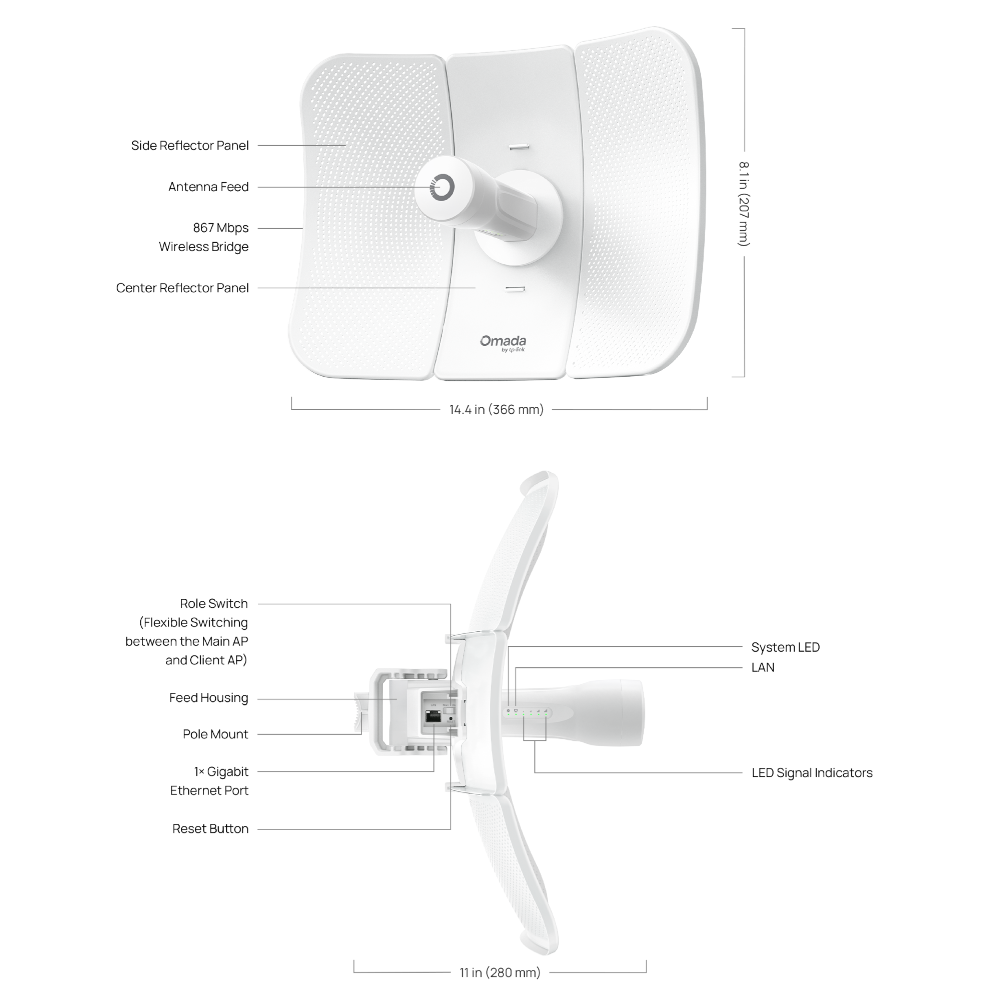

| Dimensions ( W x D x H ) | 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm) |
| Antenna | External 2×2 Dual-Polarized Directional MIMO Antennas 5 GHz: 23 dBi |
| Antenna Beamwidth | Horizontal: 9°, Vertical: 7° |
| Weatherproof Enclosure | IP65 |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80 MHz |

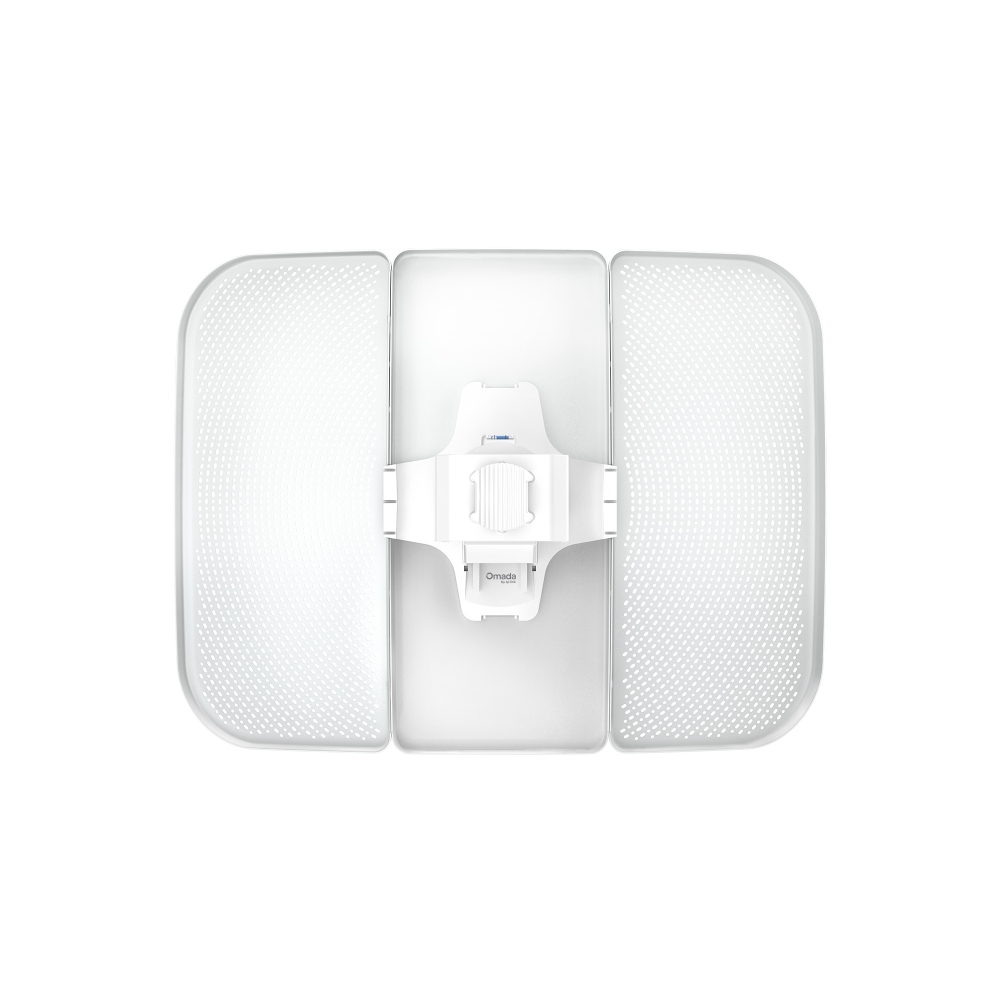

| Mounting | Pole Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| Transmission Distance | 15 km (9.3 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2×2 MU-MIMO DL • Maximum number of associated STAs: 8 • Speed Test • Channel Optimization • Antenna Alignment • ACS (Automatic Channel Selection) • Rate Limit • Guest Network |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <23 dBm (5 GHz, U-NII-1/2A, ERIP) <30 dBm (5 GHz, U-NII-1/2C, ERIP)• FCC: <27 dBm (5 GHz, U-NII-1) <27 dBm (5 GHz, U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

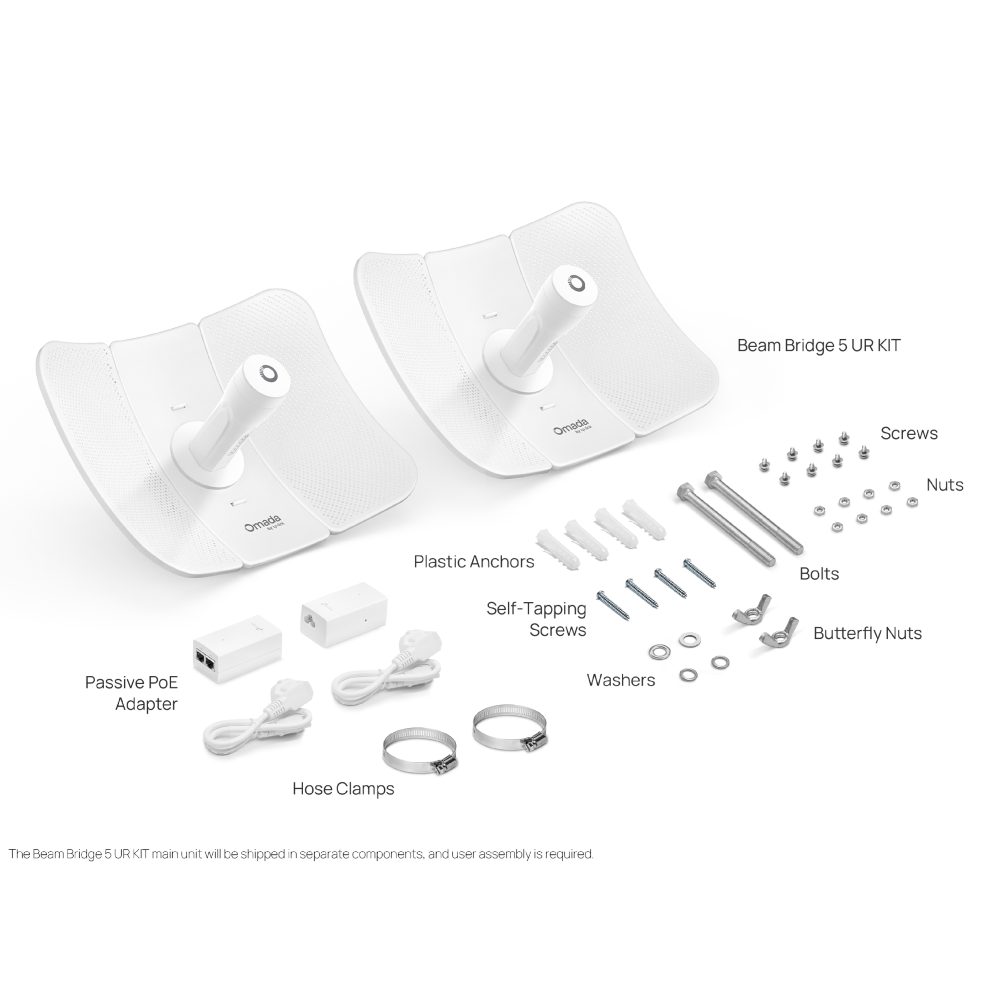

| Package Content | • Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
| Weight | 1.1 kg (2.43 lb) |
