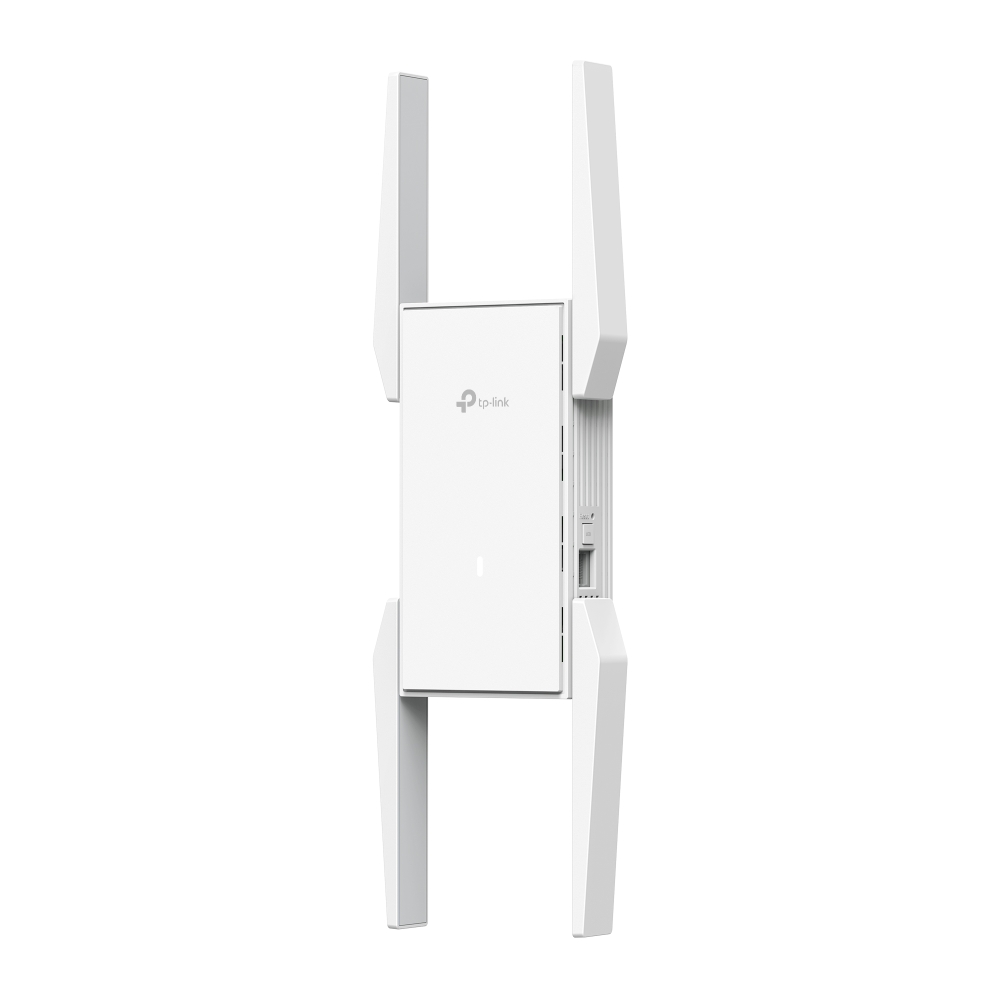

TP-Link Omada EAP673-Extender
TP-Link Omada EAP673-Extender AX5400 Mesh WiFi 6 Extender / AP – Dual-Band (5GHz + 2.4GHz) – Up To 5.4Gbps – 230VAC Powered – Supports Omada EAP Mesh & Fast Roaming
SKU: EAP673-Extender
Categories: Indoor WAP, Mesh WiFi, Networking Products, Wireless Access Points, Wireless Range Extenders
Tags: 2.4GHz Wireless, 5GHz Wireless, EAP Mesh, Extender, Fast Roaming, Gigabit, IP, Multi-Gigabit, Network, Omada, Omada Mesh, Omada SDN, Omada WiFi 6, TP-Link, WiFi, WiFi 6, Wireless, Wireless Access Point
TP-Link Omada EAP673-Extender AX5400 Mesh WiFi 6 Extender / AP – Dual-Band (5GHz + 2.4GHz) – Up To 5.4Gbps – 230VAC Powered – Supports Omada EAP Mesh & Fast Roaming
Key Features :-
- AX5400 Dual-Band Wi-Fi 6: Up to 5.4 Gbps wireless speeds .†
- Wi-Fi Dead-Zone Killer: Four high-gain external antennas extend Wi-Fi signals to every dead zone.
- AP Mode: Simply plug in an Ethernet cable to create a new Wi-Fi AP.
- Seamless Mesh Networking: Supports Omada Mesh and Roaming for reliable networking, ideal for large-scale scenarios.§
- Easy & Quick Installation: Standard AC power supply for flexible deployment.
- Quick adoption: Conveninet operation via Omada web or app once the extender powers on.
- Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- 5 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit Ethernet Port |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 100-240 V ~ 50/60 Hz |
| Max. Power Consumption | 18 W |
| Dimensions ( W x D x H ) | 6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm) |
| Antenna | 4× External Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 4× 5 dBi |
| Mounting | Plug in |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 140 ㎡ (1500 ft²)*** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming§ • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <30 dBm (5 GHz, band3, EIRP)• FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, IC, RoHS, UL |
| Package Content | • AX5400 Mesh WiFi 6 Extender EAP673-Extender • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
