TP-Link Omada ES220GP

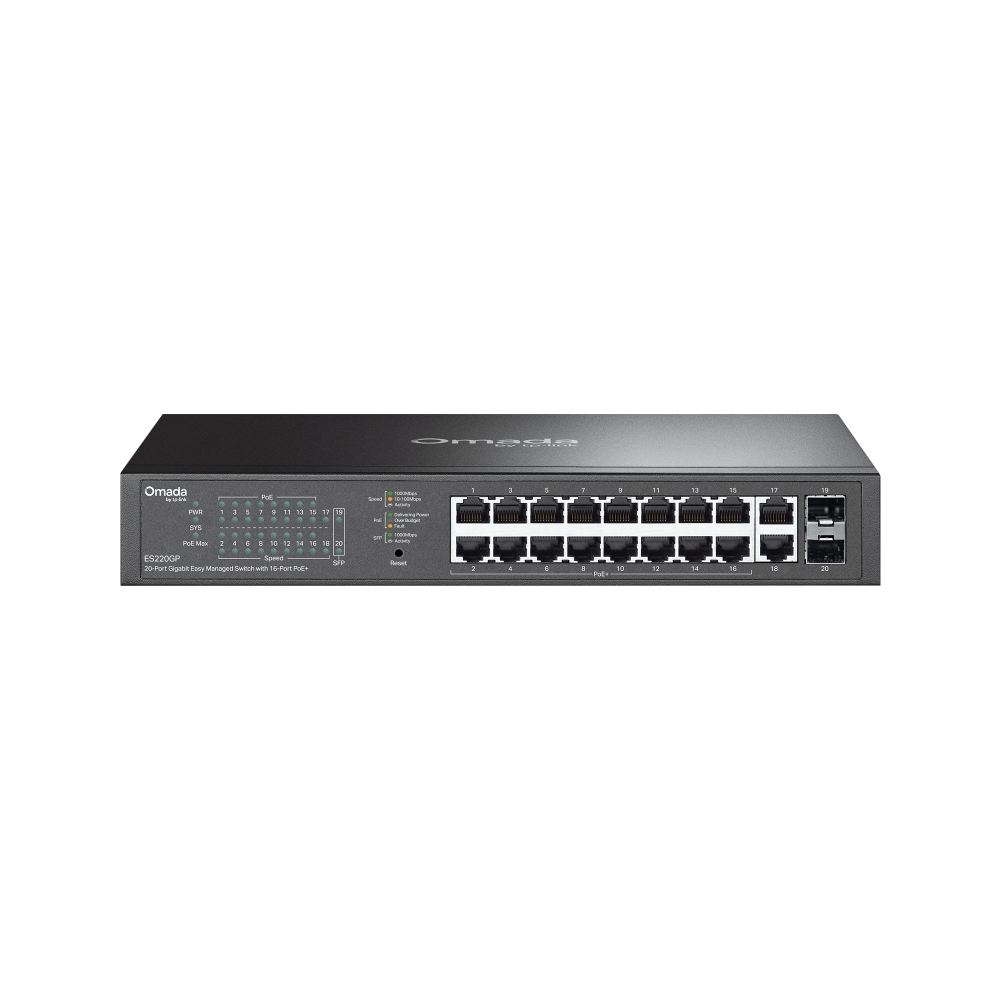

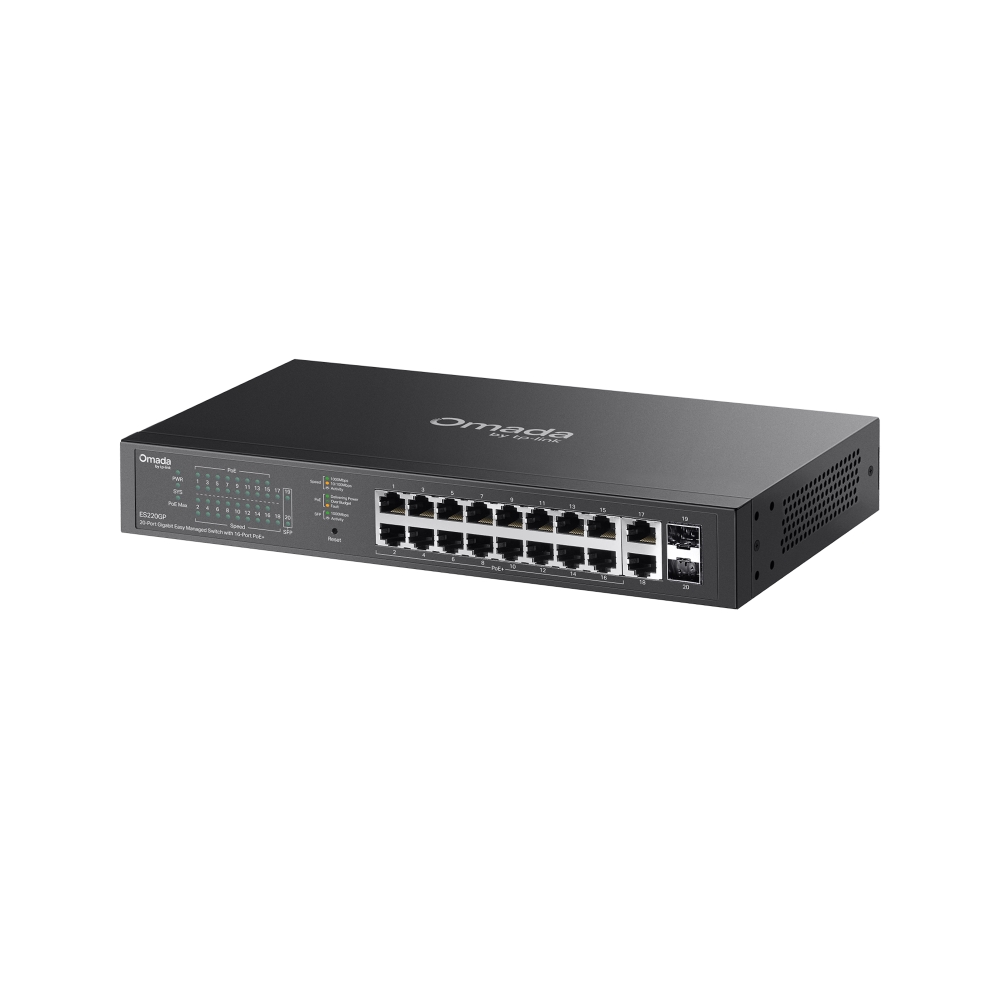

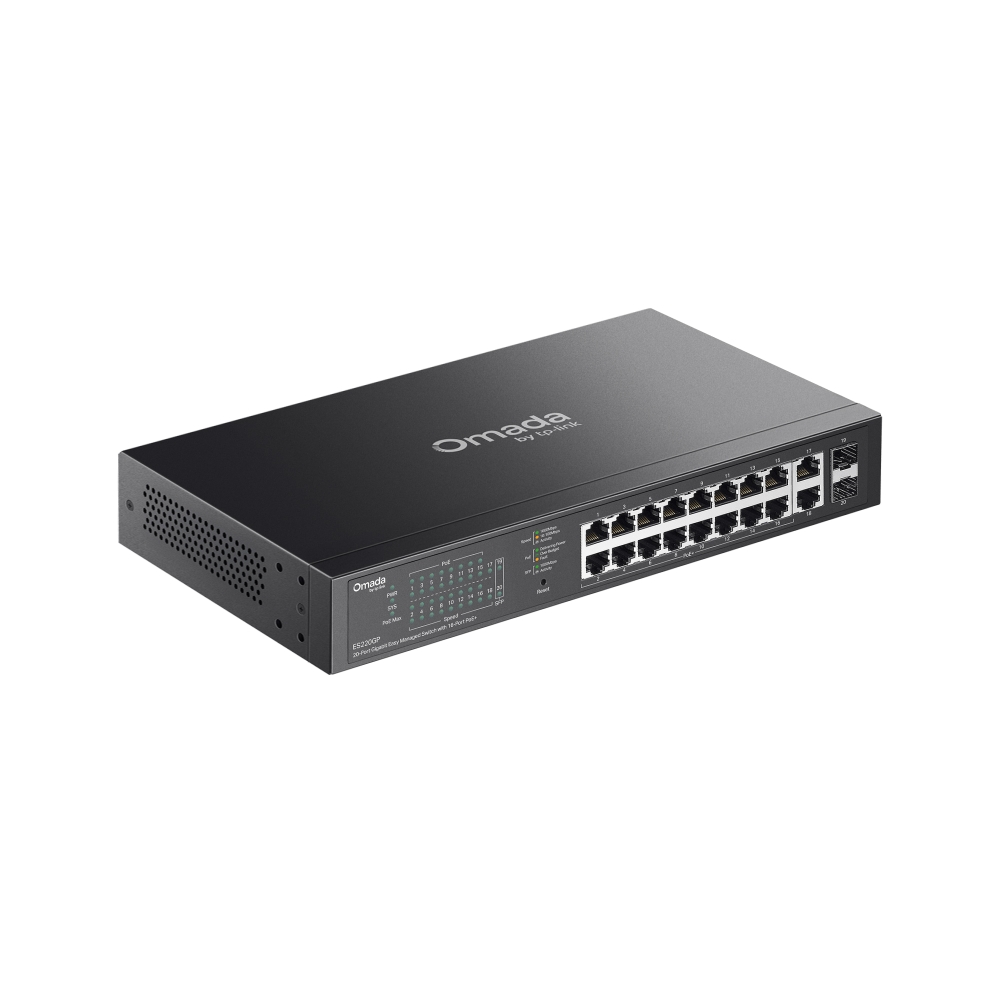

TP-Link Omada ES220GP 20-Port Gigabit Ethernet Easy Managed Fanless Network Switch with 16 * GbE PoE+ Ports + 2 * GbE LAN Ports + 2 * SFP Slots – 150w PoE Power Output – Centralized Cloud Management Via Web OR Omada App
SKU: ES220GP
Categories: Cloud Managed PoE Switches, Networking Products, PoE Switches, Unmanaged PoE Switches
Tags: 16-port, 16x PoE, 18-port, Gigabit, IP, Network, Omada, PoE Switch, Smart Managed, TP-Link
TP-Link Omada ES220GP 20-Port Gigabit Ethernet Easy Managed Fanless Network Switch with 16 * GbE PoE+ Ports + 2 * GbE LAN Ports + 2 * SFP Slots – 150w PoE Power Output – Centralized Cloud Management Via Web OR Omada App
Key Features :-
- 18× 10/100/1000Mbps RJ45 ports (16× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP Slots
- 150W PoE Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack mounting design
- 5 years limited b2b warranty
- Omada PoE Technology
| HARDWARE FEATURES | |
|---|---|
| Interface | • 18× 10/100/1000 Mbps PoE+ RJ45 Ports (16× 802.3af/at-compliant PoE+) • 2× Gigabit SFP Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | Desktop/Rackmount |
| Physical Security Lock | √ |

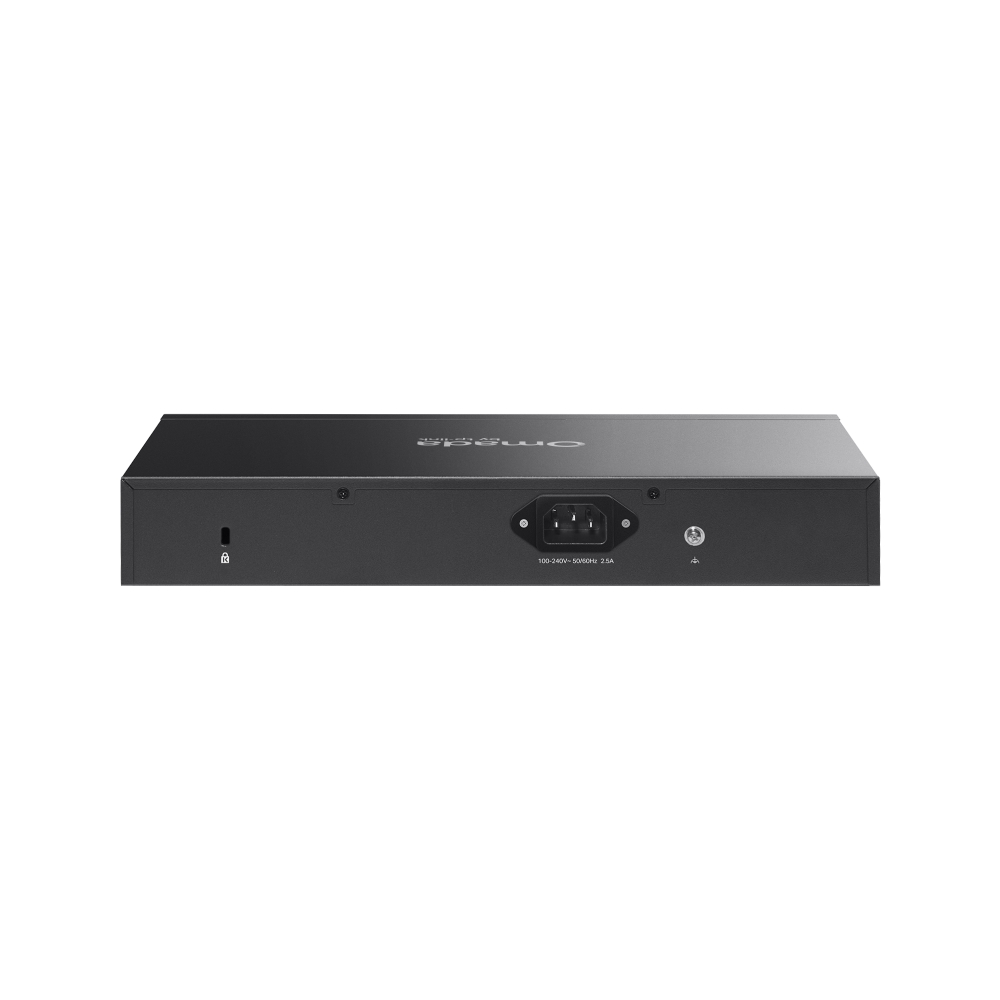

| Power Supply | 100–240V AC, 50/60Hz 2.5A |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 Ports • PoE Budget: 150W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |

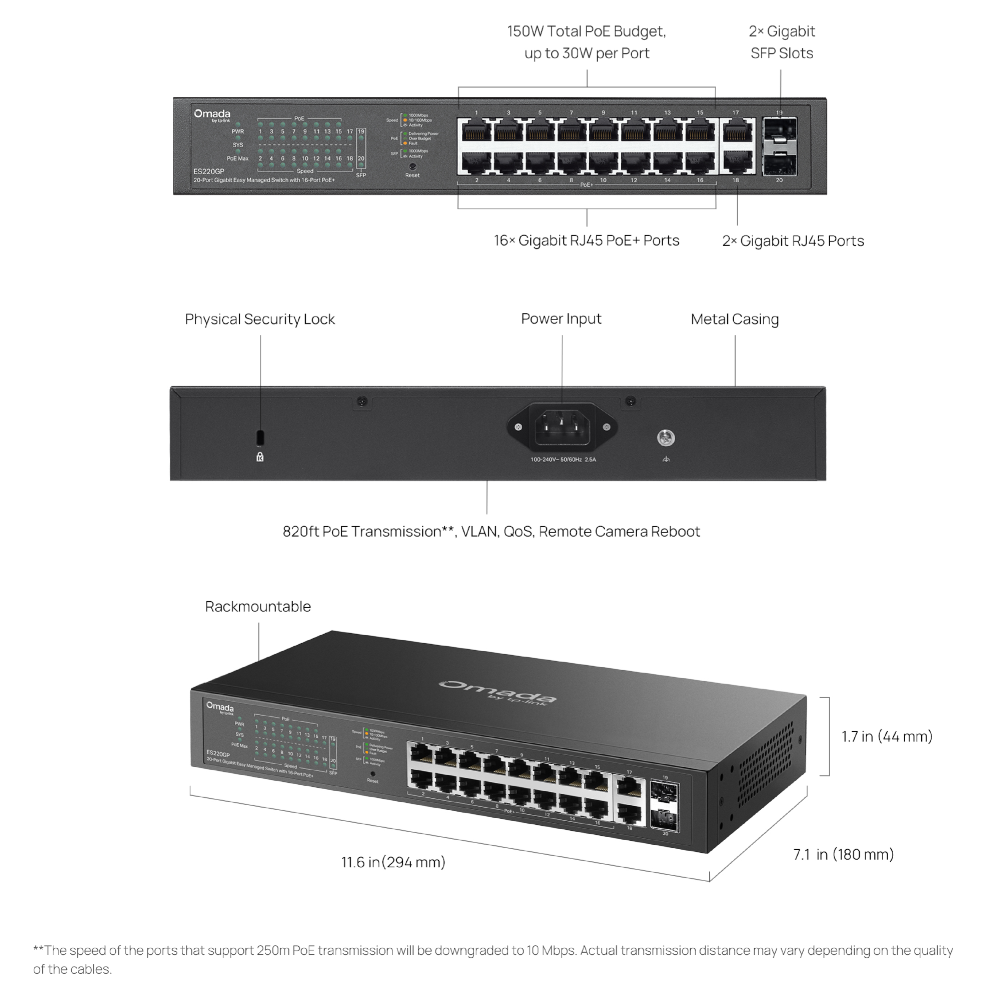

| Dimensions ( W x D x H ) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Surge Protection | ±6 kV |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES220GP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23°F~104°F) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
