TP-Link Omada MC200CM

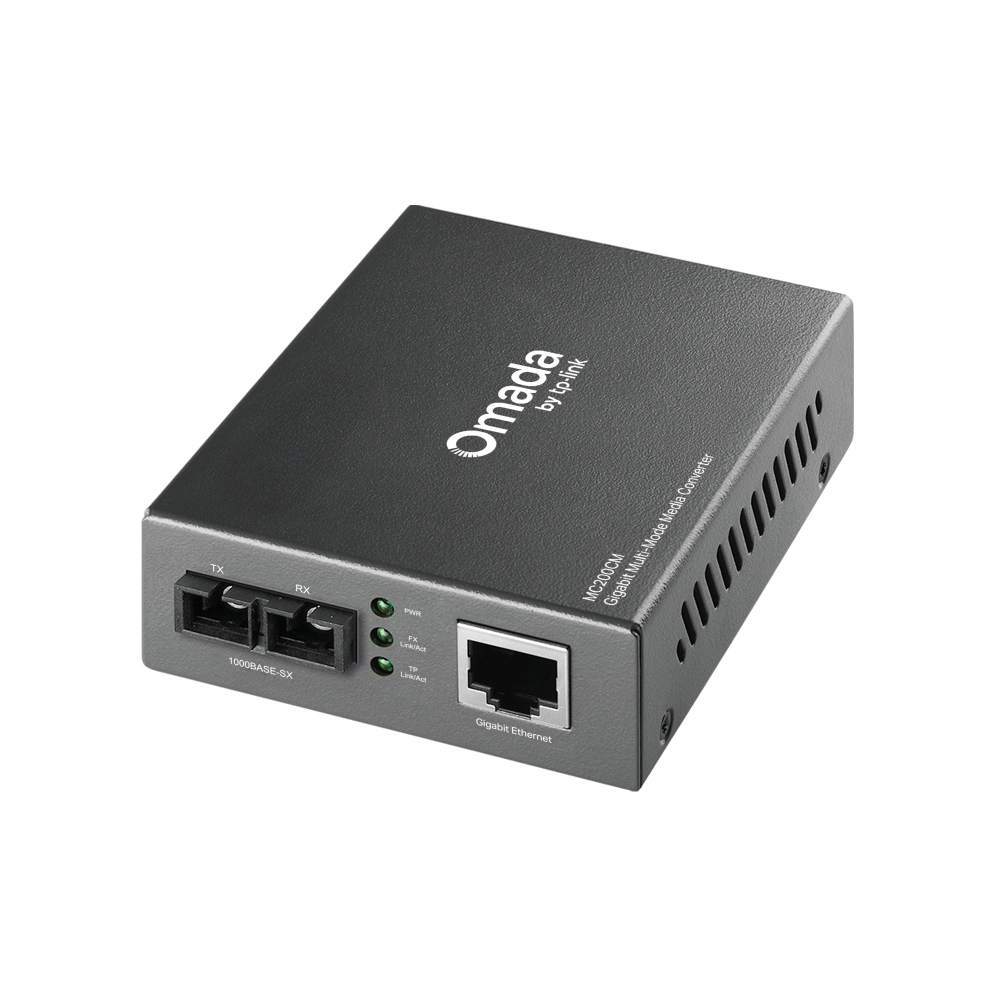

TP-Link Omada MC200CM Gigabit Multi-Mode Media Converter – Supports 2* Gigabit SC/UPS Slots – 1 * Gigabit RJ45 Ports – Fibre Distance Up To 550m
SKU: MC200CM
Categories: Fibre Ethernet Media Converters, Networking Products
Tags: Ethernet, Fibre, Gigabit, Media Converter, Multi-mode, Network, Omada, TP-Link
TP-Link Omada MC200CM Gigabit Multi-Mode Media Converter – Supports 2* Gigabit SC/UPS Slots – 1 * Gigabit RJ45 Ports – Fibre Distance Up To 550m
Key Features :-
- 1* 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 0.55km
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode • Extends fiber distance up to 0.55km using 50/125um fiber • Extends fiber distance up to 0.22km using 62.5/125um fiber |
| Interface | • 2× 1000M SC/UPC ports • 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Dimensions ( W x D x H ) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.66W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Package Content | • MC200CM • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
