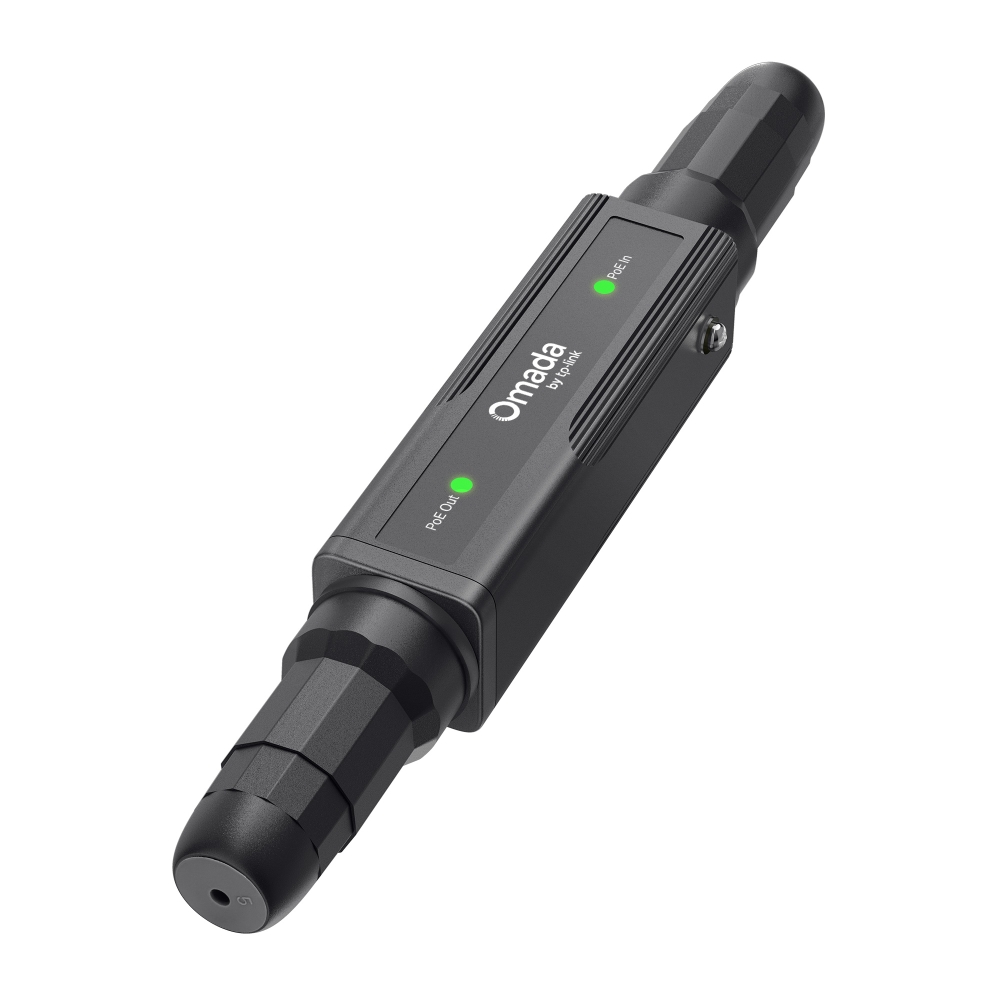

TP-Link Omada POE20E-Outdoor
TP-Link Omada POE20E-Outdoor Gigabit PoE+ Extender – 30w PoE 802.3at Support – GbE PoE In – GbE PoE Out
SKU: POE20E-Outdoor
Categories: Networking Products, PoE Extenders, Splitters & Repeaters
Tags: 802.3at, Extender, Gigabit, IP, IP68 Rated, Network, Omada, Outdoor, PoE, Repeater, TP-Link, Weatherproof
TP-Link Omada POE20E-Outdoor Gigabit PoE+ Extender – 30w PoE 802.3at Support – GbE PoE In – GbE PoE Out
Key Features :-
- 2 * 10/100/1000 Mbps RJ45 ports
- Compliance with 802.3af/at devices
- Supplies up to 30 W, which meets the power consumption requirements of most IP cameras
- Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m)* from the PoE power sourcing equipment
- Outdoor Weatherproof: IP68 dust &water proof; Wide operation temperatures of -40 to 65 °C and 6KV lightning protection further ensure stable operation against harsh outdoor conditions.
- Plug-and-Play, requires no configure
- Note* – PoE Injector sold separately
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Interface | • 1× 10/100/1000 Mbps Auto-Negotiation RJ45 • 1× 10/100/1000 Mbps Auto-Negotiation RJ45 |
| Network Media | •10BASE-T: 2-pair UTP/STP (≤250m) of Cat. 3 or above •100BASE-TX: 2-pair UTP/STP (≤100m) of Cat. 5 or above •1000BASE-T: 4-pair UTP/STP (≤100m) of Cat. 5e or above |
| Max. Power Consumption | • Output: 30W |
| LED | 2× Link/Act |
| Dimensions ( W x D x H ) | 221.7 × 31 × 31.5mm (8.73 × 1.22 × 1.24 in) |
| Weatherproof Enclosure | IP68 |
| OTHERS | |
|---|---|
| Certification | CE, FCC, BSMI, KC |
| Package Content | • POE20E-Outdoor • Waterproofing Components • Ground Wire • Installation Guide |
| Lightning Protection | 6kV |
| Environment | • Operating Temperature: -40°C to 65°C (-40°F to 149°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 15% to 90% RH non-condensing • Storage Humidity: 15% to 90% RH non-condensing |
