TP-Link Omada POE260S

TP-Link Omada POE260S 2.5 Gigabit PoE+ 802.3at 30W Injector -> Up To 2.5Gbps LAN Input + 230VAC Input -> Up To 2.5Gbps PoE Output

TP-Link Omada POE260S 2.5 Gigabit PoE+ 802.3at 30W Injector -> Up To 2.5Gbps LAN Input + 230VAC Input -> Up To 2.5Gbps PoE Output

2*2.5 Gbps ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W

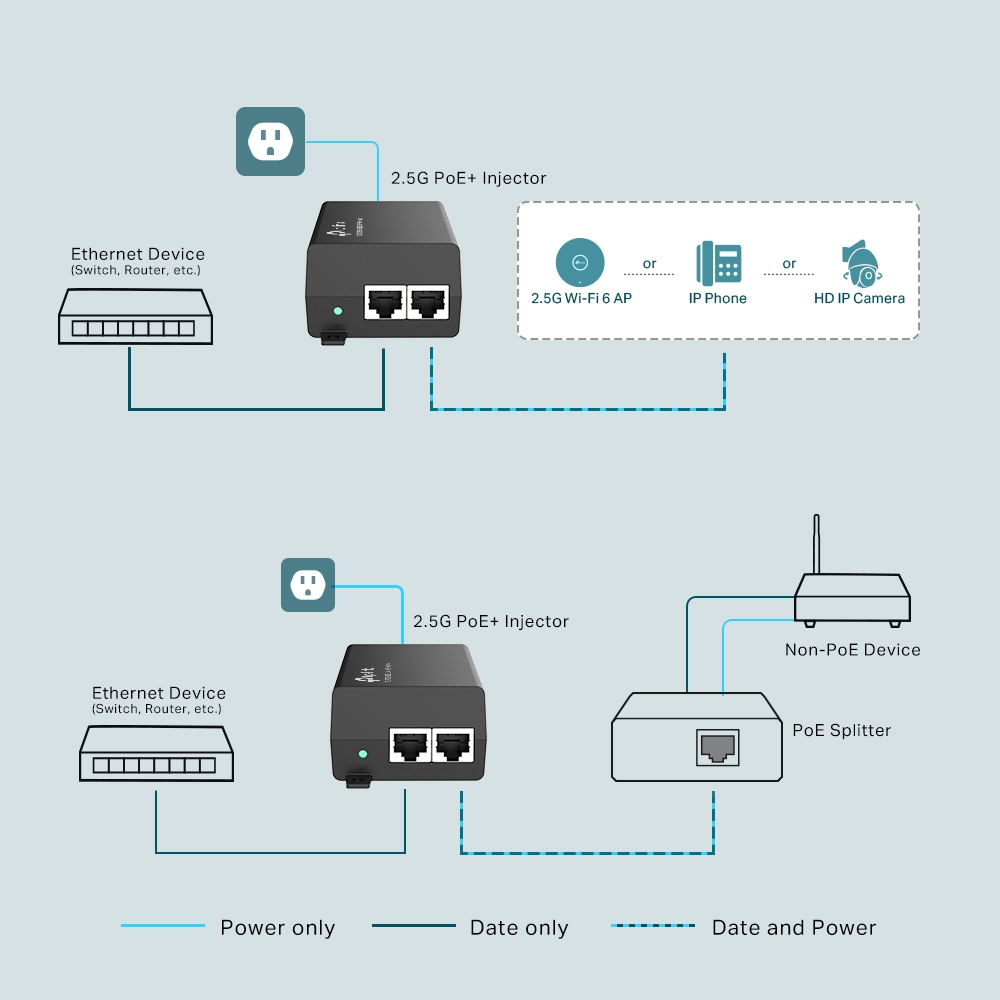

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device’s need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply
5 years limited b2b warranty

NETWORK
Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at

HARDWARE FEATURES
Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at

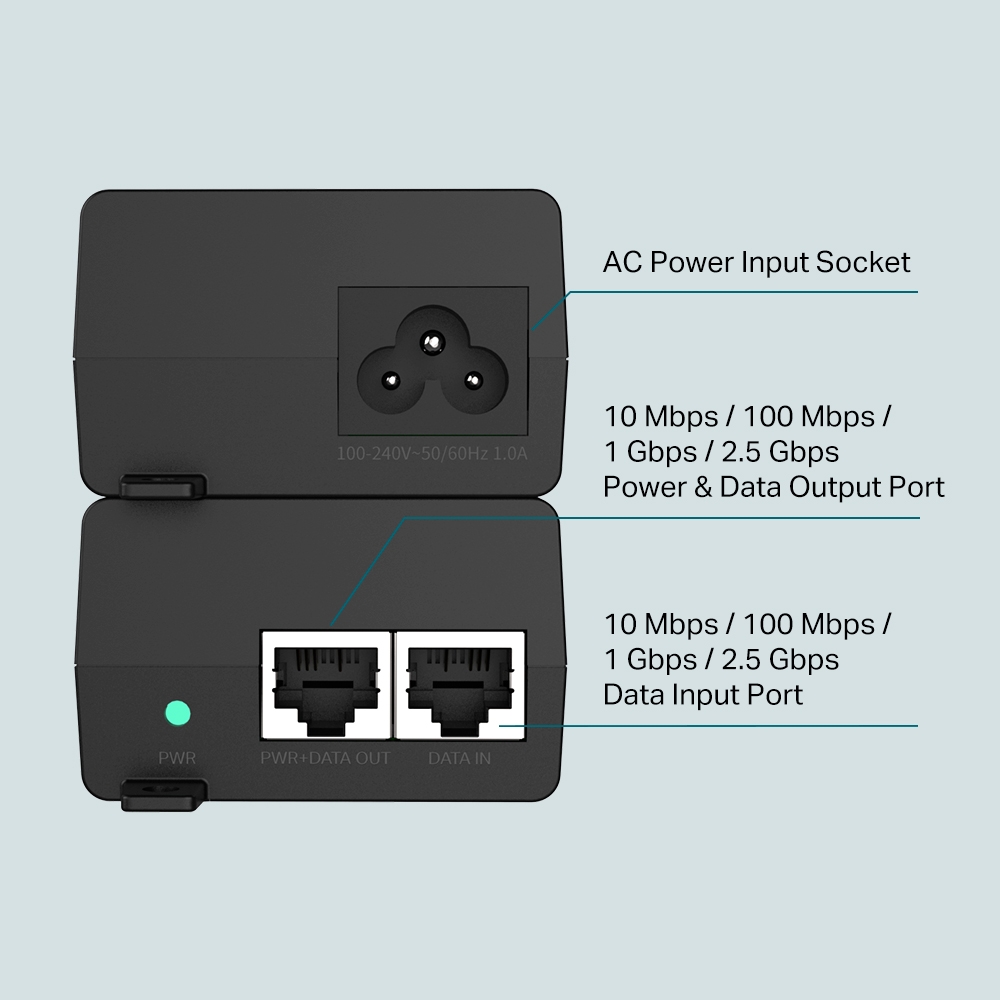

Interface	• 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port • 1 AC socket
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) • 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)
Max. Power Consumption	Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function	• Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play
LED	ON: Supplying power normally OFF: No power supply
Dimensions ( W x D x H )	4.92.31.4 in (12559.436.8 mm)

GENERAL
Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing

Package Content
Package Content	• 2.5Gbps PoE+ Injector TL-POE260S • Installation Guide • Power Cord • RJ45 Cable • Wall Mounting Kits

OTHERS
Certification	FCC, CE, RoHS
Package Content	• POE260S • Installation Guide • Power Cord • Wall Mounting Kits
Environment	• Operating Temperature: 0°C to 40°C (32°F to 104°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing
