TP-Link Omada SM331T

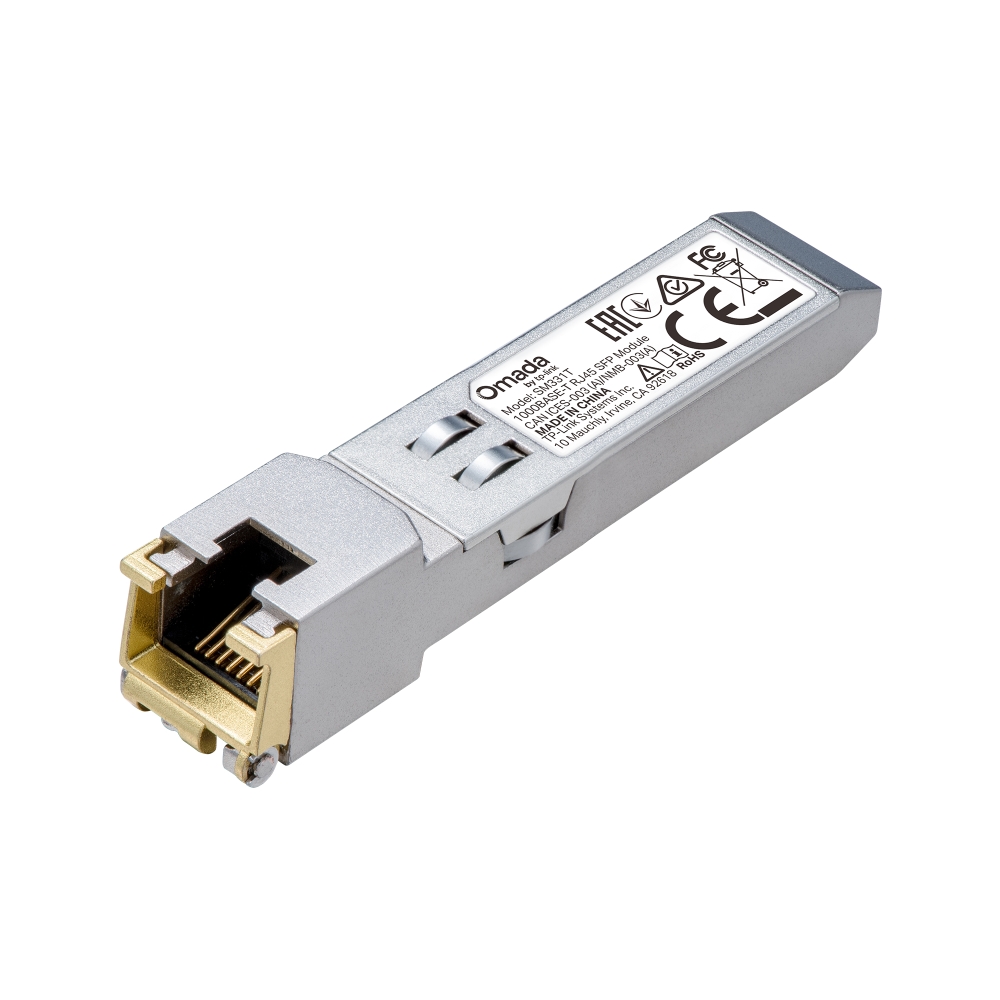

TP-Link Omada SM331T 1000BASE-T Gigabit RJ45 SFP Module / Transceiver – Hot-Pluggable
SKU: SM331T
Categories: Fibre to Ethernet SFP Modules, Networking Products, SFP Transceiver Modules
Tags: Ethernet, Gigabit, Omada, RJ45, SFP Module, TP-Link
TP-Link Omada SM331T 1000BASE-T Gigabit RJ45 SFP Module / Transceiver – Hot-Pluggable
Key Features :-
- Support 10/100/1000Base-T Operation in Host Systems
- Support TX Disable function
- For 100m* Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3，802.3ab，802.3x；INF 8074i，SFF-8472
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
| Transceiver | |
|---|---|
| Standards and Protocols | IEEE Std 802.3，802.3ab，802.3x；INF 8074i，SFF-8472 |
| Power Supply | 3.3V |
| Max. Cable Length | 100m* (Cat 5e or above) |
| Data Rate | 1.25 Gbps |
| Port Type | 1× 1000 Mbps RJ45 Port |
| Safety & Emission | FCC, CE |
| Environment | • Operating Temperature: 0–70 ℃ (32–158 ℉) • Storage Temperature: -40–85 ℃ (-40–185 ℉) |
| HARDWARE FEATURES | |
|---|---|
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Dimensions ( W x D x H ) | 2.7×0.5×0.5 in(67.4×13.4×13.8 mm) |
| Package Content | |
|---|---|
| Package Content | • SM331T • Installation Guide |
