TP-Link Omada SM5310-T

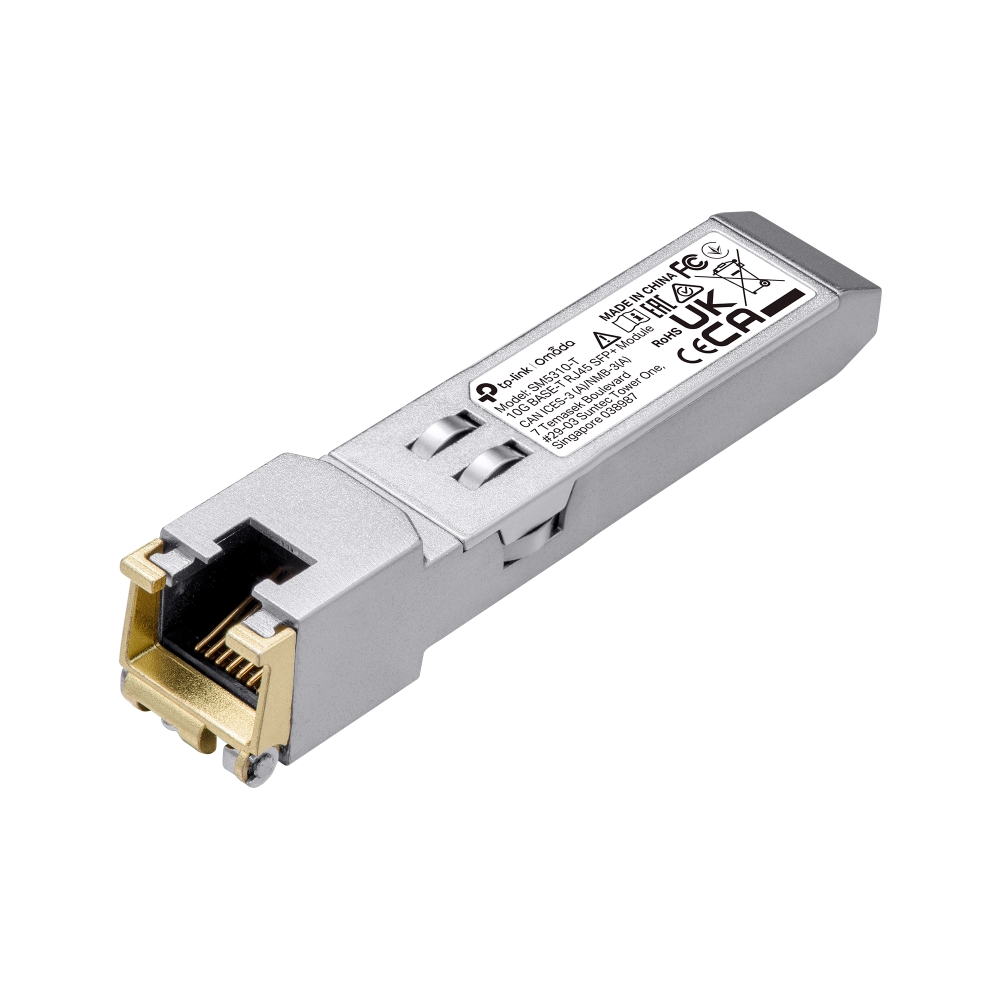

TP-Link Omada SM5310-T 10GBASE-T 10-Gigabit RJ45 SFP Module / Transceiver – Hot-Pluggable
SKU: SM5310-T
Categories: Fibre to Ethernet SFP Modules, Networking Products, SFP Transceiver Modules
Tags: 10Gbps, Ethernet, Gigabit, Multi-Gigabit, Omada, RJ45, SFP Module, TP-Link
TP-Link Omada SM5310-T 10GBASE-T 10-Gigabit RJ45 SFP Module / Transceiver – Hot-Pluggable
Key Features :-
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, and 1000BASE-T
- Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Fully Metallic Enclosure for Low EMI
| Transceiver | |
|---|---|
| Standards and Protocols | IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an, 802.3x; SFF 8432, SFF-8472 |
| Power Supply | 3.3V |
| Max. Cable Length | • 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) • 10GBASE-T: UTP cat.6a or above (max. 30m) |
| Data Rate | 10.3 Gbps |
| Port Type | 1× 10G RJ45 Port |
| Safety & Emission | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–70 ℃ (32–158 ℉) • Storage Temperature: -40–85 ℃ (-40–185 ℉) |
| HARDWARE FEATURES | |
|---|---|
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Dimensions ( W x D x H ) | 2.7*0.5*0.5 in (67.4*13.75*13.8 mm) |
| Package Content | |
|---|---|
| Package Content | • 10G BASE-T RJ45 SFP+ Module SM5310-T • Installation Guide |
