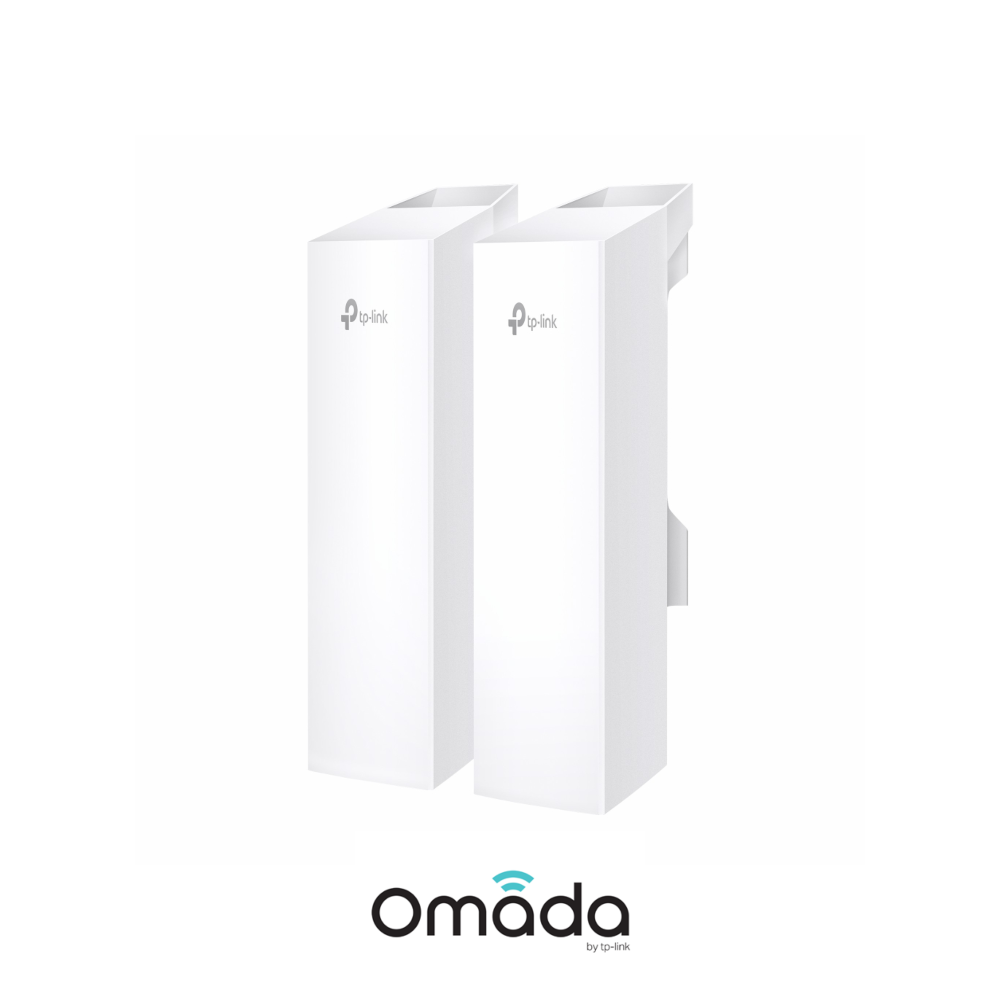

TP-Link Omada TL-EAP215-BRIDGEKIT(V2)
TP-Link Omada TL-EAP215-BRIDGEKIT(V2) 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 5Kms Range – Supports 12VDC Input and 24VDC PoE Input – 2* Passive PoE Injectors Included
TP-Link Omada TL-EAP215-BRIDGEKIT(V2) 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 5Kms Range – Supports 12VDC Input and 24VDC PoE Input – 2* Passive PoE Injectors Included
Key Features :-
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
- Ideal for long-range wireless transmission up to 5 km.*2
- Auto-pairing and agile LEDs for efficient deployment.
- 3× Gigabit Ethernet ports for more high-speed IP camera connections.*6
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
- Supports Passive PoE for flexible deployment (adapter included).
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|

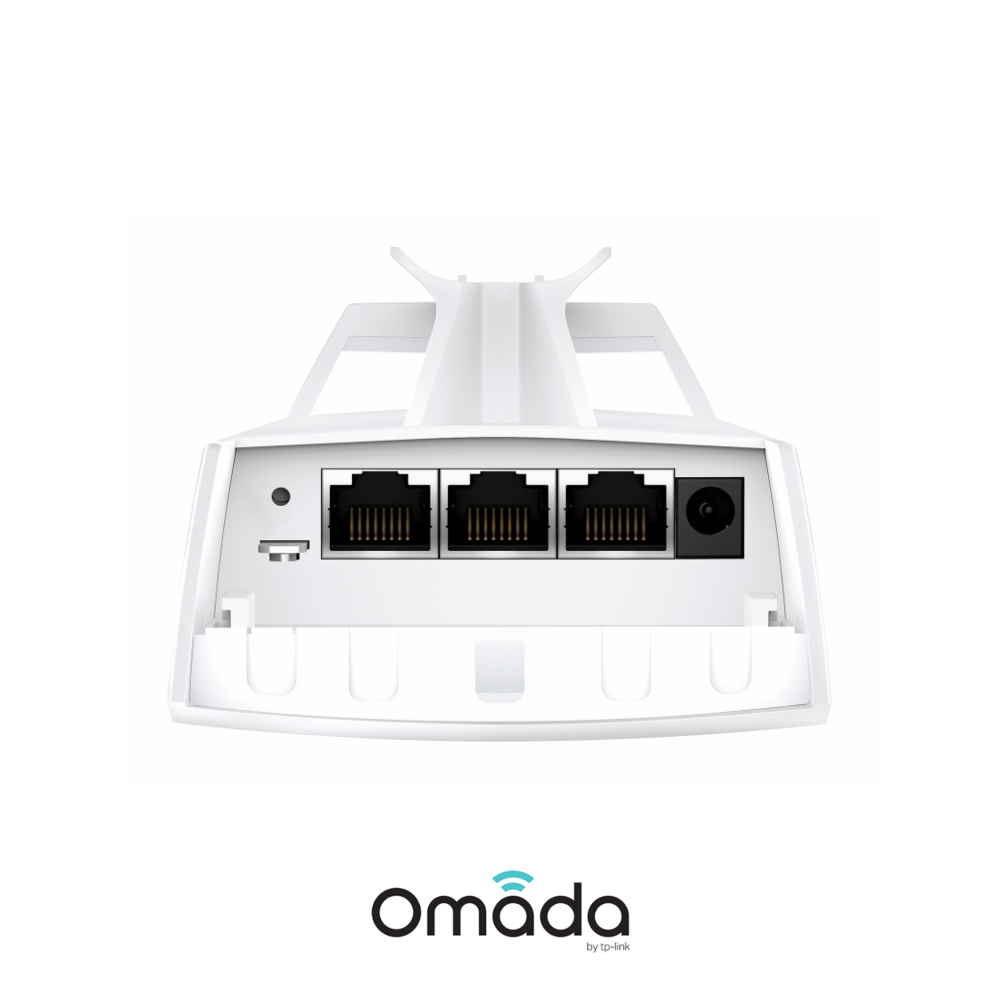

| Interface | 3x Gigabit Ethernet Ports*6 |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Max. Power Consumption | 11.5W |
| Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 11.0 dBi Horizontal:35°, Vertical: 35° |
| Weatherproof Enclosure | IP65 |

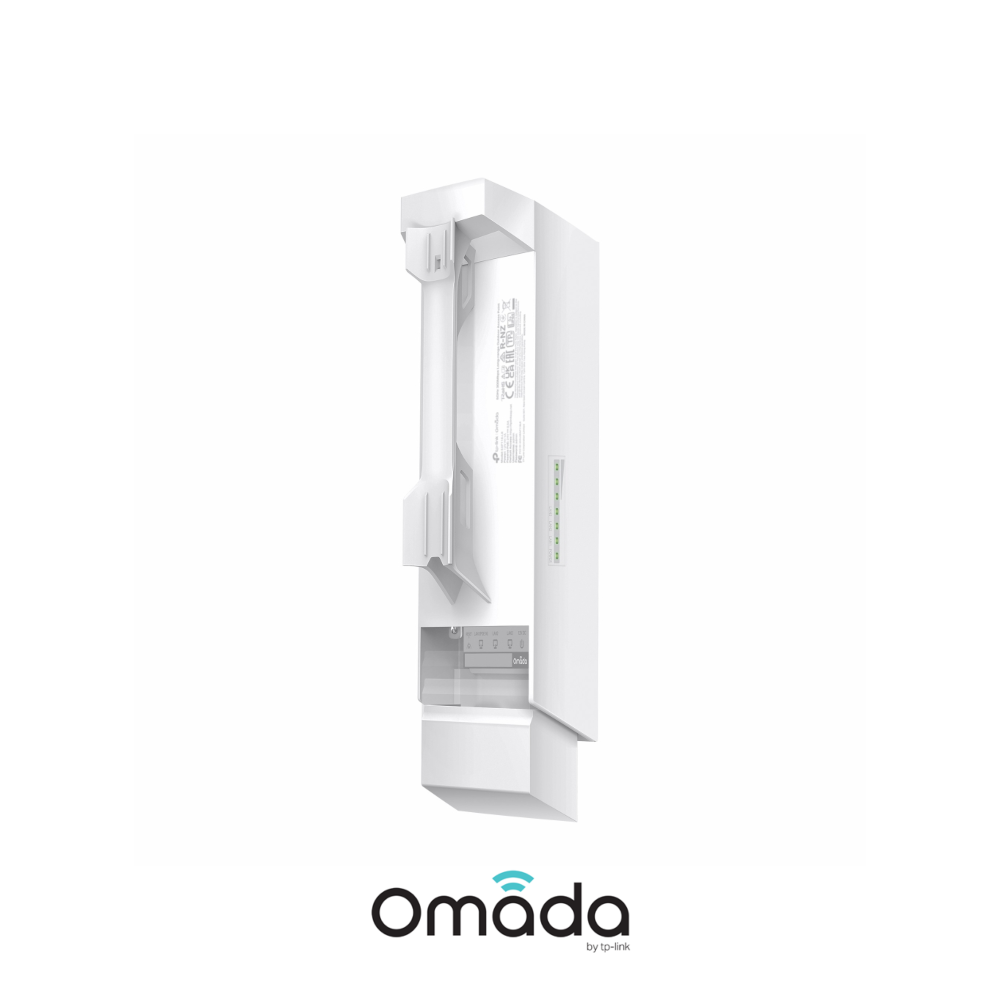

| Mounting | Pole mounting (Accessories included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| PtMP | Supports up to 1:4 multi-bridge connections. |
| Coverage | 5000m(16400ft)5 |
| Transmission Distance | 5000 m(16400 ft)5 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • Mesh*4 • MU-MIMO: 5G 2×2 MU-MIMO DL • Load Balance • Beamforming • Seamless Roaming(802.11r) • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP);• FCC: <22dBm (5 GHz band1/4) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP215-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications, along with the number of connected devices, were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
2. All products are tested in real outdoor environments. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.
3. Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
4. These functions require the use of an Omada SDN controller.
5. Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
6. Non-Omada devices connected to the wired LAN ports will not be recognized by the Omada controllers, preventing users from viewing their connection status. To address this issue, connect those non-Omada devices to an Omada switch that links to the bridge’s wired LAN ports.
