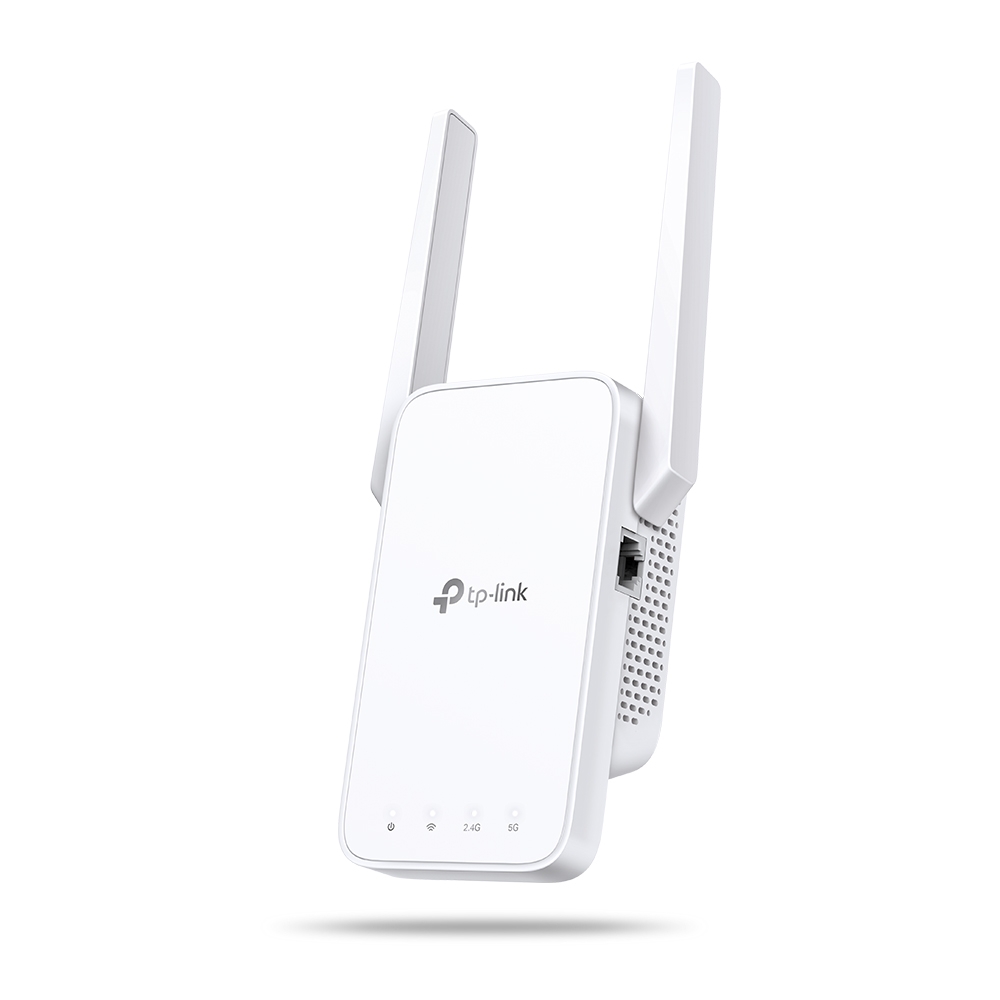

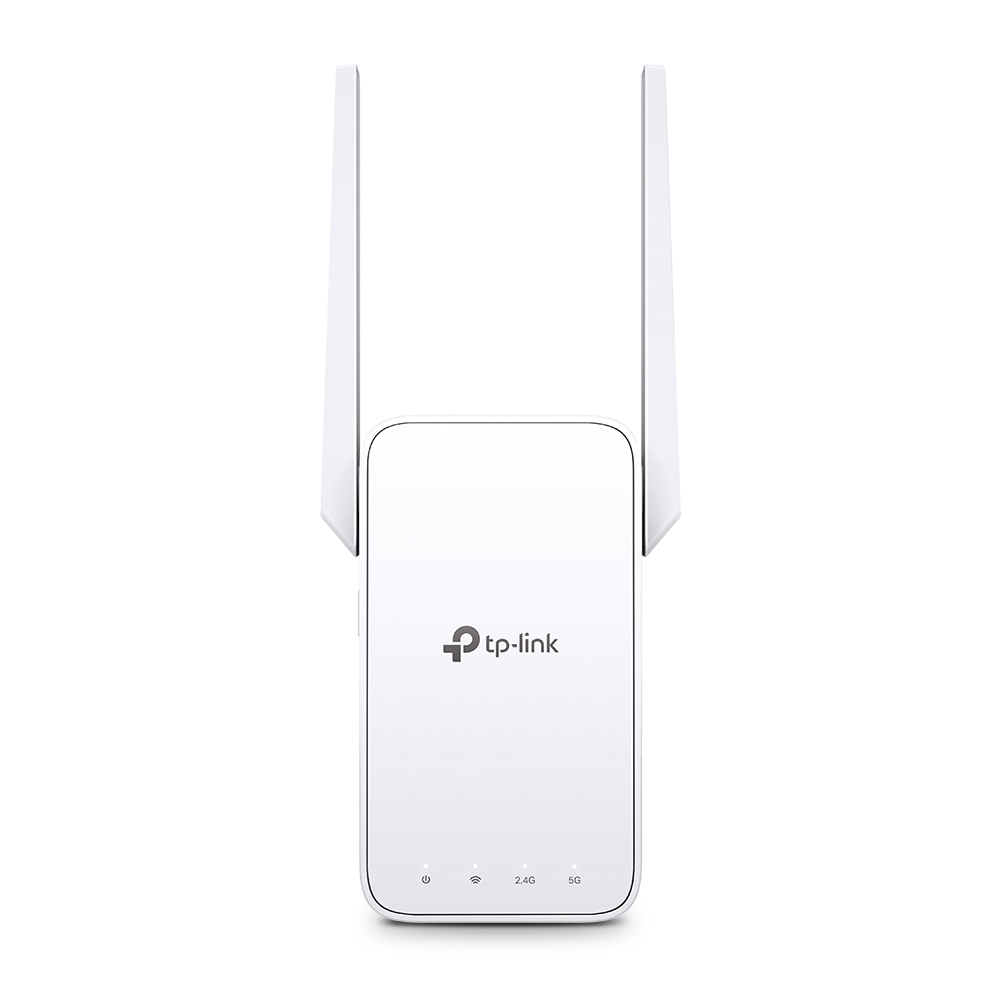

TP-Link RE315
TP-Link RE315 Dual-Band AC1200 Mesh Wi-Fi Range Extender – 1.2Gigabit Wireless – 2.4GHz + 5GHz Dual-Band Support
SKU: RE315
Categories: Mesh WiFi, Networking Products, Wireless Access Points, Wireless Bridge, Wireless Range Extenders
Tags: 2.4GHz Wireless, 5GHz Wireless, Dual-Band Wi-Fi, EasyMesh, TP-Link, WiFi, Wireless Range Extender
TP-Link RE315 Dual-Band AC1200 Mesh Wi-Fi Range Extender – 1.2Gigabit Wireless – 2.4GHz + 5GHz Dual-Band Support
Key Features :-
- Eliminate weak signal areas with whole home Wi-Fi coverage.
- 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band Wi-Fi connection ensures more stable wireless experience.†

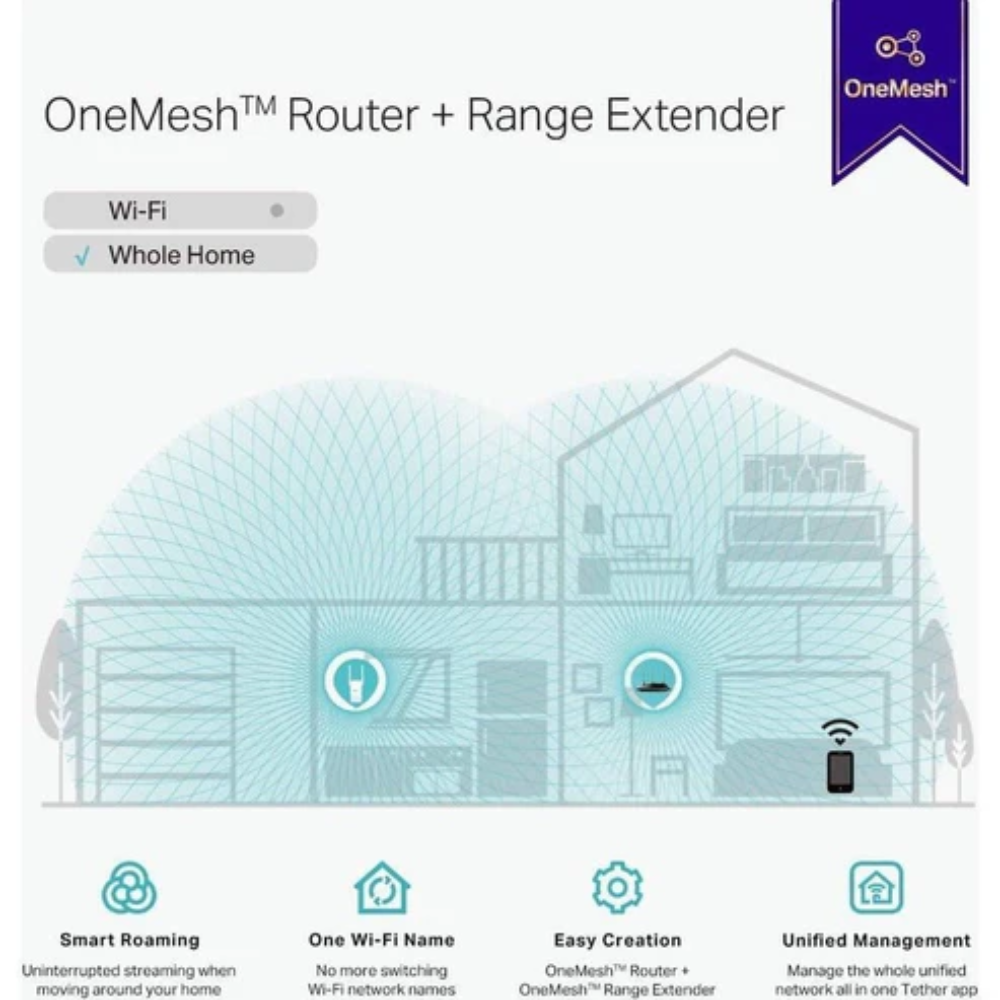

- EasyMesh-Compatible – Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
- Adaptive Path Selection – connects to the fastest connection path to the router automatically and runs at top-speed.
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.

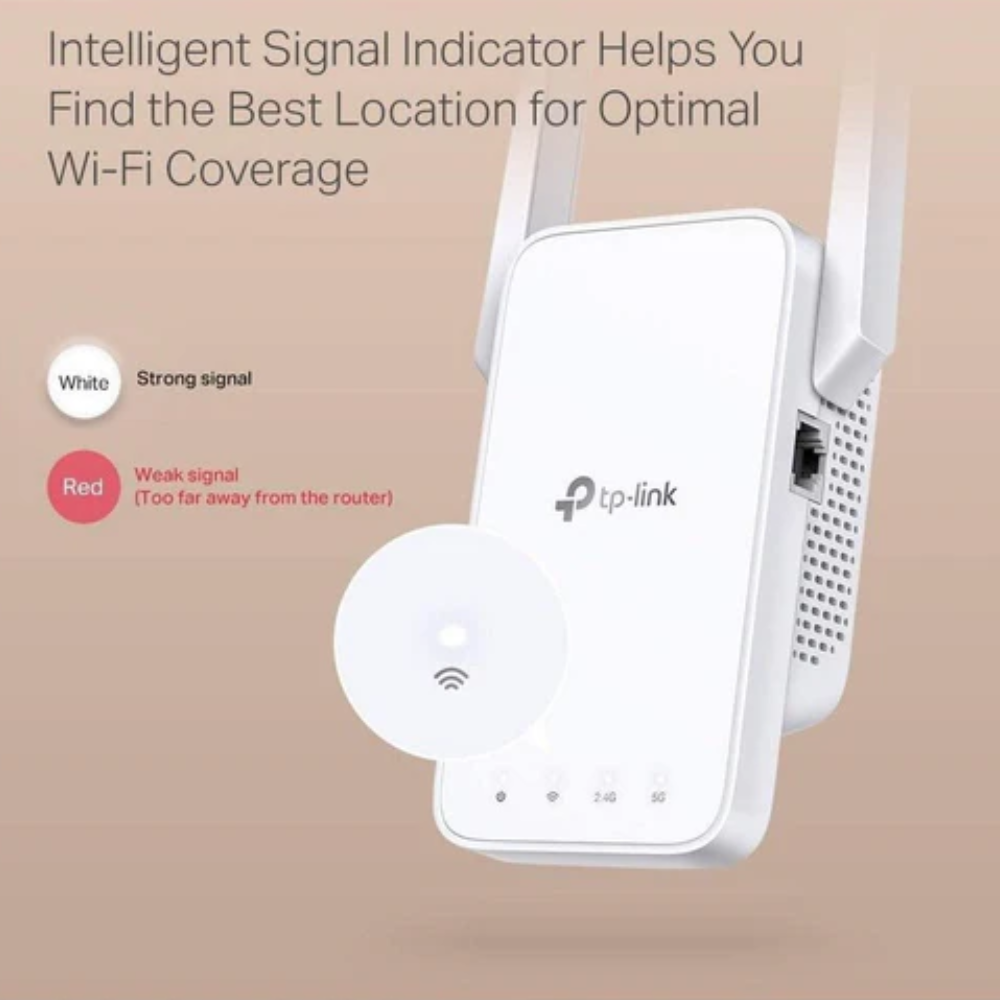

- Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
- Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI.

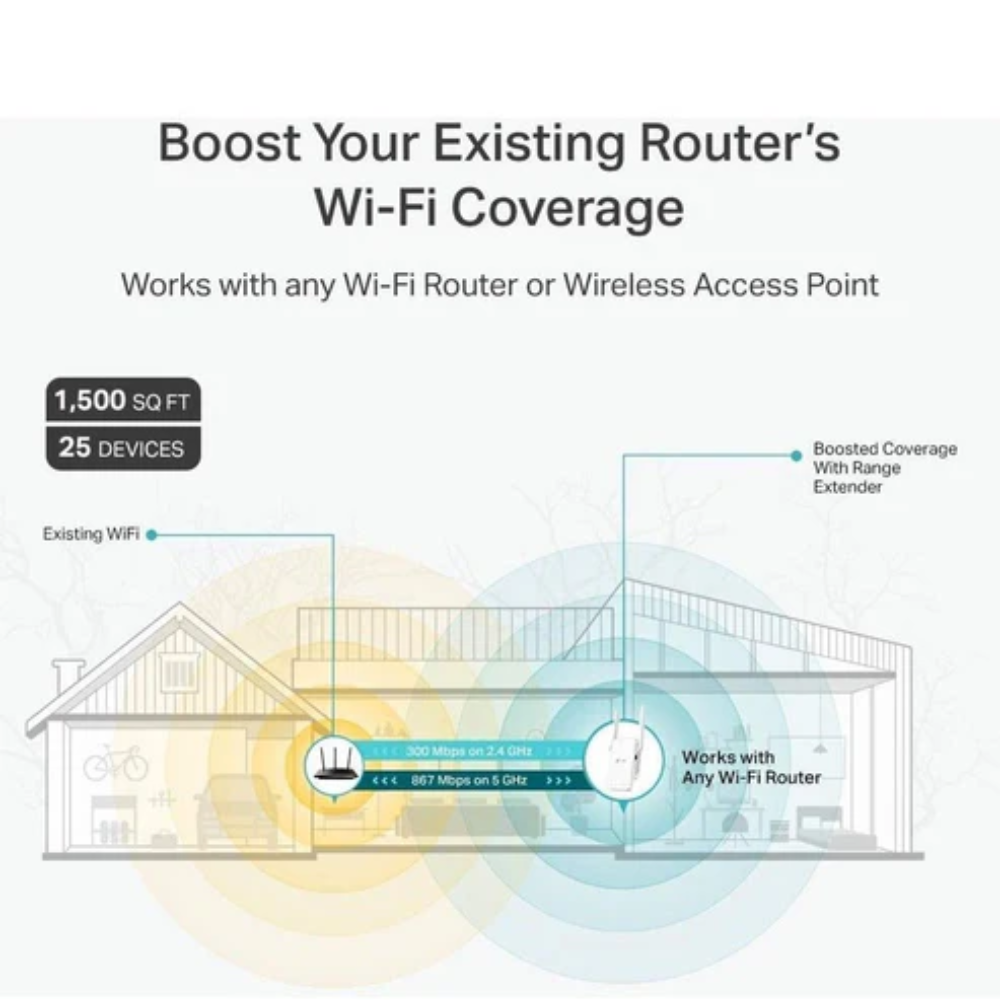

- Works with any Wi-Fi router or wireless access point.*

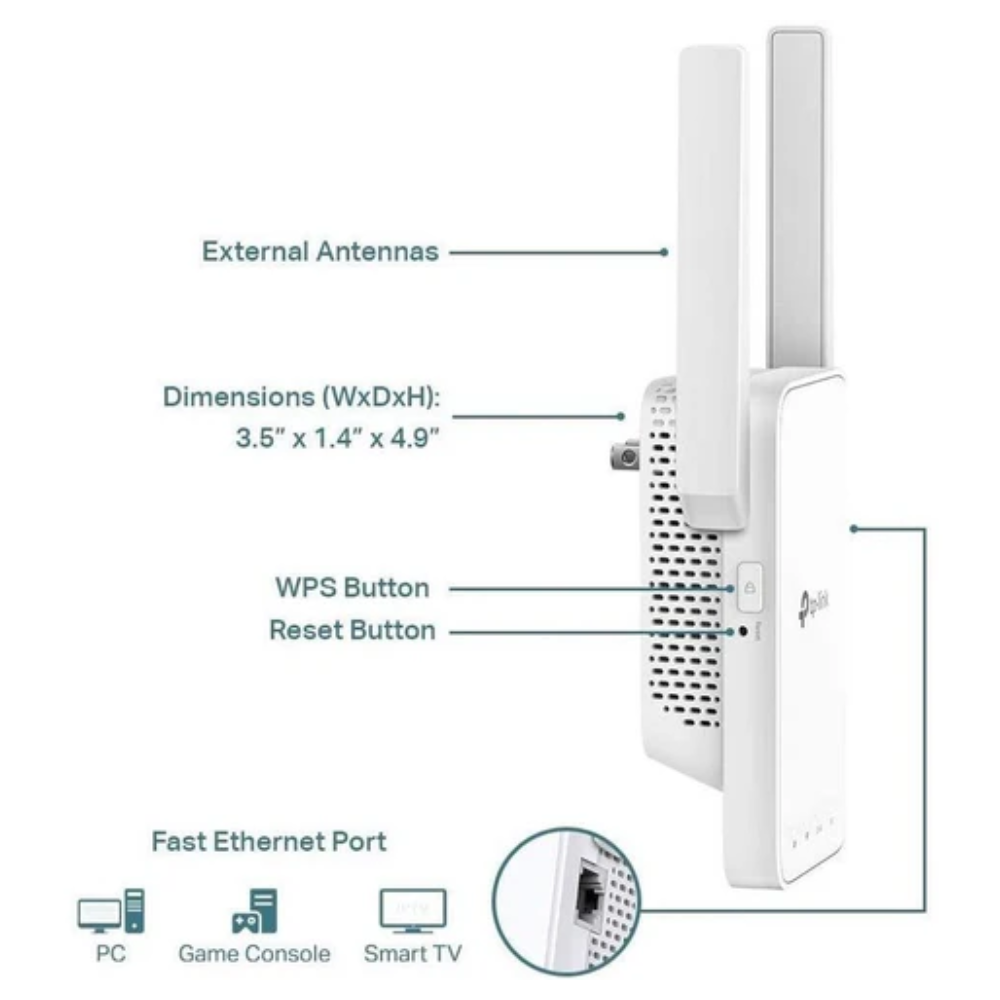

| Interface | 1 x 10/100Mbps Ethernet Port (RJ45) |
|---|---|
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Max. Power Consumption | 9.5W（max power consumption） |
| Dimensions ( W x D x H ) | 3.5×1.4×4.9 in. (89×35.0×124.1 mm) |
| Antenna | 2 External Antennas |
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
|---|---|
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5 GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -77dBm 11ac HT20 MCS0: -94dBm 11ac HT20 MCS8: -71dBm 11ac HT40 MCS0: -92dBm 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm 11ac HT80 MCS9: -62dBm2.4 GHz: 11g 54Mbps: -78dBm 11n HT20 MCS7: -76dBm 11n HT40 MCS7: -74dBm |
| Wireless Functions | Enable/Disable Wireless Radio DFS (the latest firmware and hardware version is required) Access Control LED Control Power Schedule Wi-Fi Coverage |
| Wireless Security | 64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions |
| Transmission Power | 2.4 GHz ≤20dBm, 5 GHz ≤30dBm |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server App management |
|---|---|
| Certification | CE, RoHS |
|---|---|
| Package Content | Wi-Fi Range Extender RE315 Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
