TP-Link TL-SG1005P-PD

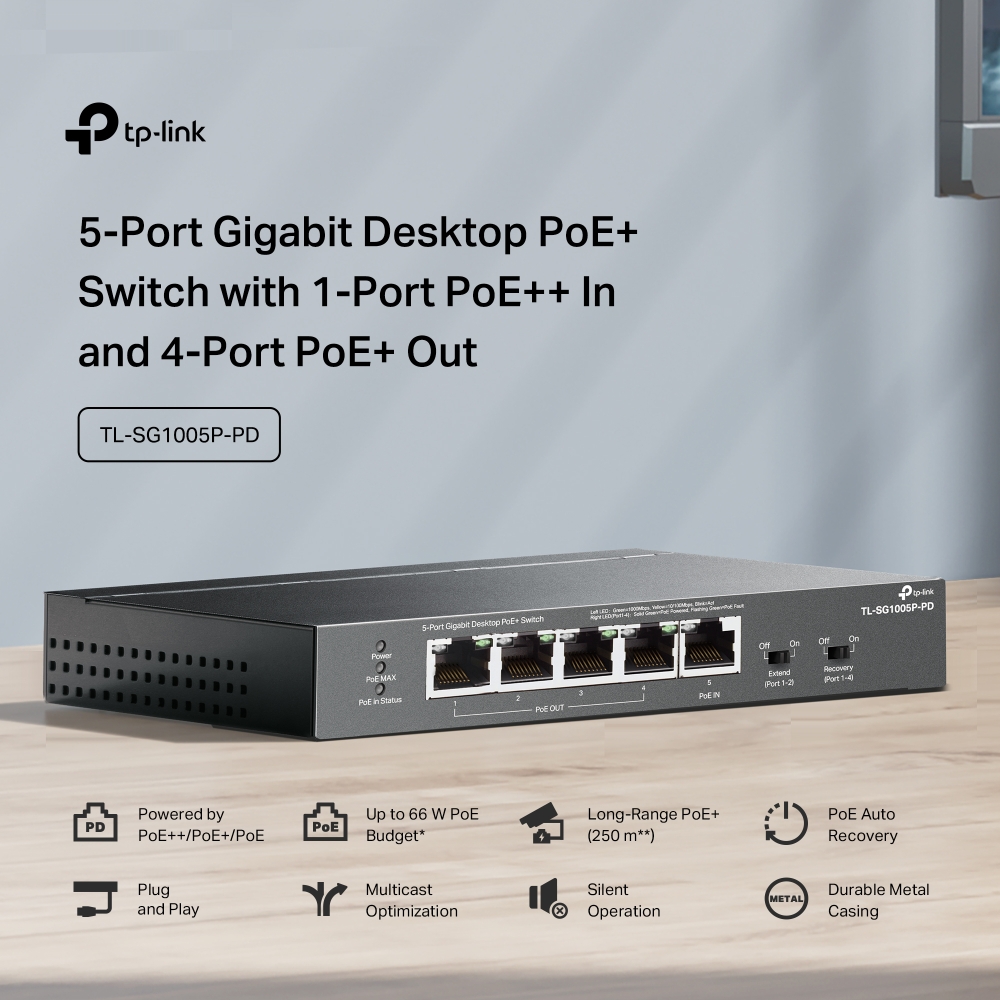

TP-Link TL-SG1005P-PD Gigabit PoE-Powered Unmanaged Network PoE Switch With 1 * PoE++ Input Port + 4 * 10/100/1000Mbps PoE Output Ports – Up To 66W PoE Power Output
SKU: TL-SG1005P-PD
Categories: Networking Products, PoE Switches, Unmanaged PoE Switches
Tags: 4x PoE, Gigabit, Network, PoE, PoE Powered, TP-Link, Unmanaged Switch
TP-Link TL-SG1005P-PD Gigabit PoE-Powered Unmanaged Network PoE Switch With 1 * PoE++ Input Port + 4 * 10/100/1000Mbps PoE Output Ports – Up To 66W PoE Power Output
Key Features :-
- Ports: 5 * 10 Mbps/100 Mbps/1 Gbps RJ45 ports

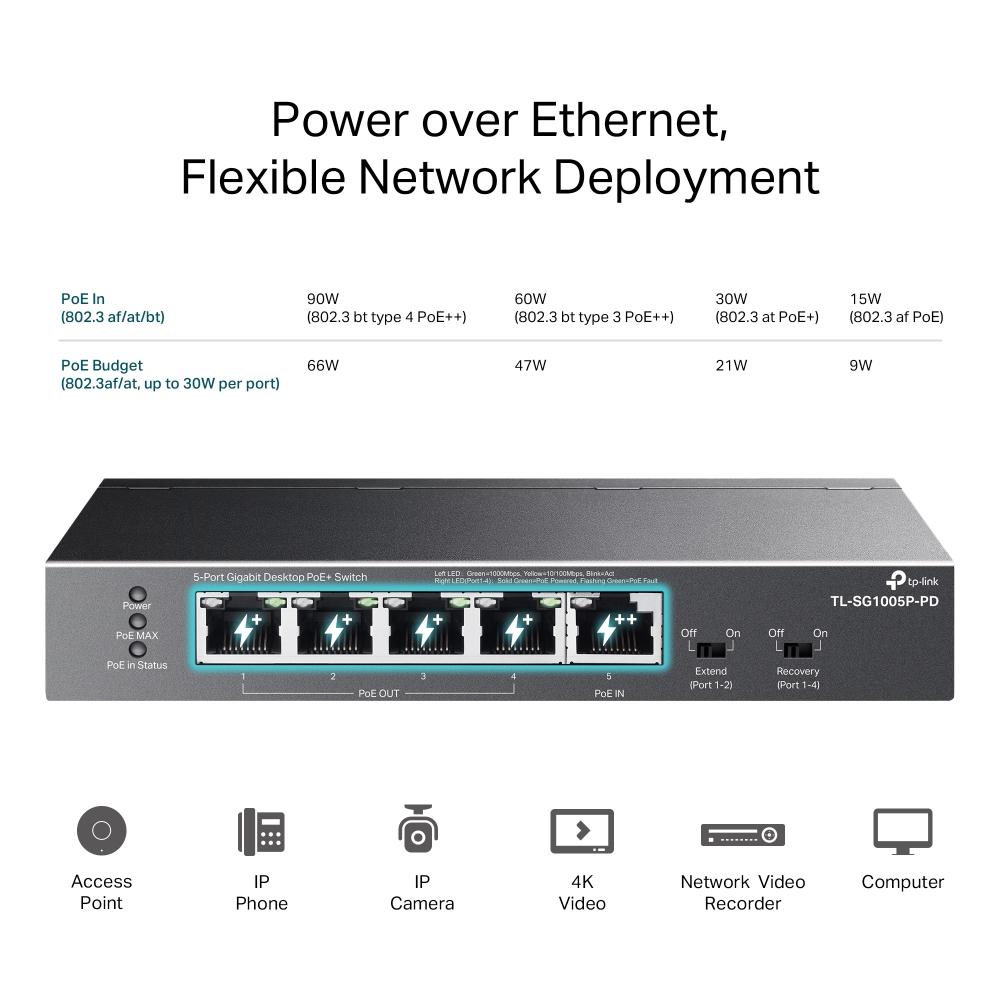

- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*

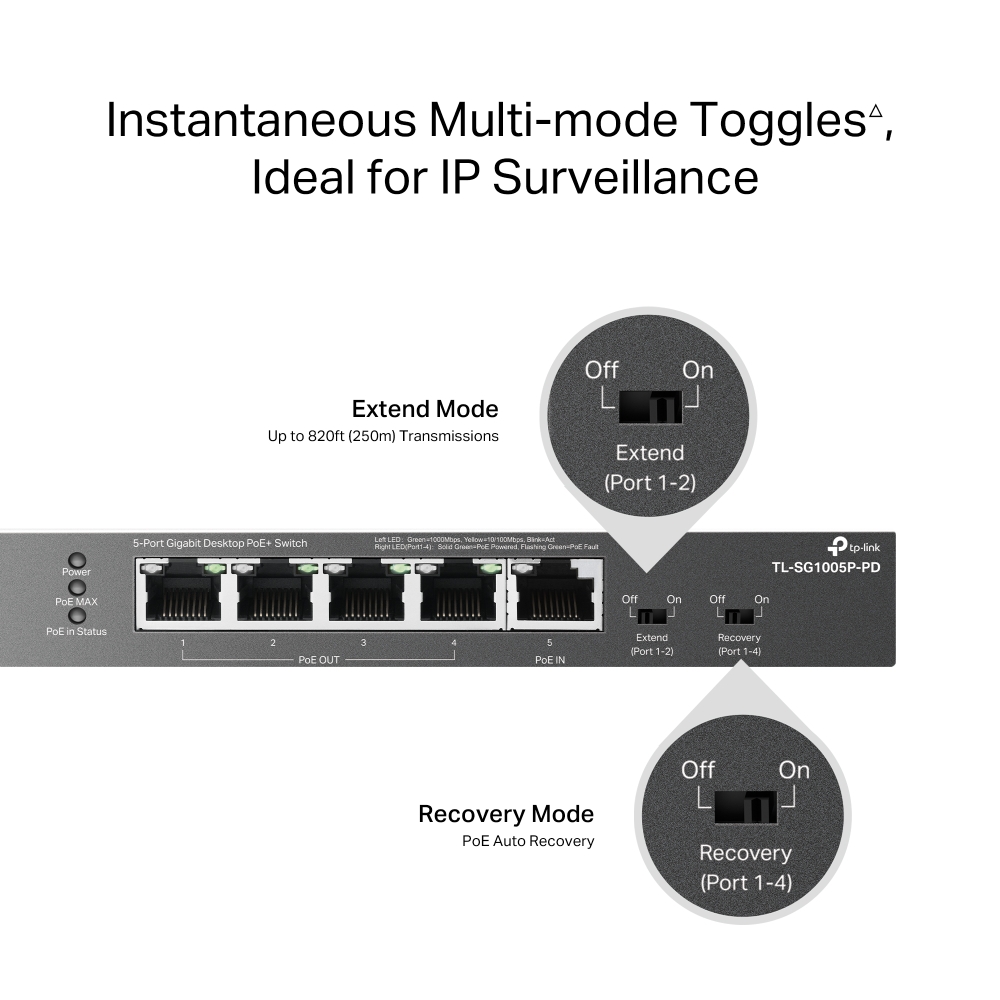

- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

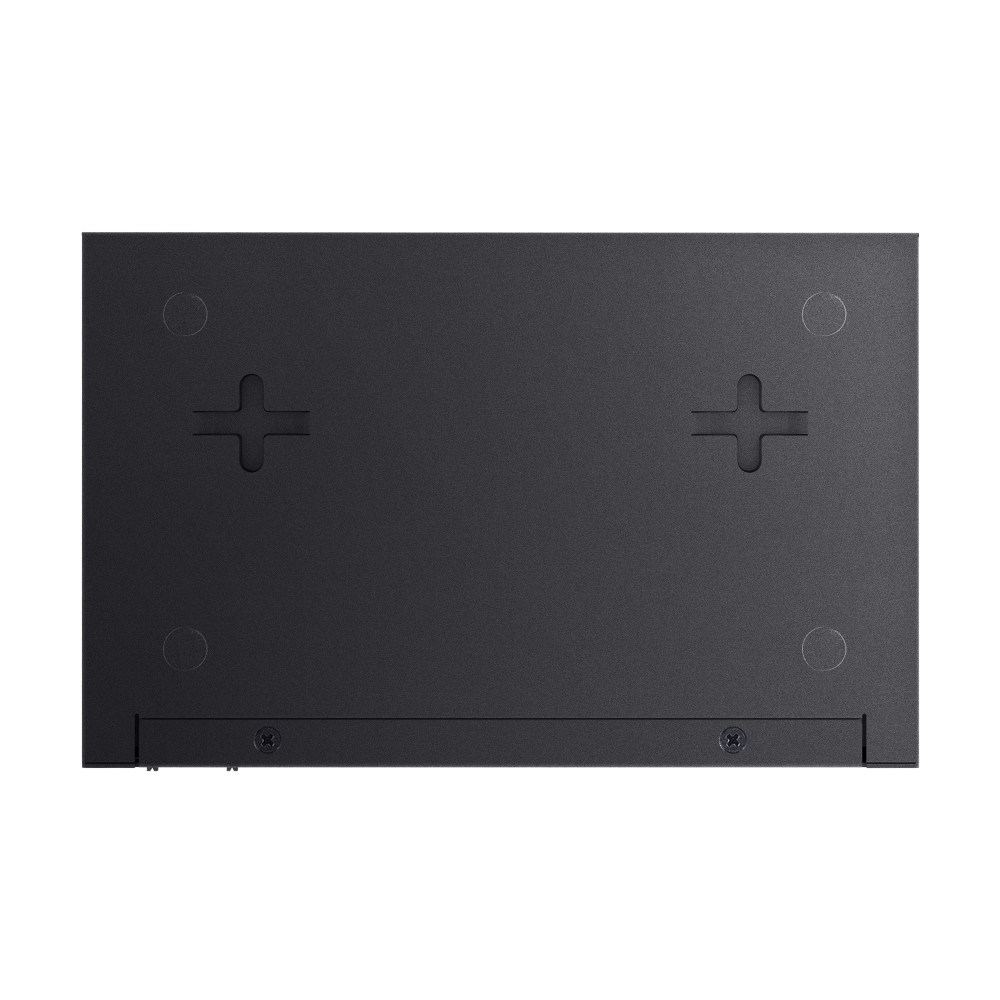

- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: No configuration and installation required.

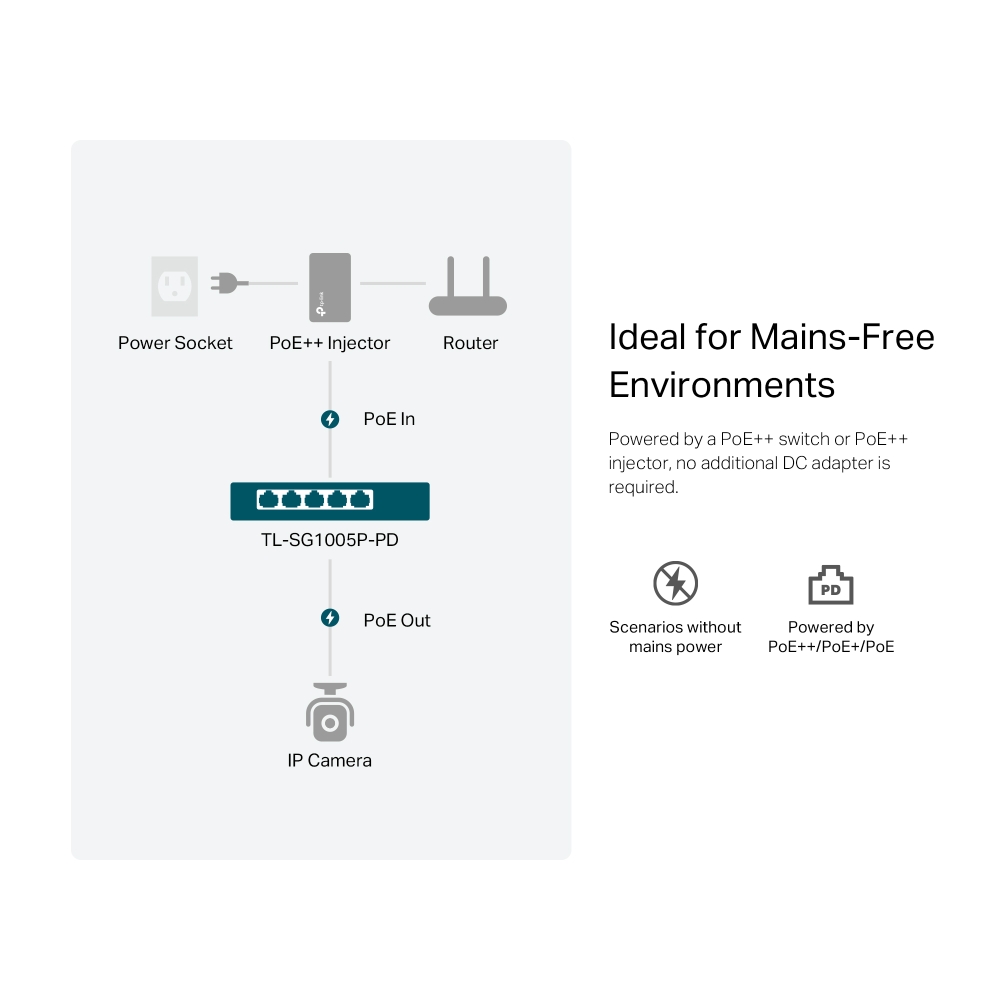

- Power Supply: The product only supports PoE power supply, not AC or DC power supply.
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p |
| Interface | • 5× 10/100/1000Mbps RJ45 Ports • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4) • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | Only Powered by PoE Device |
| PoE Ports (RJ45) | • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 • PoE Out Ports: Ports 1-4, compliance with 802.3af/at • PoE Power Budget: -66 W when powered by 802.3bt Type 4 (90 W) -47 W when powered by 802.3bt Type 3 (60 W) -21 W when powered by 802.3at (30 W) -9 W when powered by 802.3af (15.4 W) |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max. Power Consumption | • 2.68 W (90W PoE In, with no PD connected) • 68.59 W (90W PoE In, with 66 W PD connected) |
| Max. Heat Dissipation | • 9.112 BTU/h (90W PoE In, with no PD connected) • 233.206 BTU/h (90W PoE In, with 66 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2k |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • TL-SG1005P-PD • Installation Guide |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
