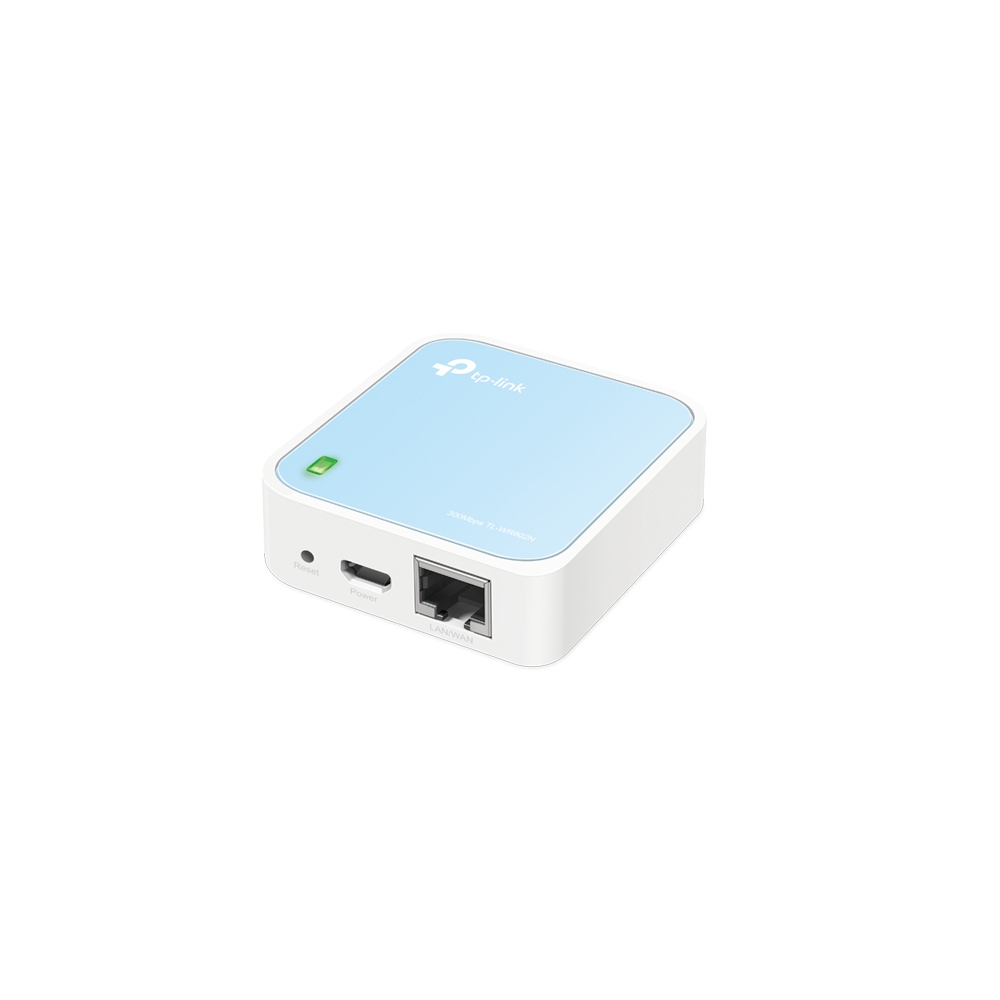

TP-Link TL-WR802N
TP-Link TL-WR802N 300Mbps Wireless N Nano Router – Supports Router / Repeater / Client / AP / Hotspot Functions
SKU: TL-WR802N
Categories: Gateways / Routers, Networking Products, Wireless Network Routers
Tags: Router, TP-Link, Wireless
TP-Link TL-WR802N 300Mbps Wireless N Nano Router – Supports Router / Repeater / Client / AP / Hotspot Functions
Key Features :-
- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
- Pocket-size – Ideal for home and travel use
- Supports Router, Repeater, Client, AP and hotspot operation modes
- Extend existing WiFi to improve signal strength and maximize coverage
- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
- Easy installation in minutes
| Standards and Protocols | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds | N300 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses
2× Fixed Antennas |
| WiFi Capacity | Legacy |
| Working Modes | Router Mode Access Point Mode Range Extender Mode Client Mode Hotspot Mode (WISP Mode) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
|---|---|
| Guest Network | 1× 2.4 GHz Guest Network |
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)* *Only Available in the Router and AP Modes. |
| Processor | Single-Core CPU |
|---|---|
| Ethernet Ports | 1× 10/100 Mbps WAN/LAN Port |
| Buttons | Reset Button |
| Power | 5 V ⎓ 1 A |
| Protocols | IPv4 IPv6 |
|---|---|
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP Comex DynDNS |
| Management Features | Tether App Webpage Check Web Emulator> |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
|---|---|
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| WiFi Transmission Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
|---|---|
| WiFi Reception Sensitivity | 270M: -70dBm@10% PER 130M: -75dBm@10% PER 108M: -88dBm@10% PER 54M: -78dBm@10% PER 11M: -100dBm@8% PER 6M: -92dBm@10% PER 1M: -100dBm@8% PER |
| Dimensions (W×D×H) | 2.2 × 2.2 × 0.7 in (57 × 57 ×18 mm) |
|---|---|
| Package Content | Wi-Fi Router TL-WR802N Power Adapter USB Cable RJ45 Ethernet Cable Quick Installation Guide Resource CD |
