TP-Link VIGI C540-4

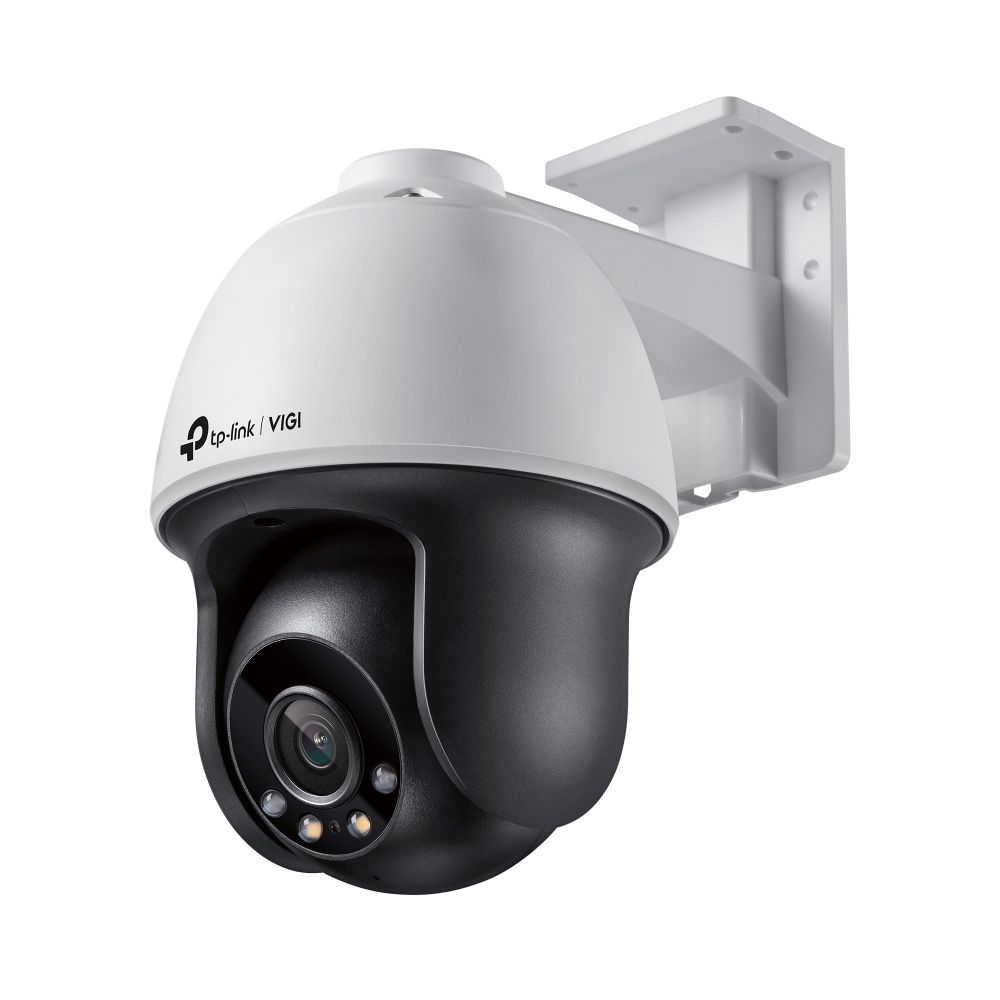

TP-Link VIGI C540-4 EasyCam Series 4MP PoE IP AI LightPro Smart-Dual-Light (30m IR + 30m White-Light) Full-Colour IP Weatherproof PT (Pan + Tilt) Auto-Tracking Camera with 4mm Fixed Lens – 2-Way Audio + Active-Deterrence
SKU: C540-4
Categories: CCTV / Surveillance, IP Cameras, IP PTZ Cameras, IP Surveillance
Tags: 2-Way Audio, 4MP, Active Deterrence, AI, Artificial Intelligence, Auto-tracking, Built-in Mic, Camera, Full Colour, Human Detection, IP, IP66 Rated, IR, NDAA, Network, Perimeter Protection, PoE, PTZ, Siren, Smart Dual Light, Smart Hybrid Light, Speaker, Strobe, TP-Link, Vehicle Detection, VIGI, VIGI LightPro, VIGI People Counting, VIGI-AI, Weatherproof, White Light LED
TP-Link VIGI C540-4 EasyCam Series 4MP PoE IP AI LightPro Smart-Dual-Light (30m IR + 30m White-Light) Full-Colour IP Weatherproof PT (Pan + Tilt) Auto-Tracking Camera with 4mm Fixed Lens – 2-Way Audio + Active-Deterrence
Key Features :-
- 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
- Powerful Pan Tilt: Customized patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
- Waterproof: Reliable IP66 for stable outdoor performance.
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
- VIGI App: Manage your security from the palm of your hand with the VIGI app.
TP-Link VIGI 4E Principles Flyer
TP-Link Omada & VIGI United Solutions Flyer
| Image Sensor | 1/3” Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | 4 mm: F1.6 |
| Lens | Fixed focal lens (2.8 mm / 4 mm / 6 mm) |
| Lens Mount | M12 |
| Minimum Illumination | 0 lux with IR/white Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Weatherproof Rating | IP66 |
| IR Working Distance | 30m |
| Pan/Tilt Range | Pan: 0° to 350°, Tilt: 0° to 120° |
| Illumination Distance | 30 m |
| Viewing Angle | (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Digital Zoom | Yes |
| Type | Fixed Focal Lens |
|---|---|
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | 4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Lens Mount | M12 |
| DORI Distance | 4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| Pan/tilt Range | Pan: 0° to 350°, Tilt: 0° to 120° |
|---|---|
| Pan/tilt Speed | Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes |
| Park Action | Yes |
| 3D Positioning | Preset, Patrol Scan |
| Range | Pan: 0° to 348° Tilt: 0° to 120° |
|---|---|
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
|---|---|
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2560 X 1440 |
|---|---|
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 640×480, 352×288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
|---|---|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio Communication | Two-Way Audio |
|---|---|
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
|---|---|
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
|---|---|
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
|---|---|
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| Button | Reset Button |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio | N/A |
| Operating Temperature | -30–60 °C |
|---|---|
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories (Screws, Drywall Anchors, Hex Key) |
| Dimensions( H X W X D ) | 120 × 172 × 198 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Max. Power Consumption | 12V DC: Max 14W PoE: Class 4 |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 4) |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 172 × 198 mm |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| Video Compression | Main stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264 |
|---|---|
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Frame Rate & Resolutions | Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560×1440, 2304×1296, 2048×1280, 1920x1080Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240 |
| Max. Resolution | 2560 X 1440 |
| Video Streaming | Main Stream Sub-Stream |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| Privacy Mask | Up to 4 Masks |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, Human Detection |
|---|---|
| Basic Event | Motion Detection, Camera Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
