TP-Link VIGI C540-4G

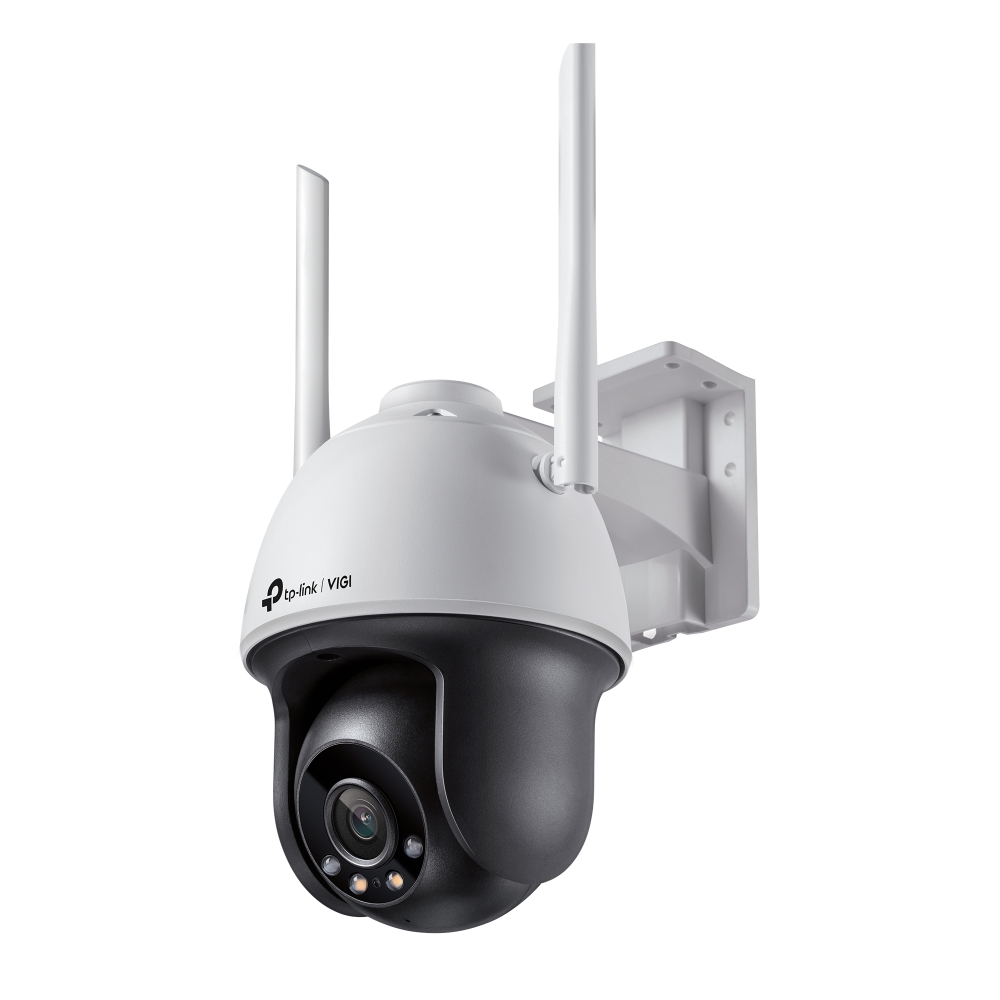

TP-Link VIGI C540-4G EasyCam Series 4G LTE 4MP AI Smart-Dual-Light (30m IR + 30m White-Light) Full-Colour IP Weatherproof PT (Pan + Tilt) Auto-Tracking Camera with 4mm Fixed Lens – 2-Way Audio + Active-Deterrence
SKU: C540-4G
Categories: CCTV / Surveillance, IP 4G / LTE Cameras, IP Cameras, IP Surveillance
Tags: 2-Way Audio, 4G, 4MP, Active Deterrence, AI, Artificial Intelligence, Auto-tracking, Built-in Mic, Camera, Fixed Lens, Full Colour, Human Detection, IP, IP66 Rated, IR, LTE, NDAA, Network, Perimeter Protection, PTZ, Siren, Smart Dual Light, Smart Hybrid Light, Speaker, Strobe, TP-Link, Vehicle Detection, VIGI, VIGI LightPro, VIGI People Counting, VIGI-AI, Weatherproof, White Light LED
TP-Link VIGI C540-4G EasyCam Series 4G LTE 4MP AI Smart-Dual-Light (30m IR + 30m White-Light) Full-Colour IP Weatherproof PT (Pan + Tilt) Auto-Tracking Camera with 4mm Fixed Lens – 2-Way Audio + Active-Deterrence
Key Features :-
- 4MP Super-High Definition and 24h Full-Colour
- 4G Mobile Networking
- 360° Monitoring and Auto Tracking
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66† Waterproof and Onboard Storage§
TP-Link VIGI 4E Principles Flyer
TP-Link Omada & VIGI United Solutions Flyer
| Image Sensor | 1/3.06” Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Type | Fixed Focal Lens |
|---|---|
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° |
| Lens Mount | M12*0.5 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 120° |
|---|---|
| Pan/tilt Speed | • Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s• Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PT and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| Range | • Pan: 0° to 348° • Tilt: 0° to 120° |
|---|---|
| IR LED | • Quantity: 2 • Range: 30m • Wavelength: 850nm |
|---|---|
| White LED | • Quantity: 2 • Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2560 X 1440 |
|---|---|
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 640×480, 352×288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 3 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure, WDR, • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation (90°/270°) |
|---|---|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio Communication | Two-Way Audio |
|---|---|
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Protocol | • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • DNS • RTSP • NTP • UPnP UDP • SSL/TLS • FTP/SFTP • RTP • IPv4 • ARP • SMTP |
|---|---|
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 2 Main Streams & 2 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Standard | LTE-TDD/LTE-FDD/WCDMA |
|---|---|
| SIM Type | Nano SIM |
| Category | 4 |
| Frequency | • LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8 |
| Uplink and Download Data Rate | Uplink: 50 Mbps, Downlink: 150 Mbps |
| Antenna | • Quantity: 2
• Type: • Gain: |
| Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • People Detection • Vehicle Detection |
|---|---|
| Basic Event | • Motion Detection • Video Tampering Detection • Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
|---|---|
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card§, Up to 512 GB |

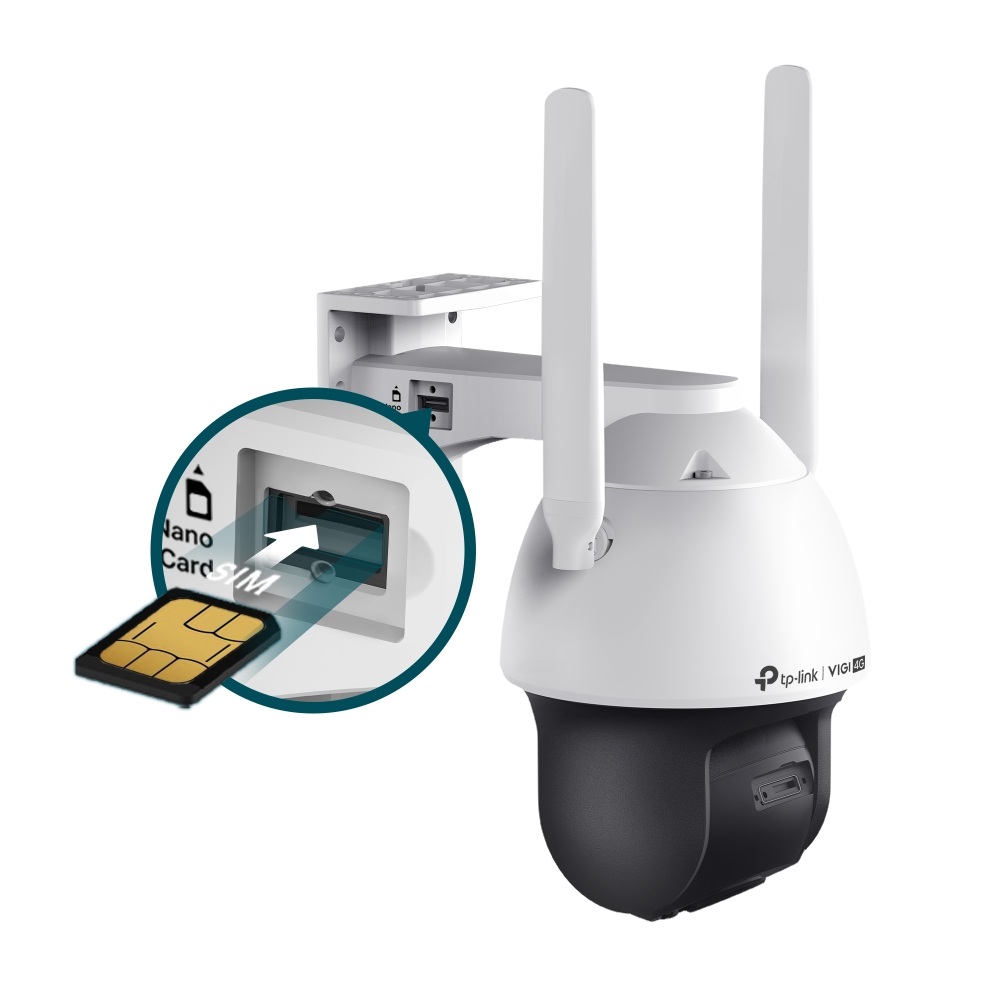

| Built-in Nano-SIM Card Slot | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Operating Temperature | -30–60 °C |
|---|---|
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter |
| Material | Plastic |
| Net Weight | 0.69 Kg |
| Gross Weight | 1.16 Kg |
| Power Supply | 12V DC/1A, 5.5mm Coaxial Power Plug |
| Antenna | • Quantity: 2
• Type: • Gain: |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 182 × 201 mm (excluding antennas) |
| Certifications | CE, RCM, BSMI, RoHS, NCC |
