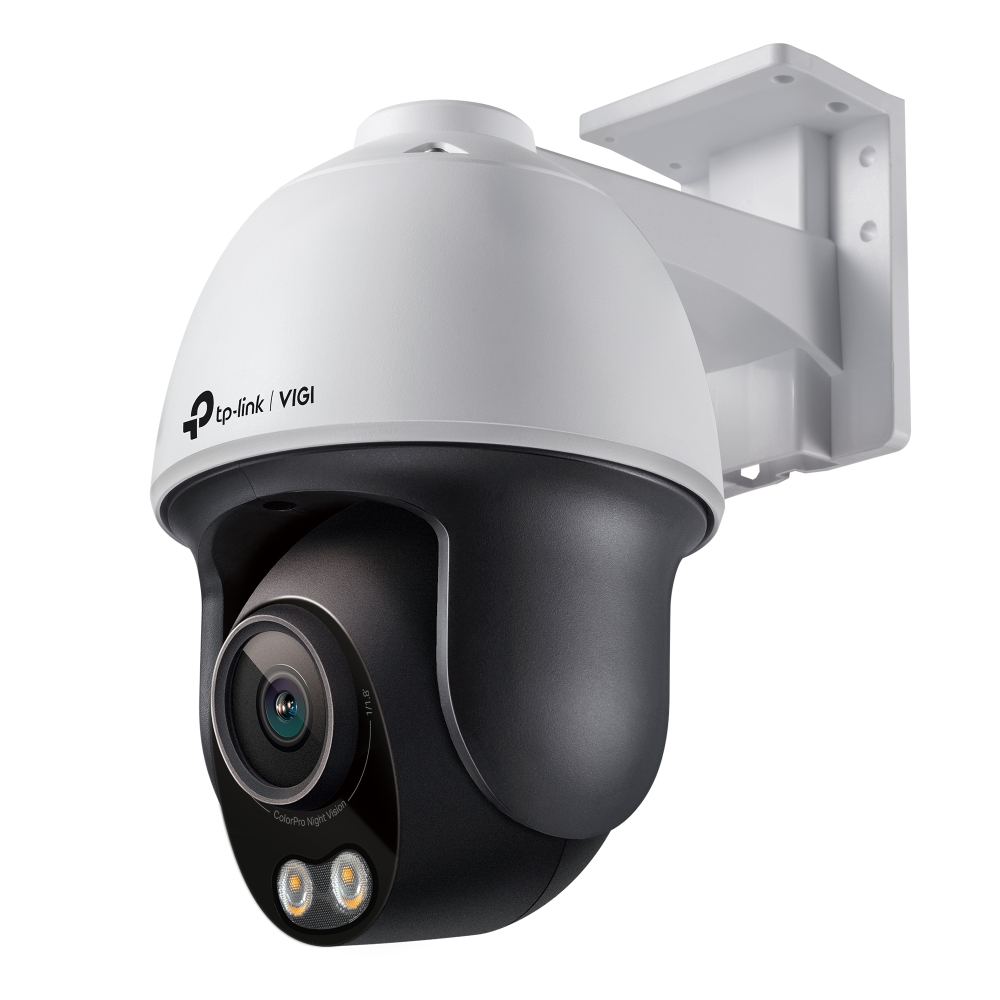

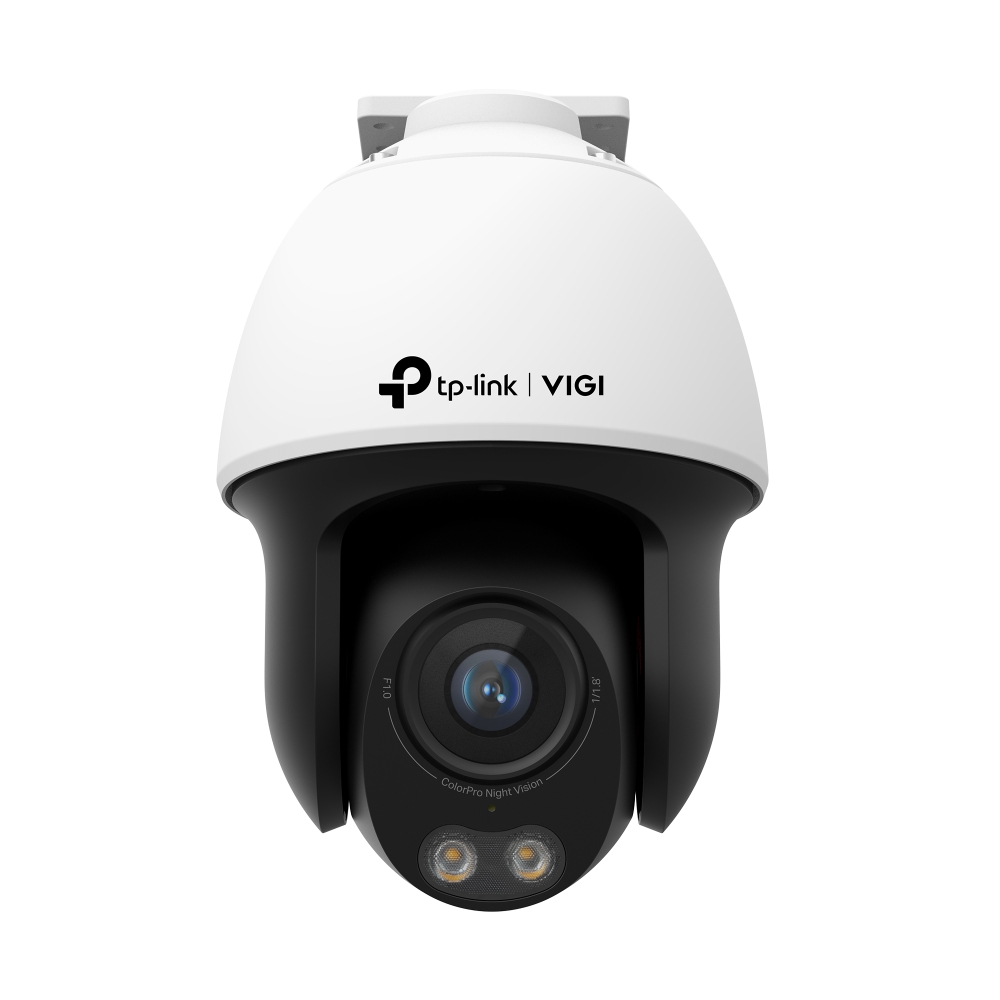

TP-Link VIGI C540S EasyCam VIGI ColorPro 4MP AI Smart-Dual-Light (30m IR + 30m White-Light) Full-Colour Ultra-Low-Light PoE IP Weatherproof PT (Pan + Tilt) Auto-Tracking Camera with 4mm Fixed Lens – 2-Way Audio + Active-Deterrence

Key Features :-

  • Ultra-Low Light Colour Night Vision
  • 360° Monitoring and Auto Tracking
  • People & Vehicle Analytics*
  • Human & Vehicle Classification
  • Smart Detection
  • Active Defense and Two-Way Audio
  • H.265+ Compression Technology
  • IP66 Waterproof and Onboard Storage§

TP-Link VIGI Product-Page

TP-Link VIGI Brochure

TP-Link VIGI 4E Principles Flyer

TP-Link Omada & VIGI United Solutions Flyer









VIGI Camera Human & Vehicle Classification



VIGI Camera Human & Vehicle Analysis



VIGI Camera_Active Defence_2Way Audio_Banner







CAMERA

Image Sensor 1/1.79” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.0005 Lux; 0 Lux with White Light
Day/Night Mechanism N/A
Day/Night Switch Unified/Scheduled/Auto

LENS

Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.0±5%
FOV 4mm:
Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
Lens Mount M16*P 0.5
DORI Distance 4 mm:
Detect: 63 m (207 ft)
Observe: 26 m (86 ft)
Recognize: 13m (41 ft)
Identify: 6 m (21 ft)

PTZ

Pan/tilt Range Pan: 0° to 348°, Tilt: 0° to 105°
Pan/tilt Speed Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/sTilt Speed:
Configurable from 8° to 44°/s, Preset Speed: 44°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Yes;
Auto restore to previous PTZ and lens status after power failure
Park Action Yes;
Preset; Patrol Scan
3D Positioning Yes

Angle Adjustment (Manual)

Range Pan: 0° to 348°
Tilt: 0° to 105°

ILLUMINATOR

IR LED N/A
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution 2688 x 1520
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:
2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:
704×576, 640×480, 352×288, 320×240
Third Stream • Frame Rate: 15fps
• Resolution: 1280×720
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC
Wide Dynamic Range 120dB
Note: When Face Recognition s is enabled, only DWDR is supported.
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes

AUDIO

Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event • Intrusion Detection
• Line-Crossing Detection
• People Detection
• Vehicle Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• Face Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push

Deep Learning Function

People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection Supports Simultaneous Detection and Capture of Human Body and Vehicle

INTERFACES

Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port

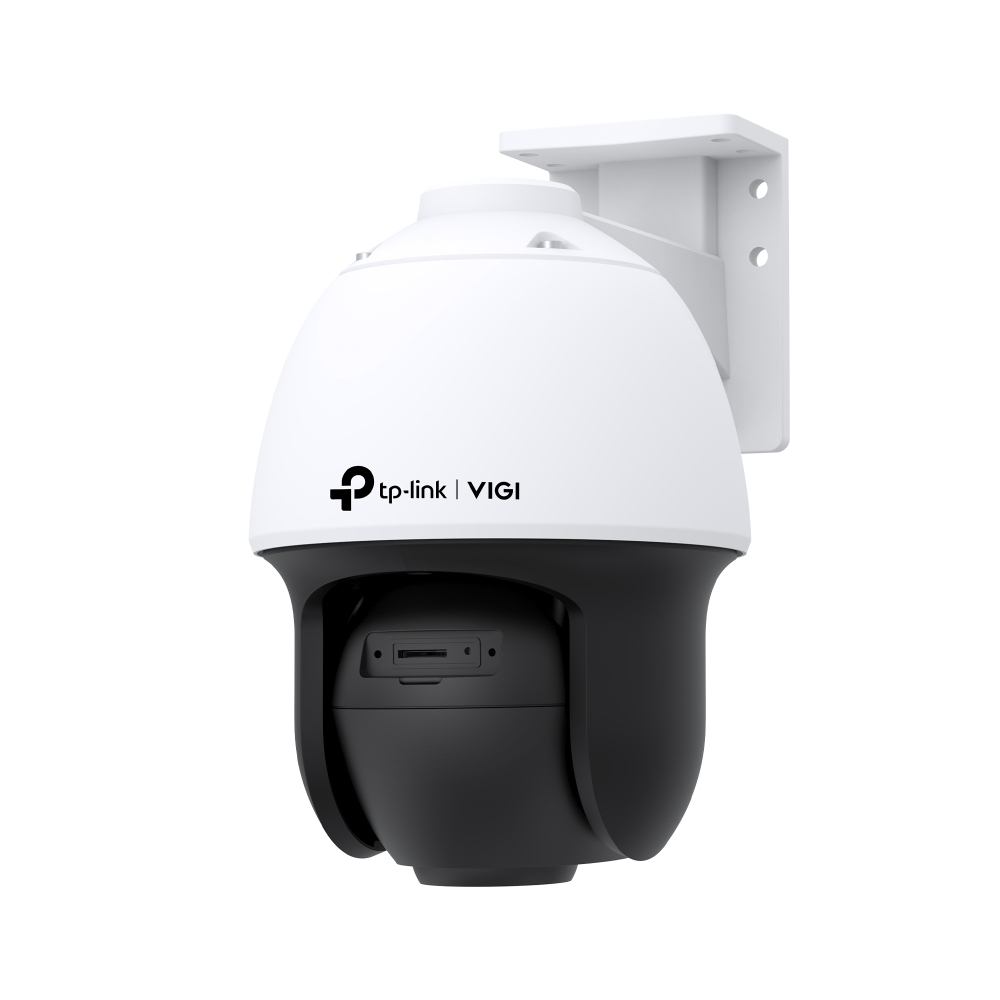

On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB§
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio N/A

GENERAL

Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Content VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Plastic
Power Supply 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug
PoE: 802.3at, class 4, Max. 16.47 W
Protection IP66
Product Dimensions (L x W x H) 120 × 172 × 203 mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
