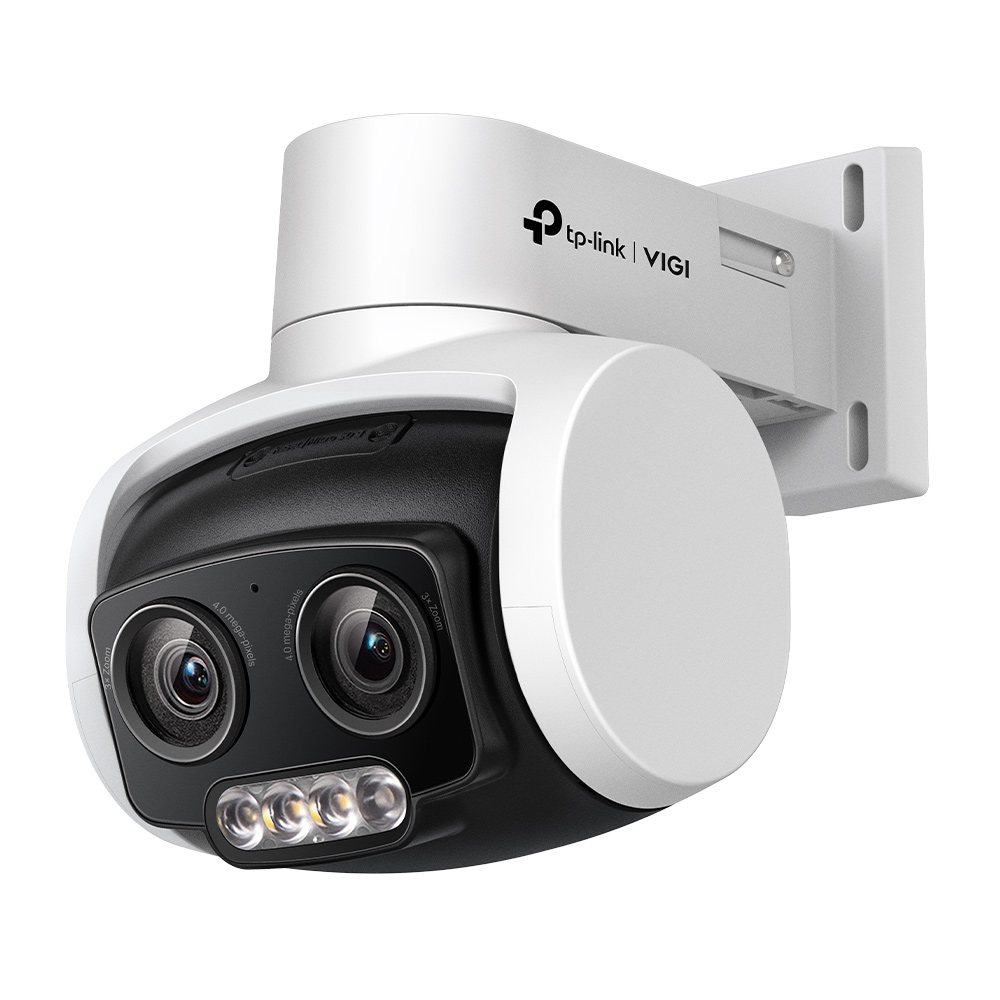

TP-Link VIGI C540V
TP-Link VIGI C540V EasyCam LightPro 4MP AI Smart-Dual-Light (30m IR + 30m White-Light) Full-Colour Dual-Lens (1* 4mm + 1* 8mm) PoE IP Weatherproof PT (Pan + Tilt) Auto-Tracking Camera – 2-Way Audio + Active-Deterrence
SKU: C540V
Categories: CCTV / Surveillance, IP Cameras, IP PTZ Cameras, IP Surveillance
Tags: 2-Way Audio, 4MP, Active Deterrence, AI, Artificial Intelligence, Auto-tracking, Built-in Mic, Camera, Dual-Lens Camera, Fixed Lens, Full Colour, Human Detection, IP, IP66 Rated, NDAA, Network, Perimeter Protection, PoE, PTZ, Siren, Smart Dual Light, Smart Hybrid Light, Speaker, Strobe, TP-Link, Vehicle Detection, VIGI, VIGI LightPro, VIGI People Counting, VIGI-AI, Weatherproof
TP-Link VIGI C540V EasyCam LightPro 4MP AI Smart-Dual-Light (30m IR + 30m White-Light) Full-Colour Dual-Lens (1* 4mm + 1* 8mm) PoE IP Weatherproof PT (Pan + Tilt) Auto-Tracking Camera – 2-Way Audio + Active-Deterrence
Key Features :-
- 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
- 24h Full-Colour: Captures 24 hours of full-colour details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
- 3× Zoom: Allows for closer viewing of objects in expansive areas.
- Instant Zoom: Zooming is instant without suffering from delays and image dragging.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
TP-Link VIGI 4E Principles Flyer
TP-Link Omada & VIGI United Solutions Flyer
| Image Sensor | 1/3” Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Zoom | 3x Mixed Zoom |
| Focal Length | 4-12 mm (Mixed Zoom) |
|---|---|
| Aperture | F1.6 |
| FOV | Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 4 mm Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)• 8 mm Detect: 150 m (493 ft) Observe: 63 m (205 ft) Recognize: 30 m (98 ft) Identify: 15 m (49 ft) |
| Pan/tilt Range | Pan: 0° to 332°, Tilt: 0° to 120° |
|---|---|
| Pan/tilt Speed | Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/sTilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PTZ and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| Range | Pan: 0° to 332°, Tilt: 0° to 120° |
|---|---|
| IR LED | Quantity: 1 Range: 30m Wavelength: 850nm |
|---|---|
| White LED | Quantity: 3 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2560 X 1440 |
|---|---|
| Main Stream | Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080,1280×720 |
| Sub-Stream | Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 640×480, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
|---|---|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio Communication | Two-Way Audio |
|---|---|
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
|---|---|
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Smart Event | • Area Intrusion Detection • Line-Crossing Detection • People Detection • Vehicle Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound Detection |
|---|---|
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
|---|---|
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Operating Temperature | -30–60 °C |
|---|---|
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.43 Kg |
| Gross Weight | 0.66 Kg |
| Power Supply | 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 107× 136× 139 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
