TP-Link VIGI InSight PTZ5425
TP-Link VIGI InSight PTZ5425 AI (Artifical Intelligence) 5-Inch 4MP PoE IP Smart-Dual-Light (50m White-Light + 100m IR) Auto-Tracking Weatherproof PTZ Camera with 25x Optical Zoom Lens – Active-Deterrence Features With 2-Way Audio
SKU: PTZ5425
Categories: CCTV / Surveillance, IP Cameras, IP PTZ Cameras, IP Surveillance
Tags: 120dB True-WDR, 2-Way Audio, 25x Optical Zoom Lens, 4MP, Active Deterrence, AI, Artificial Intelligence, Auto-tracking, Built-in Mic, Full Colour, H265, Human Detection, Infrared, IP, IP66 Rated, IR, NDAA, Network, People Counting, PoE, PTZ, PTZ Camera, Smart Dual Light, Speaker, TP-Link, Vehicle Detection, VIGI, VIGI People Counting, VIGI-AI, Weatherproof
TP-Link VIGI InSight PTZ5425 AI (Artifical Intelligence) 5-Inch 4MP PoE IP Smart-Dual-Light (50m White-Light + 100m IR) Auto-Tracking Weatherproof PTZ Camera with 25x Optical Zoom Lens – Active-Deterrence Features With 2-Way Audio
Key Features :-
- 360° Wide-Area Coverage
- 25X Optical Zoom & 16X Digital Optical Zoom
- Intelligent Auto Tracking
- Up to 240°/S Pan Speed
- Red & Blue Flashing Lights and Sirens
- People & Vehicle Attributes Analytics‡
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP66 Weatherproof / K08 Vandal-Proof / 6kV Lightning Protecting
- Digital Defog / Bulit-in Lens Heater
- H.265+ Compression Technology
TP-Link VIGI 4E Principles Flyer
TP-Link Omada & VIGI United Solutions Flyer
| CAMERA | |
|---|---|
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/30000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
|---|---|
| Type | Motorized Varifocal Lens |
| Focal Length | 5.2-130 mm (25X Optical Zoom) |
| Aperture | Max. F1.6 |
| FOV | • Horizontal FOV: 2.30°-57.06° • Vertical FOV: 1.31°-32.74° • Diagonal FOV: 2.63°-65.01 |
| DORI Distance | Wide • D: 351 ft (107 m) • O: 144 ft (44 m) • R: 69 ft (21 m) • I: 36 ft (11 m)Tele • D: 8530 ft (2600 m) • O: 3553 ft (1083 m) • R: 1706 ft (520 m) • I: 853 ft (260 m) |
| PTZ | |
|---|---|
| Pan/tilt Range | Pan: 0° to 360°, Tilt: -23.6° to 97.8° |
| Pan/tilt Speed | Pan Speed: • Configurable from 0° to 160°/s • Preset Speed: 240°/sTilt Speed: • Configurable from 0° to 120°/s • Preset Speed: 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Pattern Scan | 32 path |
| Power-off Memory | Yes |
| Park Action | Yes Preset, Patrol Scan, Pattern Scan, Home |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Yes |
| PTZ Protocol | Pelco-D, Pelco-P |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: 0° to 360°, Tilt: -23.6° to 97.8° |
| ILLUMINATOR | |
|---|---|
| IR LED | • Quantity: 2 • Range: 328 ft (100 m)† • Wavelength: 850 nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Integrated Infrared-White LED | • Quantity: 2 • White LED Range: 164 ft (50 m)† |
| VIDEO | |
|---|---|
| Max. Resolution | 2688×1520 |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps• Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280 |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps• Resolution: 840×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Third Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps• Resolution: 1920×1080, 1280×960, 1280×720, 848×480, 704×576 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 • Third-stream: H.265/H.264/MJPEG |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 4096 Kbps to 16384 Kbps • Sub-Stream: 128 Kbps to 2048 Kbps • Third Stream: 768 Kbps to 16384 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • IR Light Intensity • HLC Adjustable • Low Illuminator |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| Defog | Digital Defog |
| Image Stabilization | EIS |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 8 Regions |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone Audio In Interface |
| Audio Output | Built-in Speaker Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams & 3 Third-streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Intrusion Detection • Line Crossing Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Human Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Camera Tampering • Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Upload Capture • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm • Smart Tracking |
| Smart Tracking | • Intelligent Auto Tracking (Human/Vehicle/Event-Triggered) • Manual Tracking (Joystick Support) |
| Deep Learning Function | |
|---|---|
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡ |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 2 Alarm In, 1 Alarm Out Red/Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| RS-485 Port | Yes |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
|---|---|
| Operating Temperature | -30 °C to 65 °C (-22 °F to 149 °F) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |

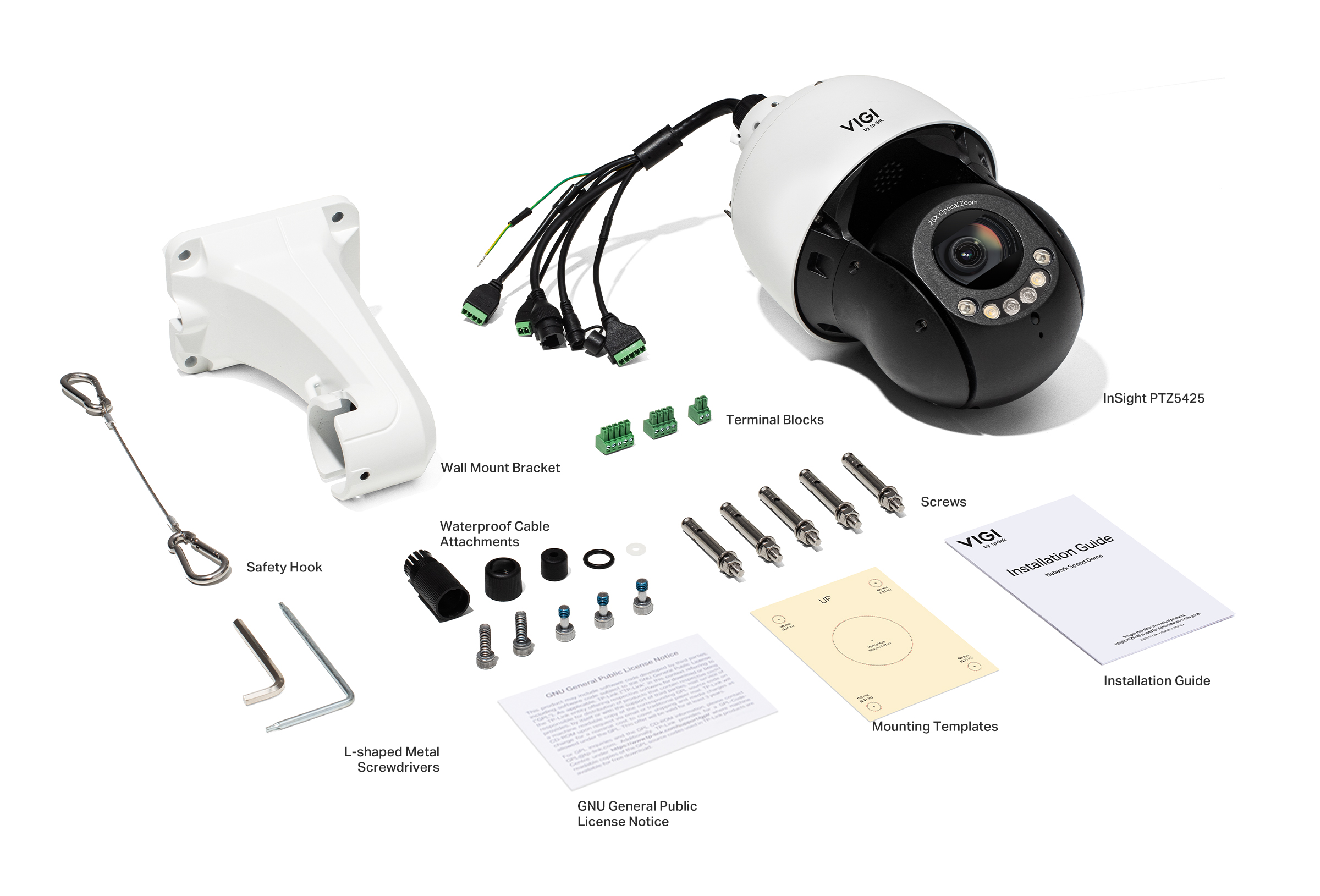

| Package Content | • VIGI Network Camera • Installation Guide • Waterproof Cable Attachments • Mounting Accessories |
| Material | Metal |
| Net Weight | 2.8 kg |
| Power Supply | DC • 12V DC ± 5%, Max. 21.6 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply:PoE • PoE: 802.3at, Class 4, Max. 24.7 W ErP Information |
| Protection | • IP66 Weatherproof • IK08 Vandal-Proof • 6 kV Lightning Protection |
| Product Dimensions (L x W x H) | Φ6.3 × 10.6 in (Φ160 × 270 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08, ONVIF |
