TP-Link VIGI InSight S345-4G
TP-Link VIGI InSight S345-4G LTE Active-Deterrence AI H265 4MP IP Smart-Dual-Light (50m IR + 30m White-Light) Full-Color 120dB True-WDR Weatherproof Bullet Camera with 4mm Fixed Lens – 2-Way Audio (Built-in Mic + Speaker)
SKU: S345-4G
Categories: CCTV / Surveillance, IP 4G / LTE Cameras, IP Bullet Cameras, IP Cameras, IP Surveillance
Tags: 120dB True-WDR, 2-Way Audio, 4G, 4G Camera, 4MP, AI, Artificial Intelligence, Built-in Mic, Bullet, Camera, Fixed Lens, Human Detection, Infrared, IP, IP67 Rated, IR, LTE, NDAA, Network, PoE, Speaker, TP-Link, Vehicle Detection, Vigi, VIGI LightPro, VIGI-AI, Weatherproof
TP-Link VIGI InSight S345-4G LTE Active-Deterrence AI H265 4MP IP Smart-Dual-Light (50m IR + 30m White-Light) Full-Color 120dB True-WDR Weatherproof Bullet Camera with 4mm Fixed Lens – 2-Way Audio (Built-in Mic + Speaker)
Key Features :-
- 4MP Super-High Definition and 24h Full-Colour
- 4G Mobile Networking*1

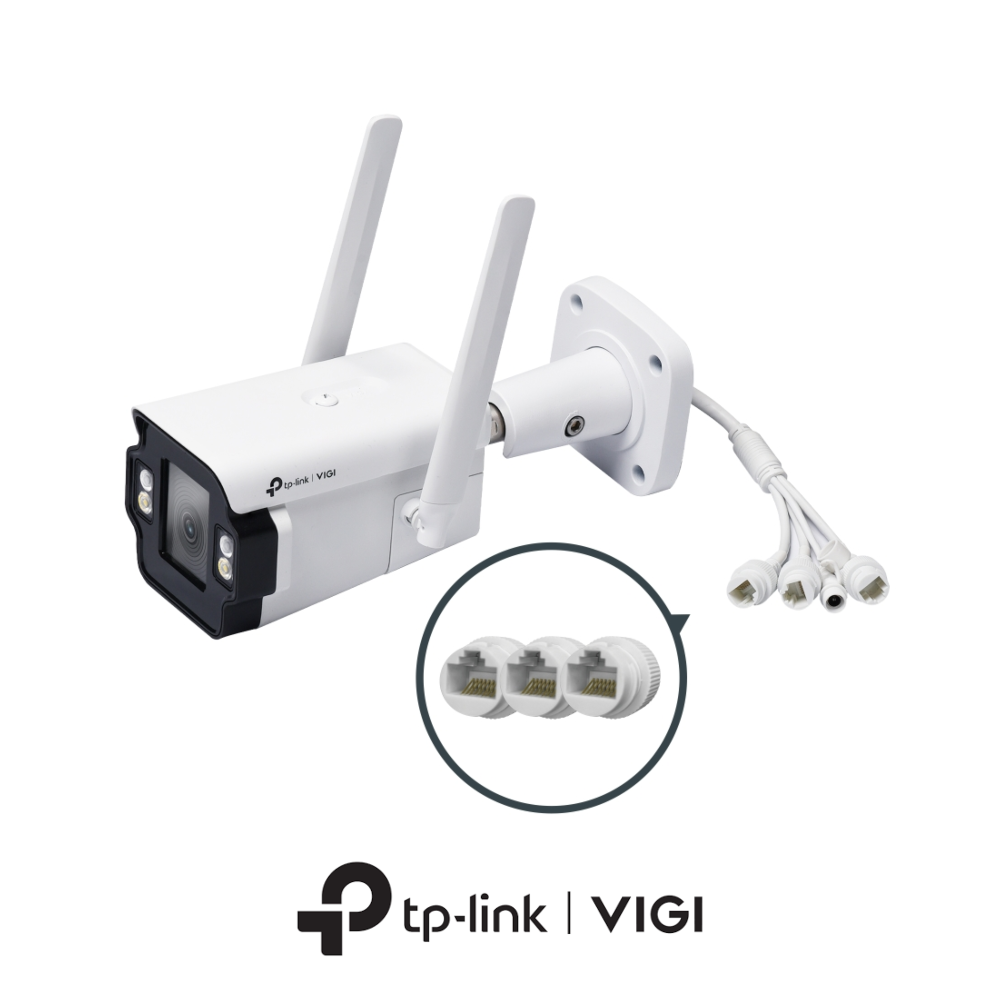

- 3 LAN Ports for Downstream Devices
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66 Weatherproof
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7“ Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | • Pan: 0° to 360° • Tilt: 0° to 90° • Rotate: 0° to 360° |
| ILLUMINATOR | |
|---|---|
| IR LED | • Quantity: 2 • Range: 50m • Wavelength: 850nm |
| White LED | • Quantity: 2 • Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2688 X 1520 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2688×1520,2560×1440,2304×1296,2048×1280,1920×1080,1280×720 |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 848×480,704×576, 640×480, 640×360,352×288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | Yes (Built-in Speaker) |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/G/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| 4G | |
|---|---|
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM*1 |
| Category | 4 |
| Frequency | • LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8 |
| Uplink and Download Data Rate | Uplink: 50 Mbps, Downlink: 150 Mbps |
| Antenna | • Quantity: 2
• Type: • Gain: |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload to FTP server • Send to Alarm Server • Email Alarm |
| INTERFACES | |
|---|---|
| Network Interface | 3 RJ45 10/100M LAN Ports |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1 |

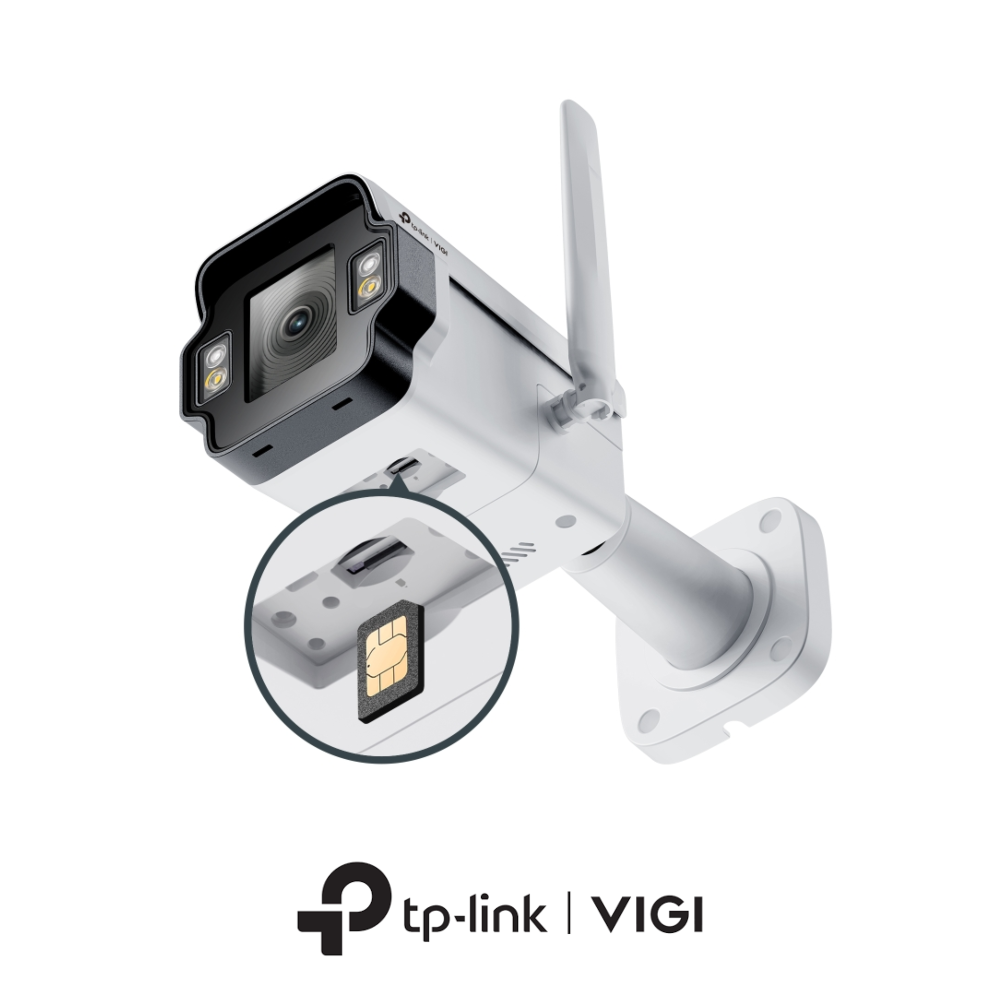

| Built-in Nano-SIM Card Slot | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
|---|---|
| Operating Temperature | -30℃ to 60°C |
| Storage Temperature | -40℃ to 60°C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter |
| Material | Metal |
| Net Weight | 1.09 Kg |
| Power Supply | • 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug |
| Antenna | • Quantity: 2
• Type: • Gain: |
| Protection | IP66 Weatherproof |
| Product Dimensions (L x W x H) | 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas) |
| Certifications | WPS, WHQL, Energy Star, RoHS, CE, NCC,NTRA,KC,RCM,ONVIF, IP66 |
*1MicroSD card and Nano-SIM card are not included in the package.
**Maximum power consumption test conditions are: IPC 4G streaming preview, supply network to three IPCs, turn on IR lights and the sound-light alarm.
**Typical power consumption test conditions are: IPC wired preview and 4G streaming preview without white light on (Day Mode), with IR light on (Night Mode with IR LED), with white light on (Night Mode with White LED). The results are for reference only and may vary due to changes in the test environment.
