This product is currently unavailable.

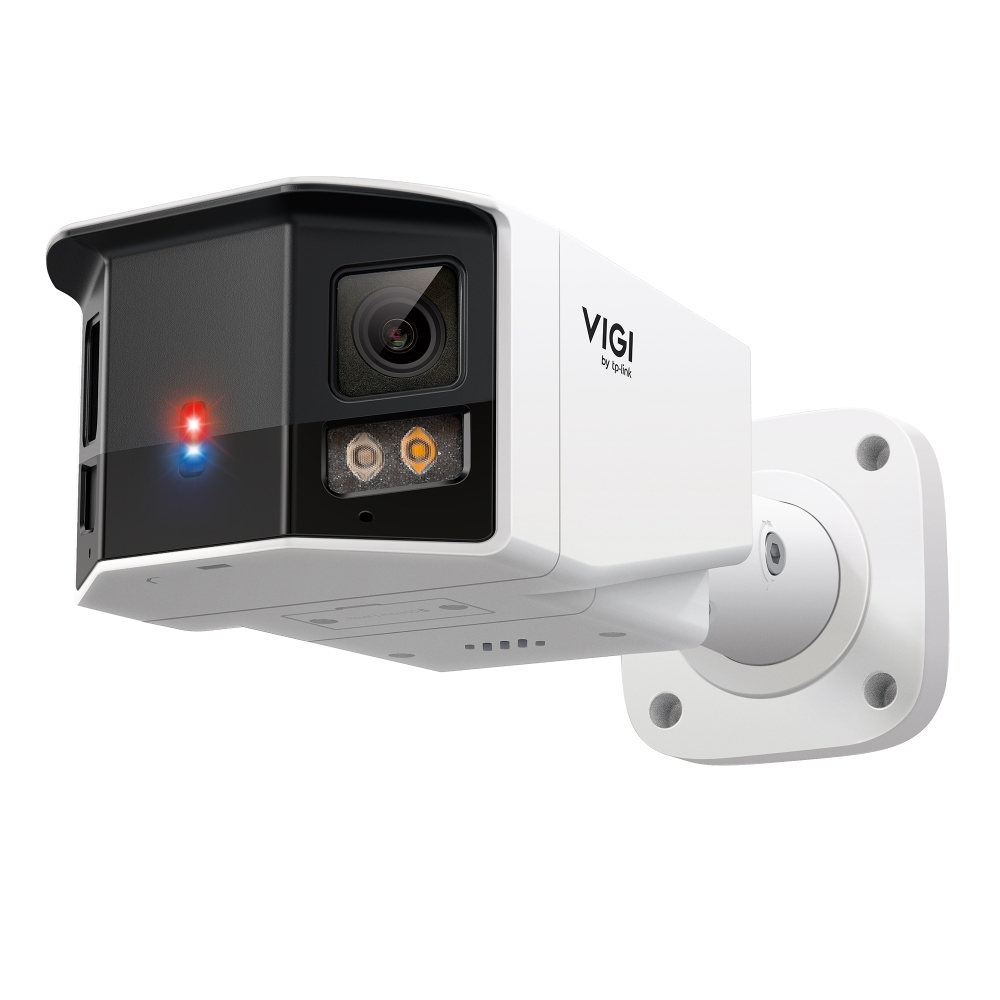

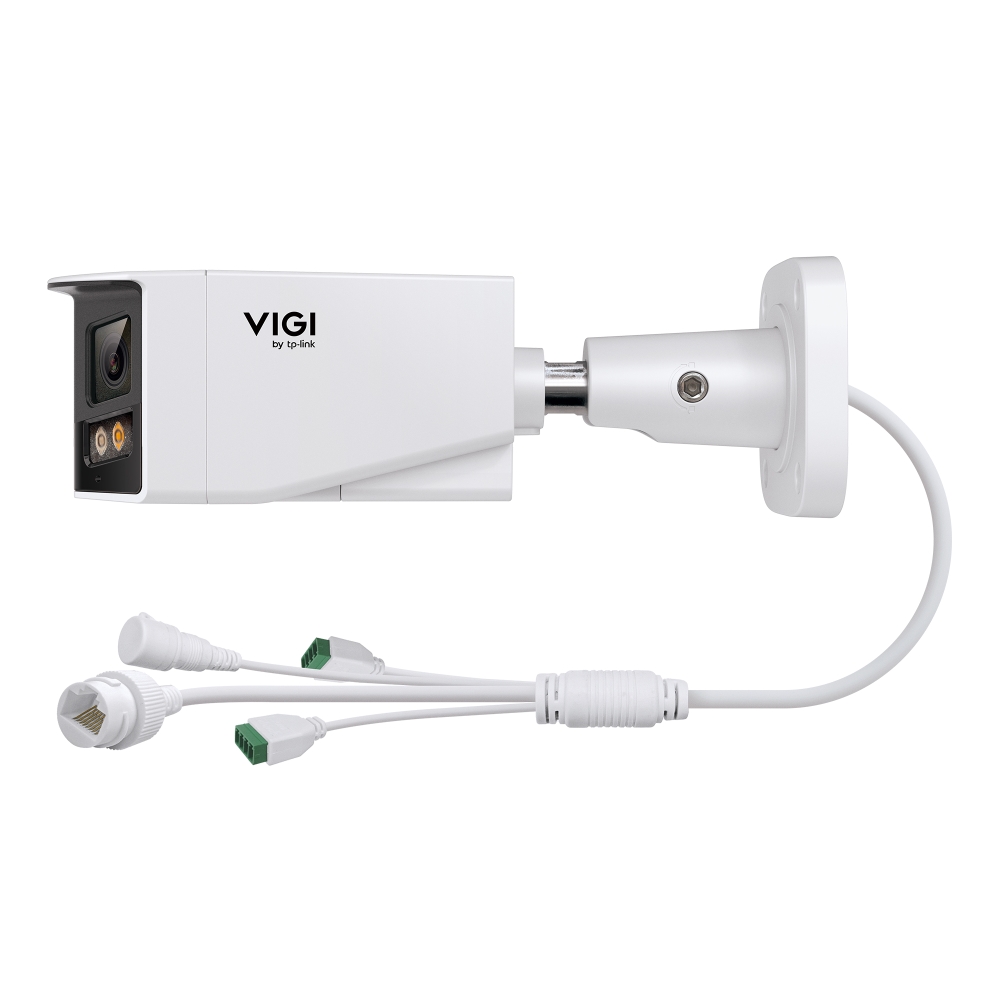

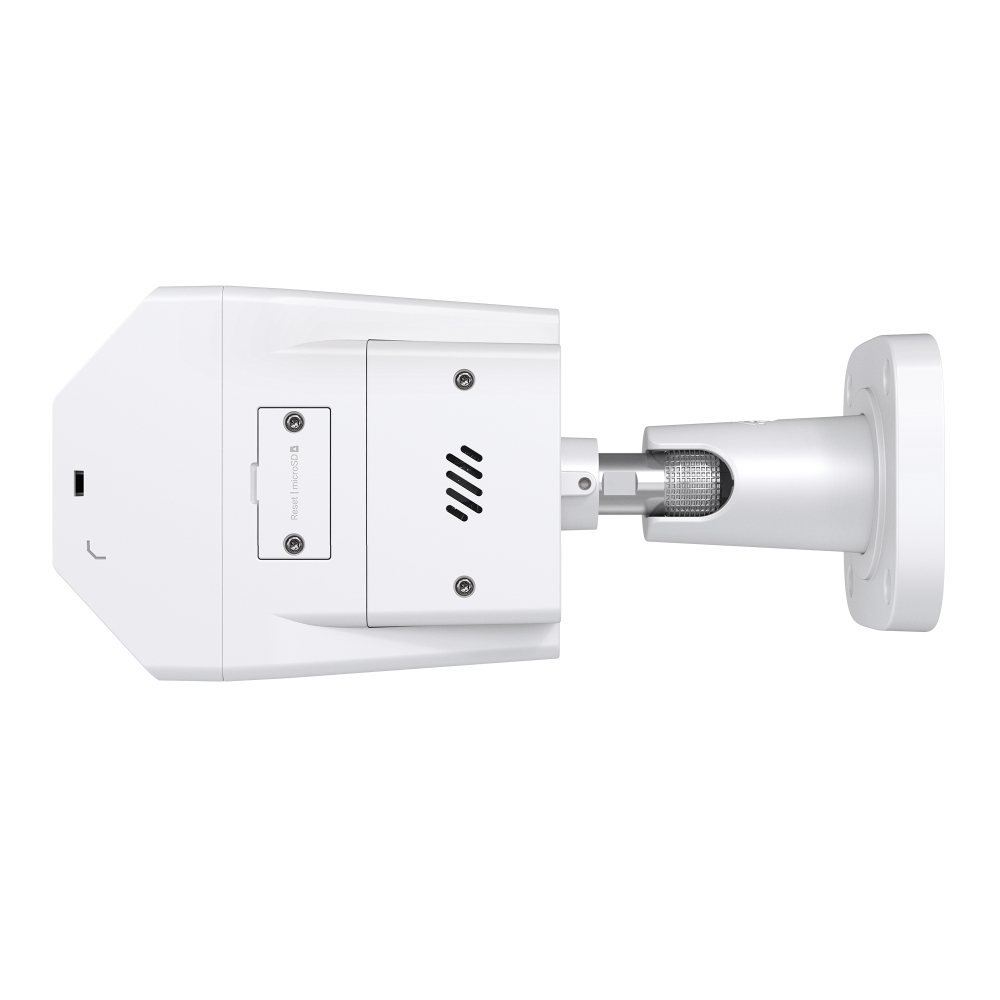

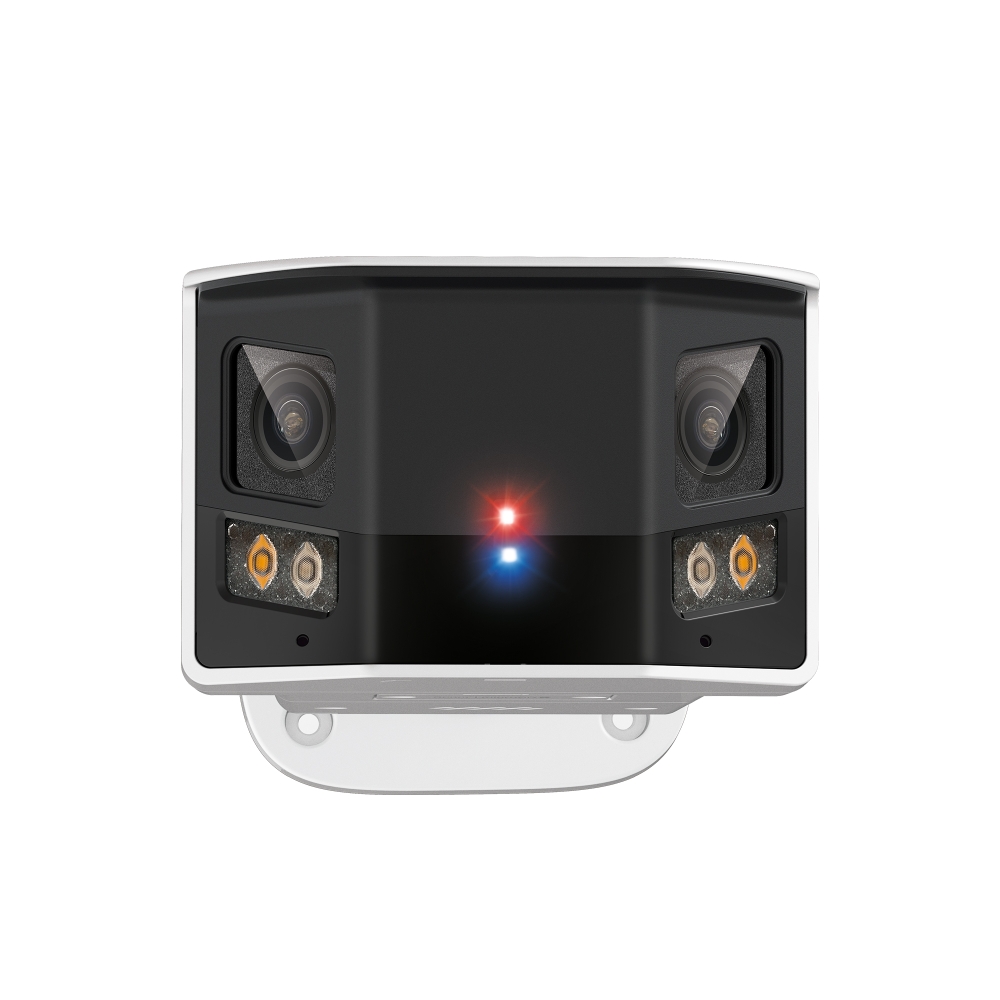

TP-Link VIGI InSight S385DPS H265 4K 8MP ColorPro Ultra-Low-Light Active-Deterrence AI PoE IP Smart-Dual-Light (IR & Warm White Light up to 50m) 120dB True-WDR Weatherproof Bullet Camera with 180° Panoramic View – Red & Blue Warning Lights – 2-Way Audio

Key Features :-

  • 4K (8MP) Ultra-High Definition
  • Dual-lens Stitched Panoramic Imaging
  • Ultra-Low Light ColorPro Night Vision
  • Red-Blue Warning Lights and Sound Alerts
  • People & Vehicle Analytics
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Audio and Alarm Interface Available
  • IP67 Weatherproof and IK10 Vandal-Proof
  • H.265+ Compression Technology

TP-Link Product-Link

TP-Link VIGI Brochure



CAMERA
Image Sensor Dual 1/1.79” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.0005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 5 mm
Aperture Dual F1.0
FOV • Horizontal FOV: 180°, Vertical FOV: 51°, Diagonal FOV: 180°
Lens Mount M16
DORI Distance 5mm:
• D: 249 ft (76 m)
• O: 95 ft (29 m)
• R: 46 ft (14 m)
• I: 23 ft (7 m)
Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 164 ft (50 m)
• Wavelength: 850 nm
White LED • Quantity: 2
• Range: 164 ft (50 m)
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 5456×1520
Main Stream • Frame Rate:
50Hz:1fps 5fps 10fps 15fps 20fps 25fps
60Hz:1fps 5fps 10fps 15fps 20fps 24fps

• Resolution:
5456×1520, 4096×1152, 2160×608

Note:
Enabling people counting or object attribute analysis limits the frame rate to 20fps.

Sub-Stream • Frame Rate:
50Hz:1fps 5fps 10fps 15fps 20fps 25fps
60Hz:1fps 5fps 10fps 15fps 20fps 24fps

• Resolution:
2160×608, 1280×360

Note:
Enabling people counting or object attribute analysis limits the frame rate to 20fps.

Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 8 Mbps
• Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 4 Regions
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Built-in Dual-Microphone
Audio In Interface
Audio Output Built-in Speaker
Audio Out Interface
Audio Compression Yes
Audio Sampling Rate 8 KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
ONVIF Yes
API Open Network Video Interface (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Input Device
Alarm Linkage • Memory Card Video Recording
• Upload to FTP Server
• Alarm Output Device
• Push Notifications
• Send to Alarm Server
• Active Defence-Sound Alarm
• Active Defence-Light Alarm
• Email Alarm
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm 1 Alarm In, 1 Alarm Out
Red-Blue Warning Lights
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio 1 Audio In, 1 Audio Out
GENERAL
Operating Temperature -30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Content • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Metal
Net Weight 1.12 kg
Power Supply • 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug
• PoE: 802.3at, Class 4, Max. 21W
Protection IP67 Weatherproof, IK10 Vandal-Proof
Product Dimensions (L x W x H) 10.5 × 4.6 × 3.5 in (266 × 116 × 90 mm)
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
