CCTV / Surveillance, IP CCTV Kits, IP Surveillance, TP-Link VIGI CCTV Kits
TP-Link VIGI NK8MP-T6425-2T

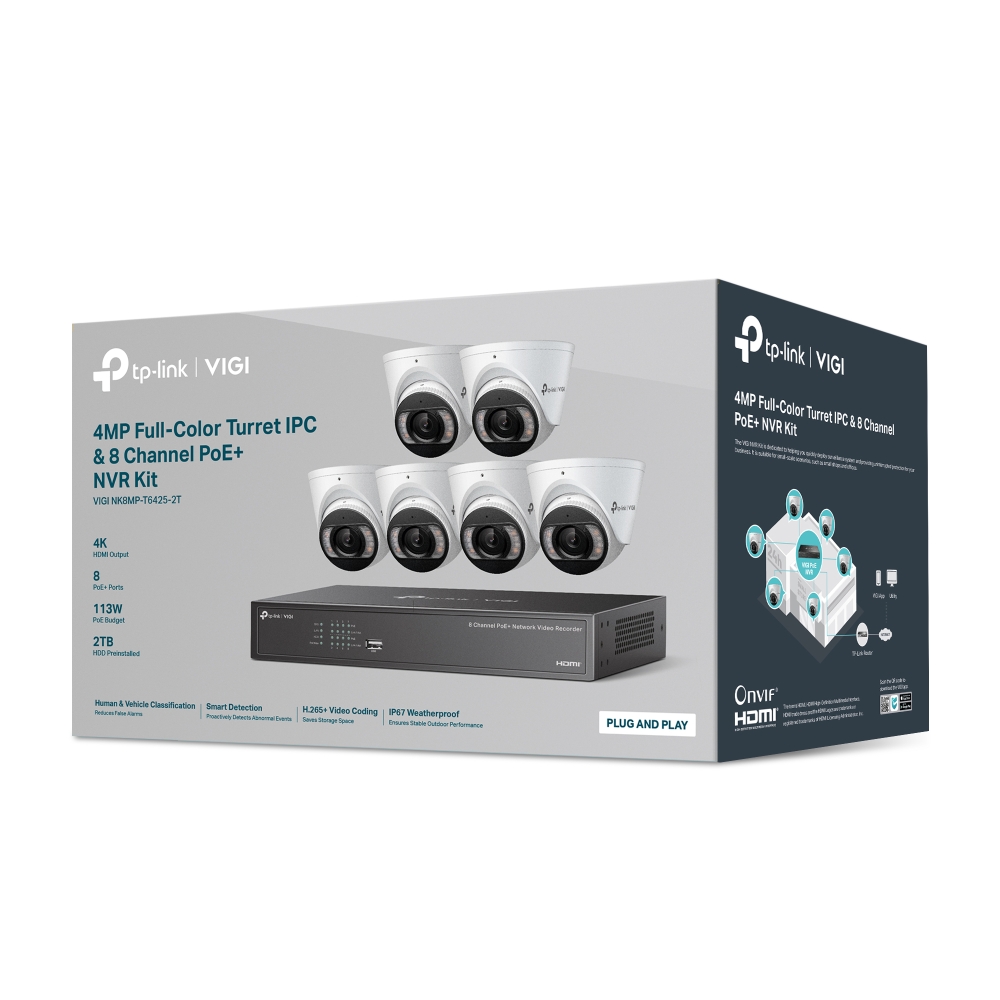

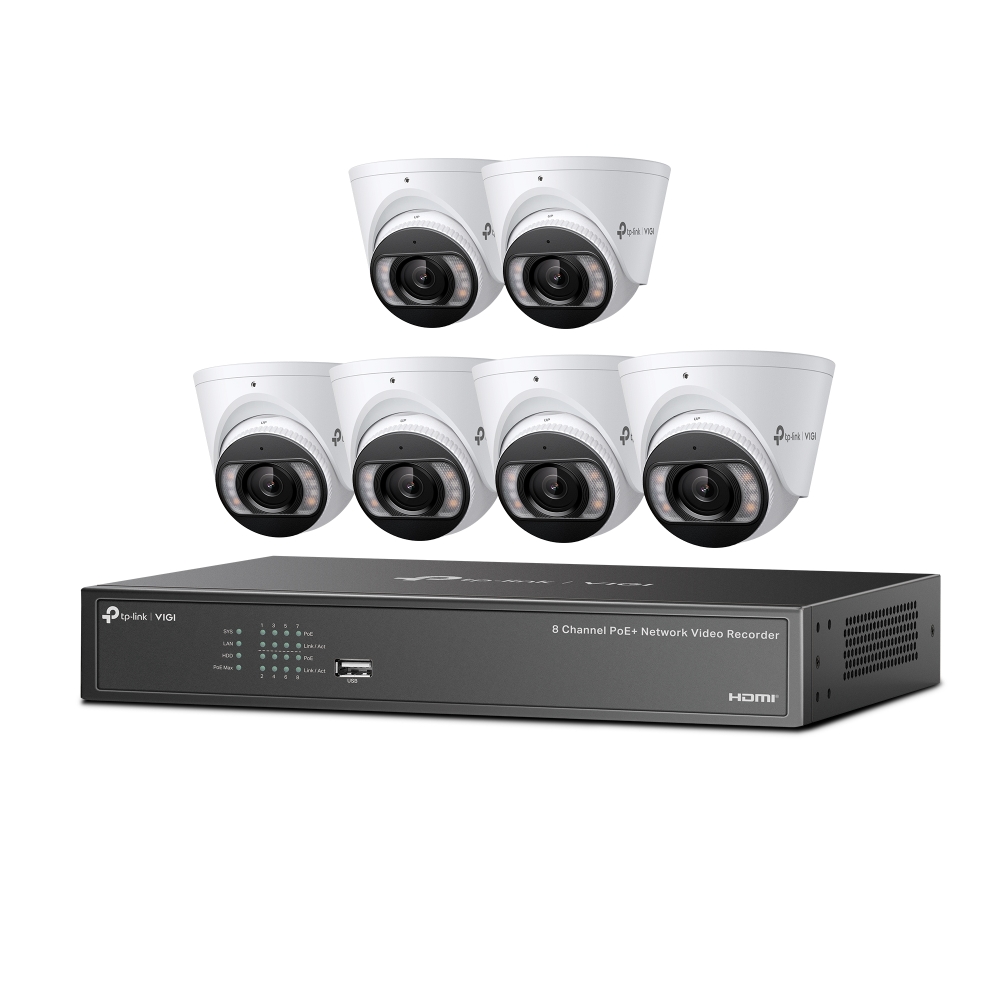

TP-Link VIGI NK8MP-T6425-2T CCTV Kit – Includes 1 * 8CH 8x PoE NVR with 2TB HDD + 6 * 4MP Smart-Dual-Light Full-Colour Active-Deterrence 2-Way Audio Weatherproof Eyeball Turret Cameras
SKU: NK8MP-T6425-2T
Categories: CCTV / Surveillance, IP CCTV Kits, IP Surveillance, TP-Link VIGI CCTV Kits
Tags: 4K, 4MP, 6 Camera Kit, 8-Channel, Active Deterrence, CCTV Kit, CCTV Package, Full Colour, NDAA, NVR, Surveillance Kit, TP-Link, Vigi
TP-Link VIGI NK8MP-T6425-2T CCTV Kit – Includes 1 * 8CH 8x PoE NVR with 2TB HDD + 6 * 4MP Smart-Dual-Light Full-Colour Active-Deterrence 2-Way Audio Weatherproof Eyeball Turret Cameras
Key Features :-
- Plug and Play
- Simpler Installation with PoE Technology
- Non-Stop Protection
- Ideal for Small-scale Scenarios
- 2TB HDD Preinstalled
- 24/7 Color camera
- AI Smart Kit
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring by Vigi App and (Omada) Guard App
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | F1.6 |
| Lens | 2.8 mm, Fixed Focal Lens |
| Lens Mount | M12*P 0.5 |
| FOV | Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| White LED | • Quantity: 4 • Range: 98 ft (30m) |
| IR LED | • Quantity: 4 • Range: 98 ft (30 m) • Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 • Note: |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 704×576,640×480, 352×288, 320×240 • Note: |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| Operating Temperature | -30 ℃ to 60 °C (-22 ℉ to 140 ℉) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Power Supply | • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12 W |
| Weatherproof Rating | IP67 Learn more about VIGI C445 (2.8mm)> |
| NVR | |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/ QCIF |
| Synchronous Playback | 8-Channel* |
| Decoding Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP• 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
| Hard Disk | • 1 SATA Interface • Up to 16 TB Capacity for Each HDD • 1 × 2TB HDD Preinstalled |
| PoE Budget | 113 W Available for All PoE+ Ports†, 30 W Max per Port |
| Power Supply | 53.5V DC/2.43 A |
| Working Temperature | • NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉） • Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉) |
| Working Humidity | 10%~90% RH Non-Condensing Learn more about VIGI NVR1008H-8MP> |
