TP-Link VIGI NVR1004H-4P
TP-Link VIGI NVR1004H-4P 4K Mini 1U 4-Channel 4* PoE NVR – Without HDD
SKU: NVR1004H-4P
Categories: CCTV / Surveillance, IP Surveillance, NVRs, VIGI NVRs
Tags: 4-Channel, 4K, 4x PoE, Network Video Recorder, NVR, TP-Link, Vigi
TP-Link VIGI NVR1004H-4P 4K Mini 1U 4-Channel 4* PoE NVR – Without HDD
Key Features :-
- 4-Channel Live View and 4K HDMI Video Output
- 4× 10/100 Mbps PoE+ Ports with 53W PoE Budget
- Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
- 4-Channel Synchronous Playback
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1× SATA Interface and HDD supported up to 10TB
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring by Vigi App and (Omada) Guard App
| Video and Audio | |
|---|---|
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel |
| Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP• 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Record Management | |
|---|---|
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

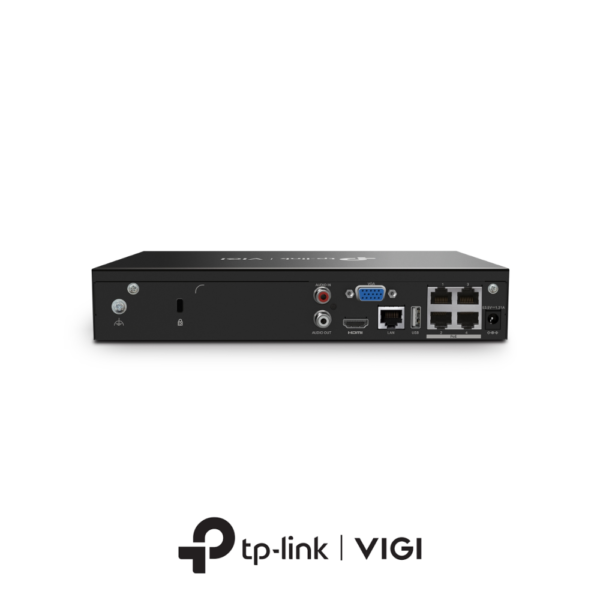

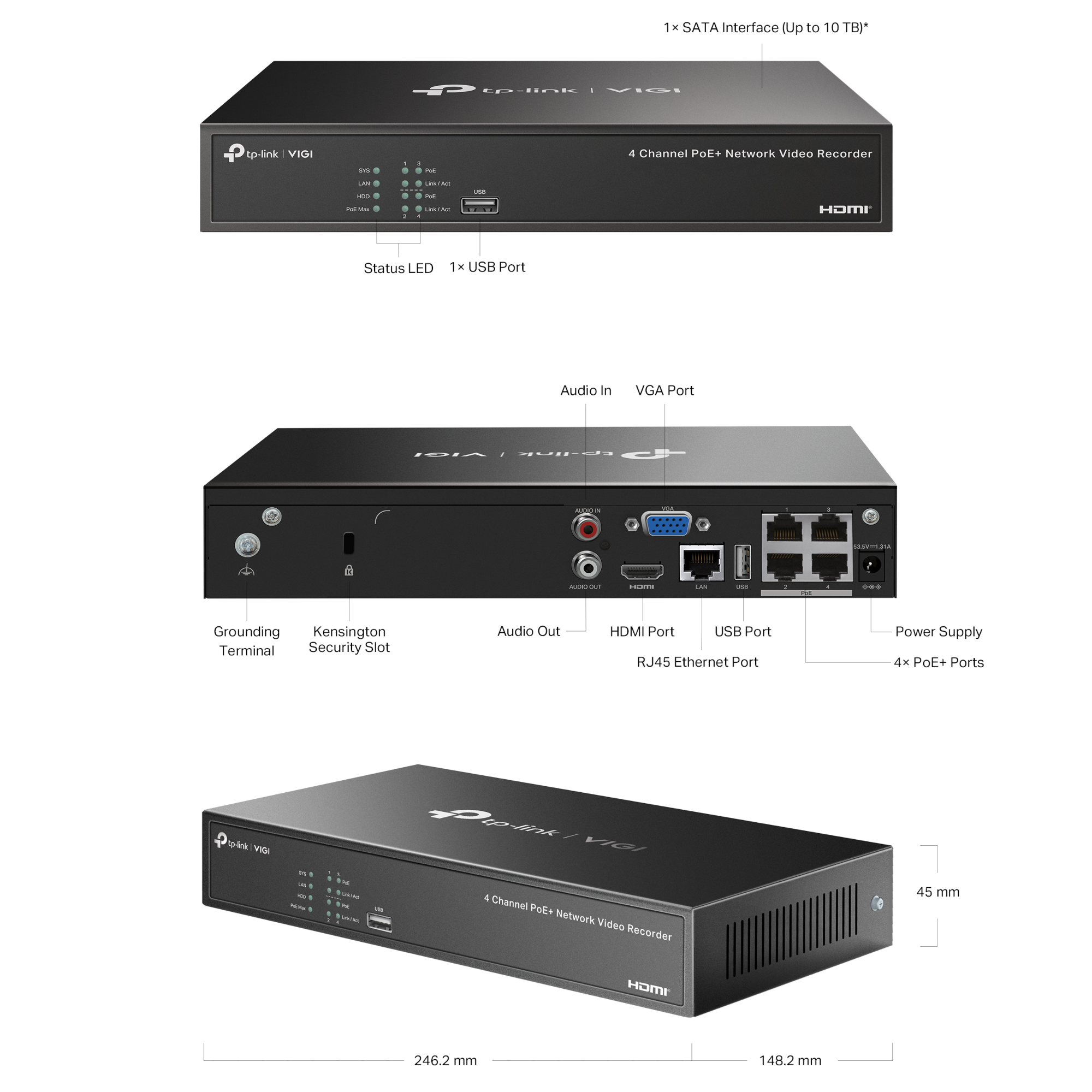

| External Interface | |
|---|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | • Up to 10 TB Capacity for Each HDD • 1 × 2TB HDD Preinstalled |
| PoE | |
|---|---|
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception Note: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera. |
| GENERAL | |
|---|---|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Content | • VIGI Network Video Recorder • Power Adapter • Power Cables • Rubber Feet • Mouse • Quick Installation Guide |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
| Power Supply | 53.5V DC/1.31A |
| Max. Power Consumption | • 4.25 W (Without Disk) • 13.10 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
△PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
†The number of simultaneously playable channels may be fewer than 4, or none, if the total resolution exceeds 16MP.
‡This model currently supports ONVIF Profile S/T/G.
