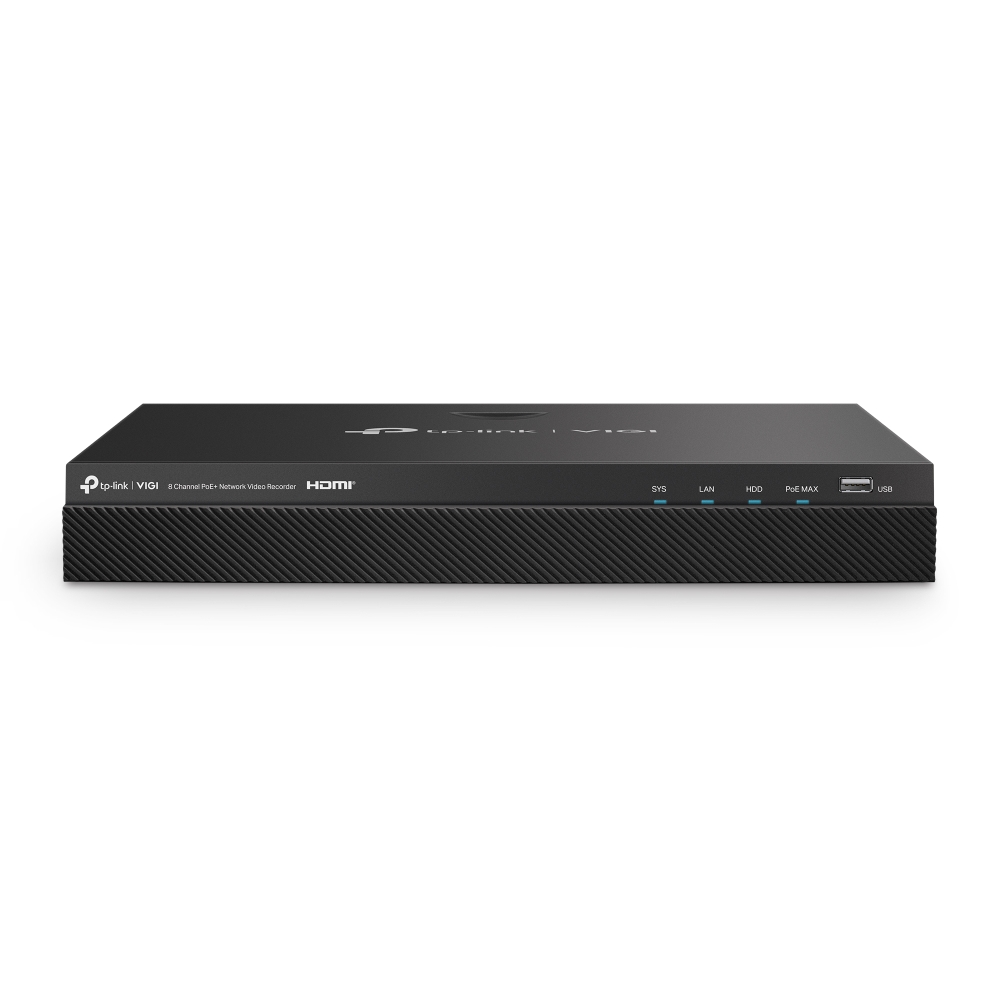

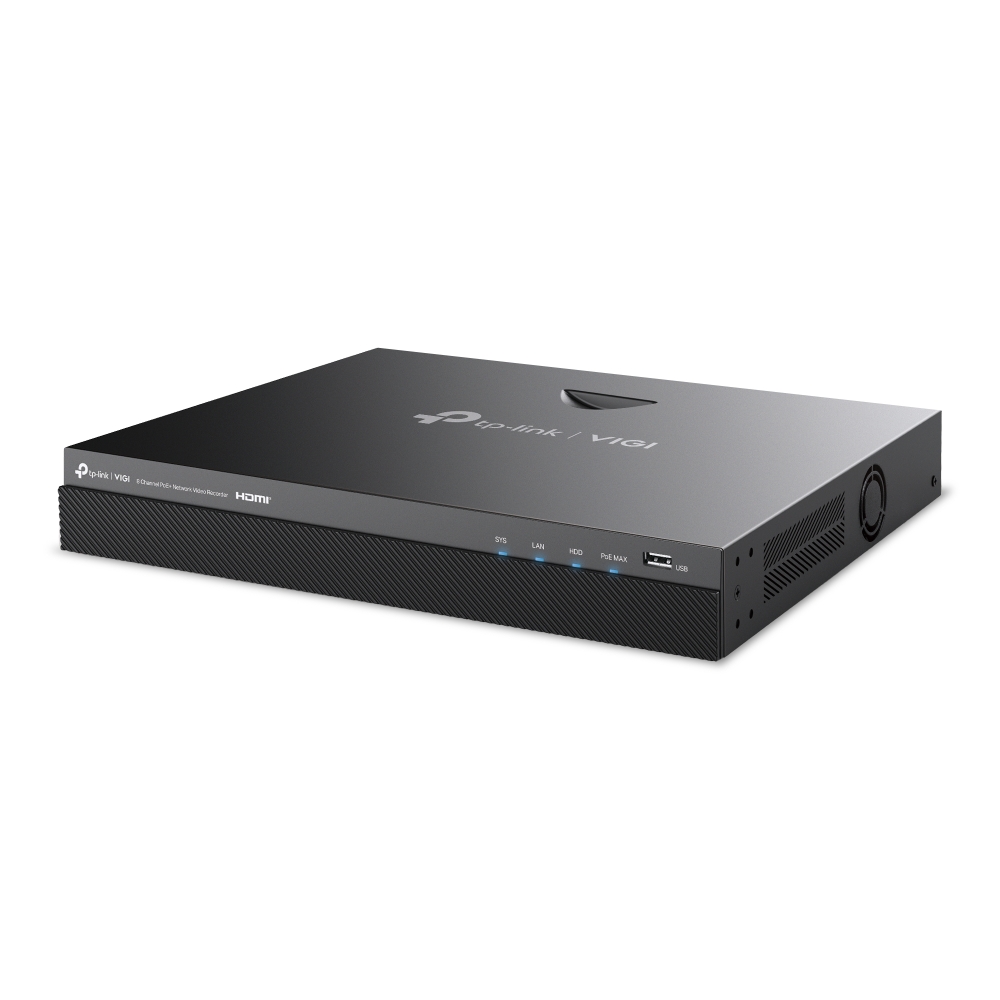

TP-Link VIGI NVR2008H-8MP

Name: TP-Link VIGI NVR2008H-8MP
SKU: NVR2008H-8MP

TP-Link VIGI NVR2008H-8MP 4K 1U 8-Channel 8* PoE NVR – Without HDD – With 2x HDD Slots

This product is currently unavailable.

TP-Link VIGI NVR2008H-8MP 4K 1U 8-Channel 8* PoE NVR – Without HDD – With 2x HDD Slots

Video and Audio
IP Video Input	8-Channel
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8/9

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	8-Channel*²
Capability	• 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+), Safari (11+)
Interoperability	ONVIF Profile S, CGI

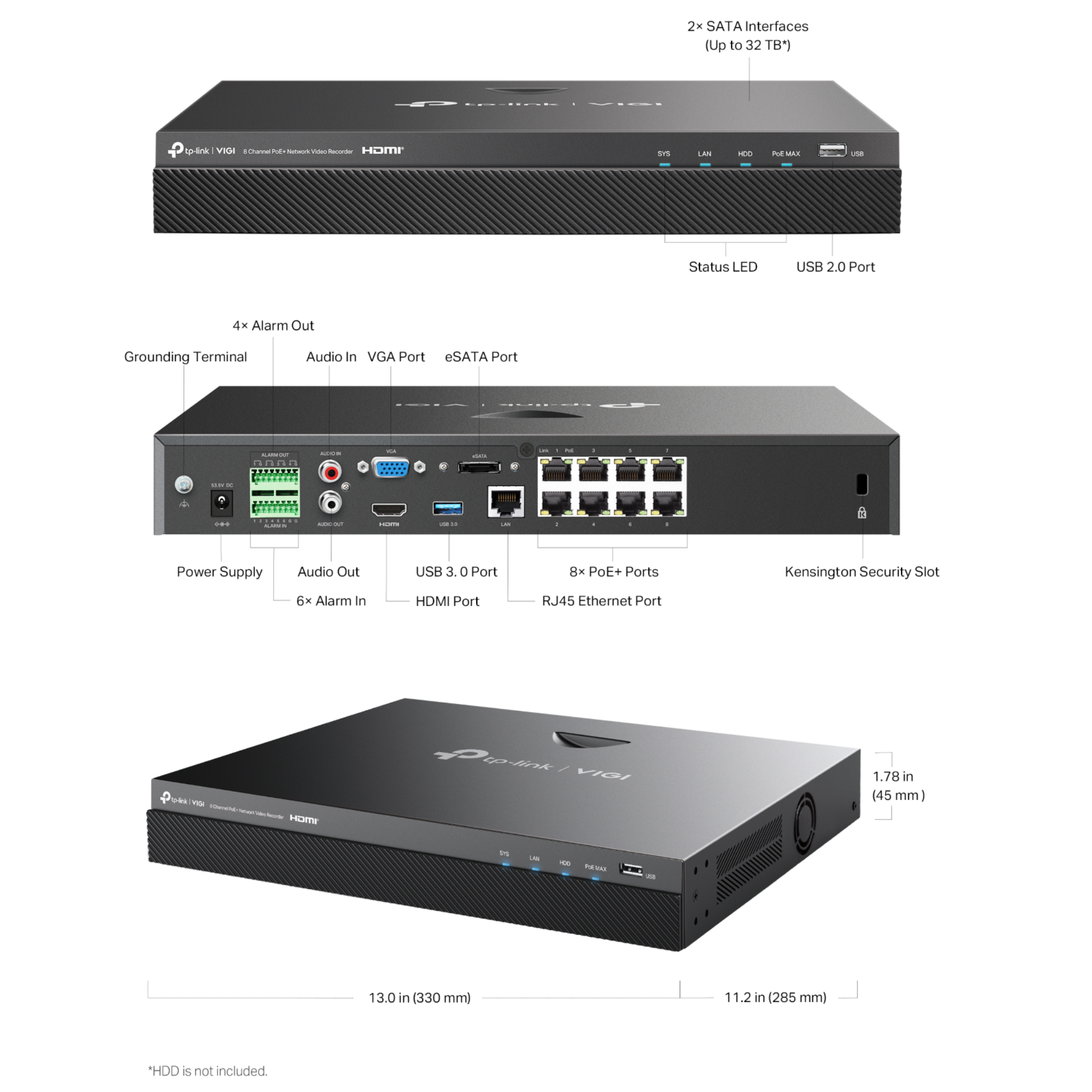

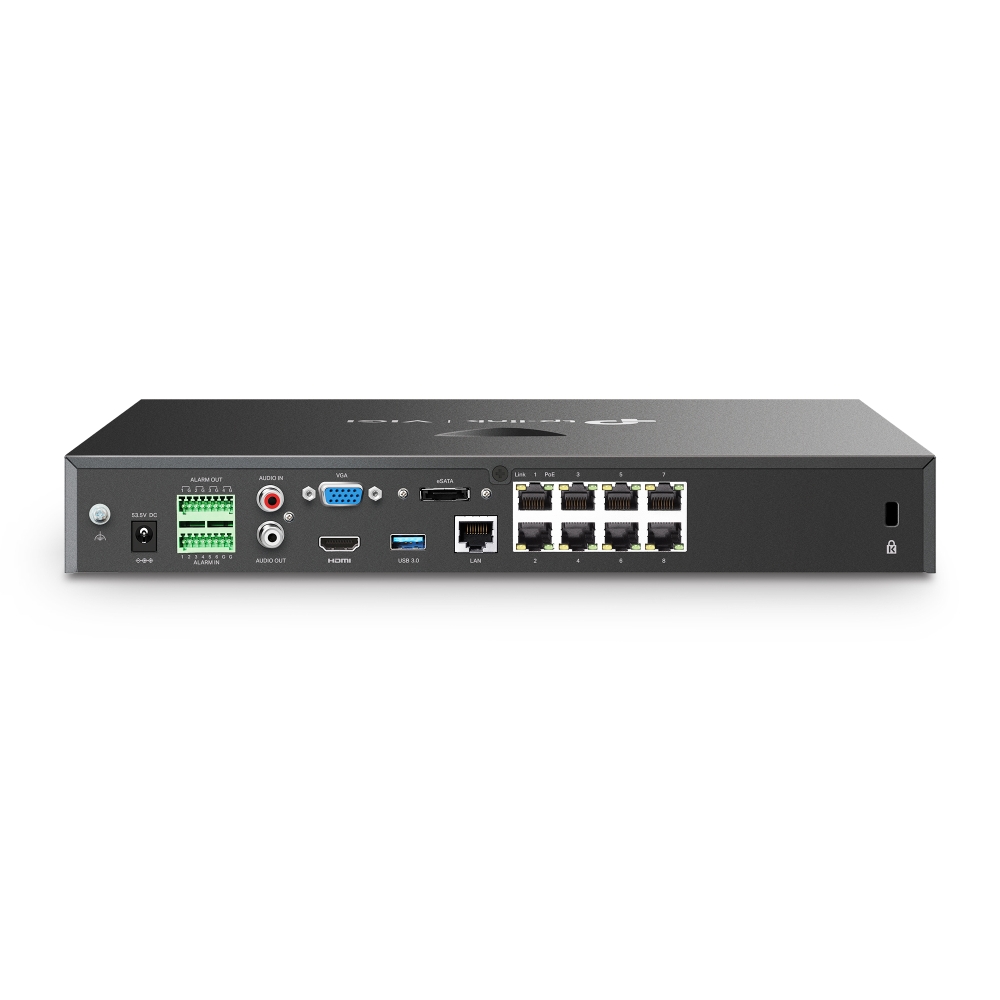

External Interface
Network Interface	1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	6/4
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	1
VGA	1

HARD DISK
SATA	2 SATA Interfaces
Capacity	Up to 16 TB Capacity for Each HDD*³

PoE
Standard	802.3at/af Compliant
Interface	8, RJ-45 10/100 Mbps PoE+ Ports
PoE Budget	90 W*¹ Available for All PoE+ Ports, 30 W Max per Port

Alarm
General Alarm	• Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera.
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera.
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera.

GENERAL
Storage Temperature	-40℃ to 70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Content	• VIGI Network Video Recorder • Power Adapter • Power Cable • HDD Power Cables • HDD Data Cables • Mounting Accessories • Mouse • Quick Installation Guide
Working Temperature	• NVR: -10℃ to 55 °C • Power Adapter: 0℃ to 40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	13 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight	2.1 Kg*⁴
Gross Weight	3.9 Kg*⁴
Power Supply	53.5V DC/2.43A
Max. Power Consumption	• 8.5 W (Without Disk) • 40 W (With Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
