Trojan TDL-2RB

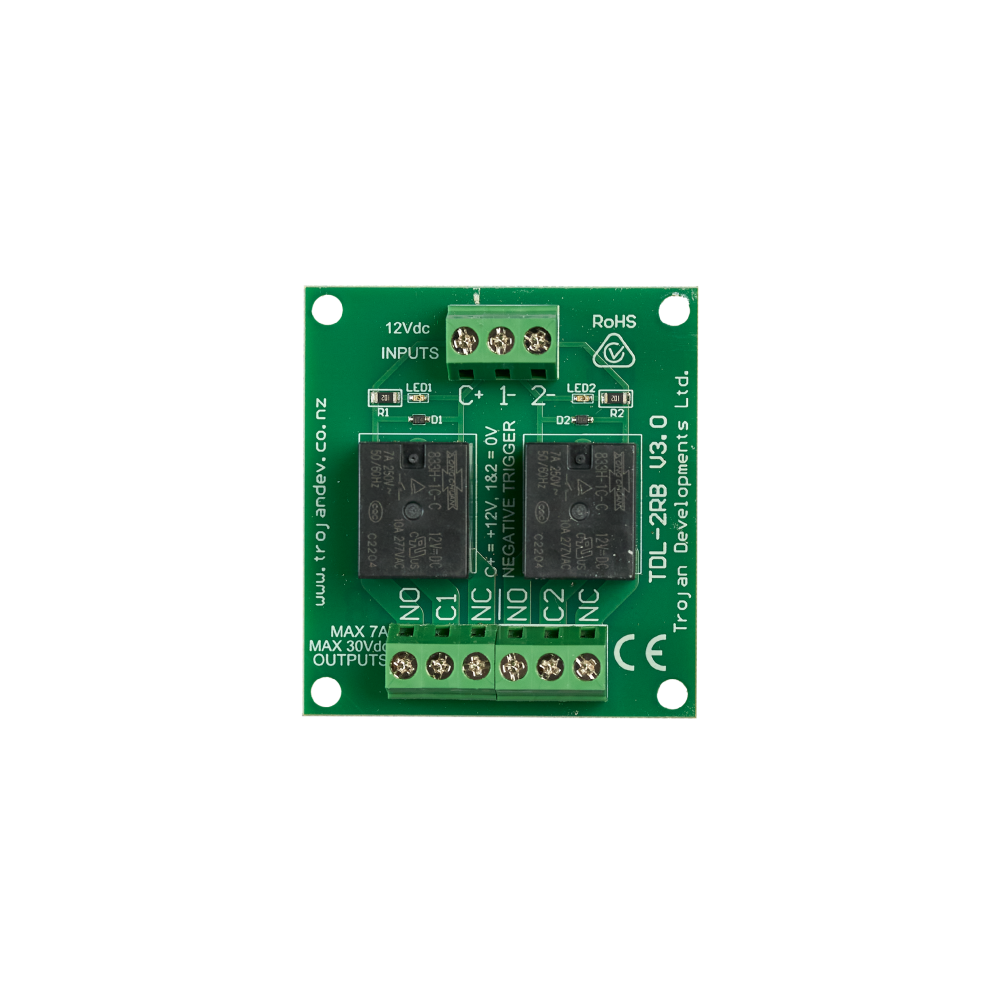

Trojan TDL-2RB 2-Way Single Pole Relay Board – 12VDC 8Amp Rating Per Relay
SKU: TDL-2RB
Categories: Access Control, Access Control Accessories
Tags: 2-channel, Access Control, Relay, Trojan
Trojan TDL-2RB 2-Way Single Pole Relay Board – 12VDC 8Amp Rating Per Relay
The 2 Way 8 Amp Relay Board has 2 x 12Vdc inputs that can switch 2 x 8 amp single pole double throw relays.
This unit also fits on the TDL Mounting Base system to ensure a neat and tidy installation (pictured for reference, not included).
Key Features :-
- Contact rated at 8 Amps AC/DC
- Designed to be used as an interface between a low current switching control board and a high powered lock
- LED to indicate relay status
- Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm2 cable
- Fits TDL-MB mounting system (not included)
- Modular unit that can be used to switch a number of devices
- Two way Relay Board
- Operating Voltage 9 to 16Vdc – 38mA at 13.6 Vdc per relay
- 12Vdc negative trigger inputs
- Two Single Pole Double Throw relays
- Contacts rated at 8 Amps AC/DC
- Dimensions: 55mm (w) x 60mm (h) x 23mm (d)
