Uniview IPC2K28SE-ADF40KMC-WL-I0

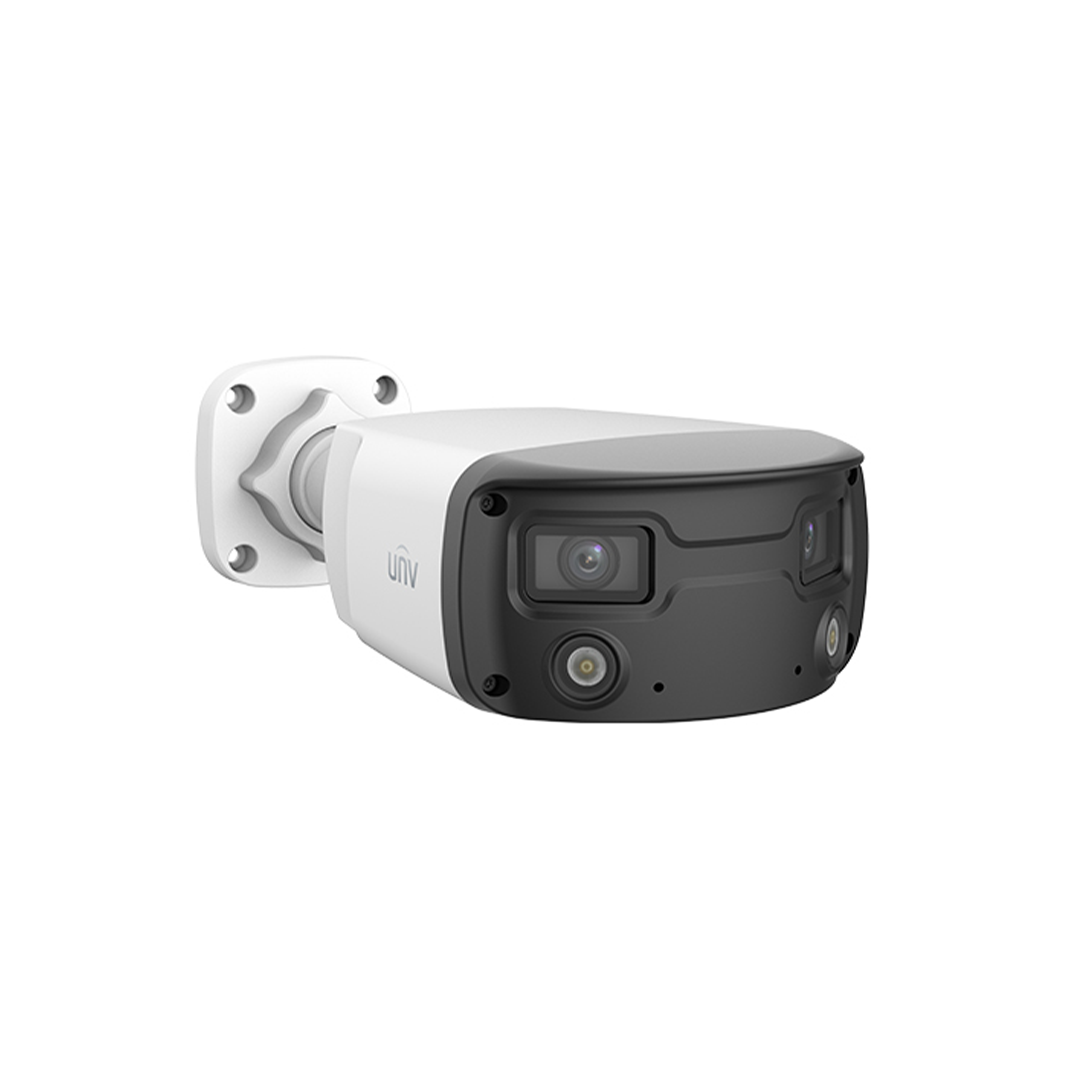

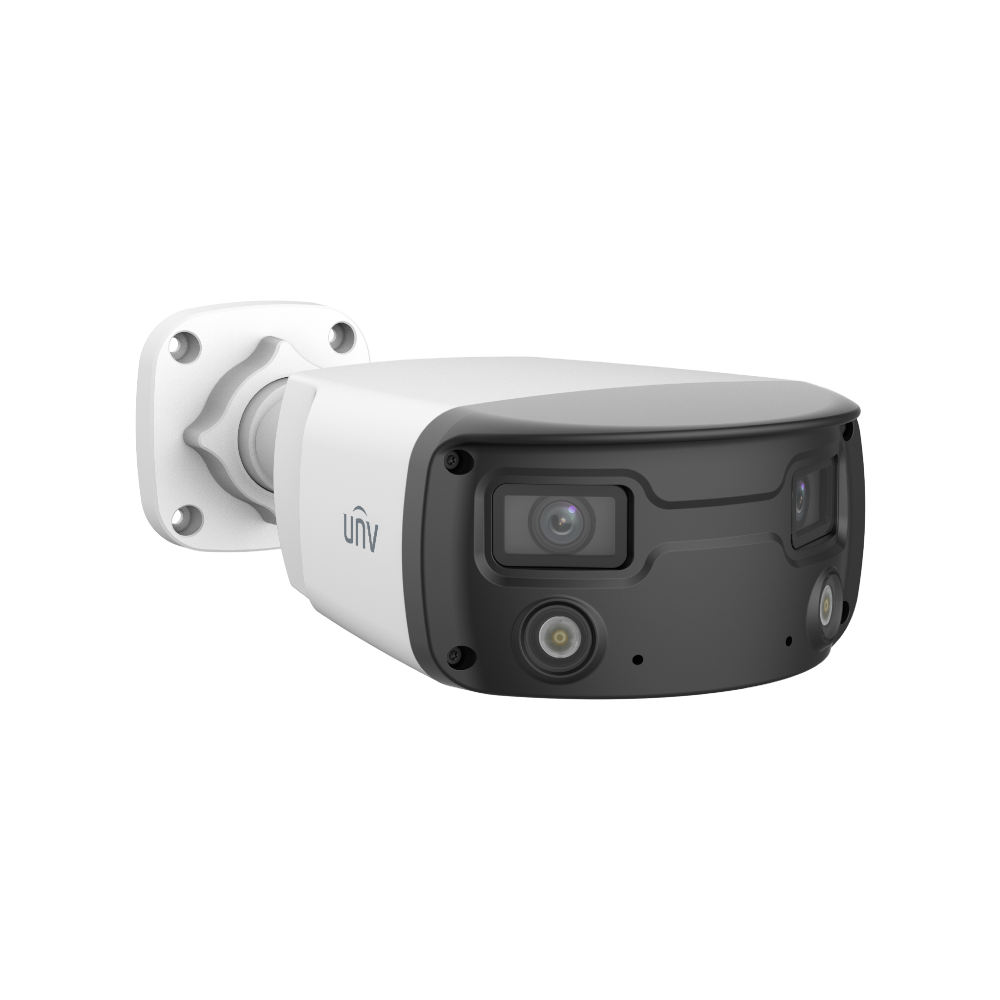

Uniview IPC2K28SE-ADF40KMC-WL-I0 ColorHunter AI (Artificial Intelligence – Human / Vehicle based Alerts) H265 4K 8MP PoE IP Warm-White-Light (30m) 120dB True-WDR Ultra-Low-Light (0.0005 Lux Colour) Full Colour Weatherproof Bullet Camera with 180° Ultra Wide Angle – with Built-in Audio Mic + Speaker
Uniview IPC2K28SE-ADF40KMC-WL-I0 ColorHunter AI (Artificial Intelligence – Human / Vehicle based Alerts) H265 4K 8MP PoE IP Warm-White-Light (30m) 120dB True-WDR Ultra-Low-Light (0.0005 Lux Colour) Full Colour Weatherproof Bullet Camera with 180° Ultra Wide Angle – with Built-in Audio Mic + Speaker
Key Features :-
- High quality image with 8MP, 1/2.7″CMOS sensor
- 8MP (5120*1440) @ 20fps
- The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°±10°
- ColorHunter technology ensures 24-hour full-color images
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)（Only WDR）
- Alarm: 1 in/1 out
- Audio: 1 in/1 out
- Built-in speaker and dual mics
- Support 256 GB micro SD card
- 12VDC / PoE power supply
| IPC2K28SE-ADF40KMC-WL-I0 | ||||||||
| Camera | ||||||||
| Sensor | 1/2.7″ CMOS | |||||||
| Min. Illumination | Colour: 0.0005 lux (F1.0, AGC ON) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |||||||
| S/N | >52dB | |||||||
| WDR | 130dB | |||||||
| Lens | ||||||||
| Focal Length | 2 x 4.0 mm | |||||||
| Iris | F1.0 | |||||||
| Field of View (H) | 180°±10° | |||||||
| Field of View (V) | 47.41° | |||||||
| Field of View (D) | 180.13°±10° | |||||||
| Lens Type | Fixed | |||||||
| DORI | ||||||||
| DORI Distance(Lens) | 4.0mm | |||||||
| DORI Distance(Detect) | 90m(259.3ft） | |||||||
| DORI Distance(Observe) | 36m(118.1ft) | |||||||
| DORI Distance(Recognize) | 18m(59.1ft) | |||||||
| DORI Distance(Identify) | 9m(29.5fft) | |||||||
| Illuminator | ||||||||
| Supplemental Light | Warm Light | |||||||
| Illumination Distance(Warm Light) | 30 m (98.4 ft) | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 8MP (5120*1440), Max 20fps Sub Stream: 2560*720, Max 20fps |
|||||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Double streams | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Smart Illumination | Support | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | N/A | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Auto Scene Match (ASM) | Support (Only WDR) | |||||||
| Defog | Digital Defog | |||||||
| Image Stabilization | N/A | |||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||||||
| Statistical Analysis | Support People Flow Counting and Crowd Density Monitoring | |||||||
| Attribute Collection | SIP with color retrieval | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 KHz | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
|||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Built-in two mics | |||||||
| Built-in Speaker | Support | |||||||
| WIFI | N/A | |||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 13W |
|||||||
| Power Interface | Ø 5.5 mm coaxial power plug | |||||||
| Dimensions | 273 × 130 × 76mm (10.7” × 5.1” × 3.0”) | |||||||
| Weight | 0.96kg (2.12lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 4KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
|||||||
