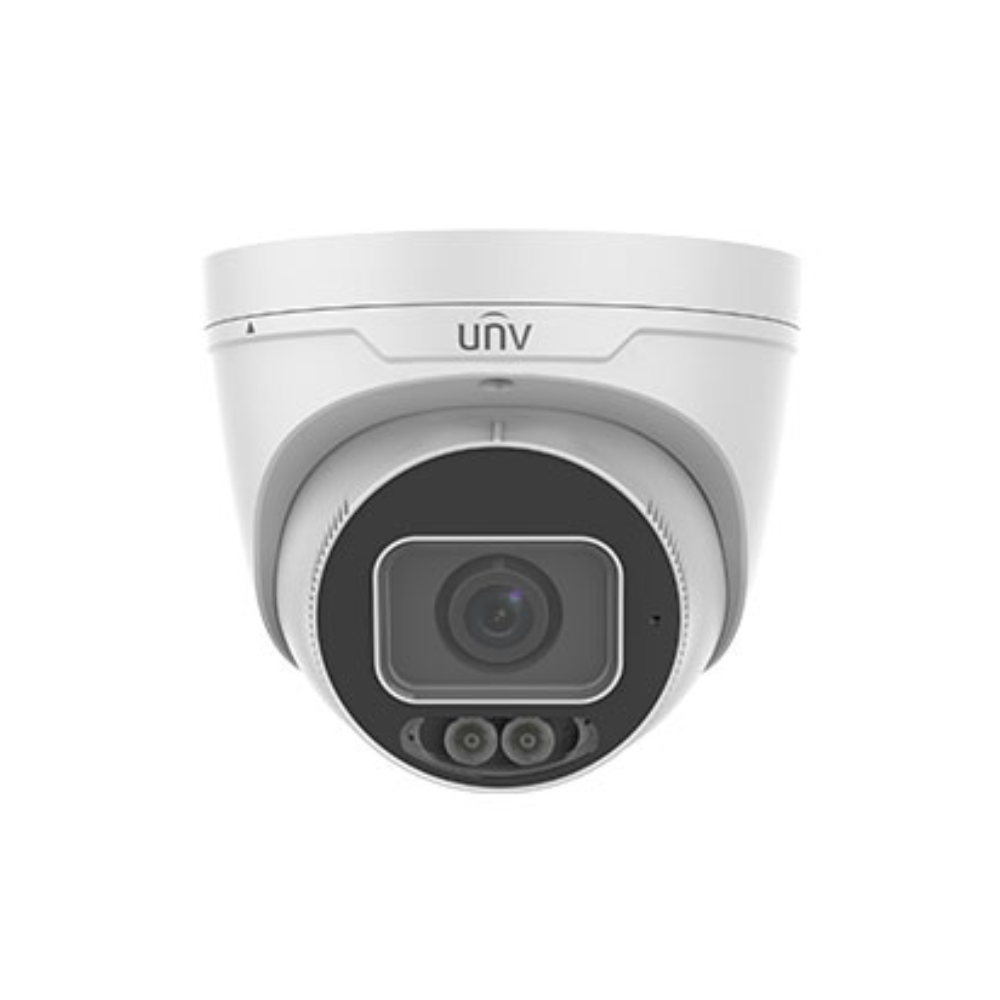

Uniview IPC3634SE-ADF40K-WL-I0
Uniview IPC3634SE-ADF40K-WL-I0 Prime-series ColorHunter AI (Artificial Intelligence – Human / Vehicle based Alerts) H265 4MP PoE IP Warm-White-Light (30m) 120dB True-WDR Ultra-Low-Light (0.0005 Lux Colour) Full Colour Weatherproof Eyeball Turret Camera with 4mm Fixed Lens – with Built-in Audio Mic + Audio & Alarm In/Out – 103° Horizontal Wide Angle FoV
Limited stock on hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only
Uniview IPC3634SE-ADF40K-WL-I0 Prime-series ColorHunter AI (Artificial Intelligence – Human / Vehicle based Alerts) H265 4MP PoE IP Warm-White-Light (30m) 120dB True-WDR Ultra-Low-Light (0.0005 Lux Colour) Full Colour Weatherproof Eyeball Turret Camera with 4mm Fixed Lens – with Built-in Audio Mic + Audio & Alarm In/Out – 103° Horizontal Wide Angle FoV
Key Features :-
- High quality image with 4MP, 1/1.8″ CMOS sensor
- 4MP (2688*1520) @ 30/25fps; 4MP (2560*1440) @ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @ 30/25fps; 720P (1280*720), Max 30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.,
- Accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent face capture
- Intelligent People Flow Counting and Crowd Density Monitoring
- ColorHunter technology ensures 24-hour full-color images
- F1.0 Super aperture
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Supports 256 G micro SD card
- IK10 vandal resistant and IP67 protection
Camera
- Sensor: 1/1.8″, 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination: Colour: 0.0005Lux (F1.0, AGC ON)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment angle: Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360°
- WDR: 120dB
- S/N: >56dB
Lens
- Lens: 4mm @ F1.0
- Angle of view (H): 103°
- Angle of View (V): 69.2°
- Angle of View (O): 134.6°
DORI
- DORI Distance: Detect: 62.1m; Observe:24.8m; Recognize: 12.4m; Identify: 6.2m
Illuminator
- LED Distance: Up to 30m (98ft)
- LEDs Number: 2
- LED On/Off Control: Auto/Manual
Video
- Video Compression: Ultra265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main profile, High profile
- Frame Rate: Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate:128 Kbps~16 Mbps
- U-code: Support
- ROI: Up to 8 areas
- Video Stream: Triple streams
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
- Digital Noise Reduction: 2D/3D DNR
- Smart Illumination: Support
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
Audio
- Audio Compression: G.711
- Audio Bitrate: 64 Kbps
- Two-way audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256 GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
- User/Host: Up to 32 users. 2 user levels: administrator and common user
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client: EZStation; EZView; EZLive
- Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
- Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
- Output: impedance 600Ω; amplitude 2V [p-p]
- Alarm I/O: 1/1
- RS485: N/A
- Built-in Mic: Support
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
- Certifications
- EMC: FCC CFR 47 Part 15; EN 55032:2015; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3-2013
- Safety: IEC 62368-1; EN 62368-1; UL 62368-1
- Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max9.0W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (Ø x H): Φ129 x 110mm (Φ5.1” x 4.3”)
- Weight: 0.69kg (1.52lb)
- Material: Metal
- Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Supported
- Protection Ingression protection: IP67
- Vandal resistant: IK10
