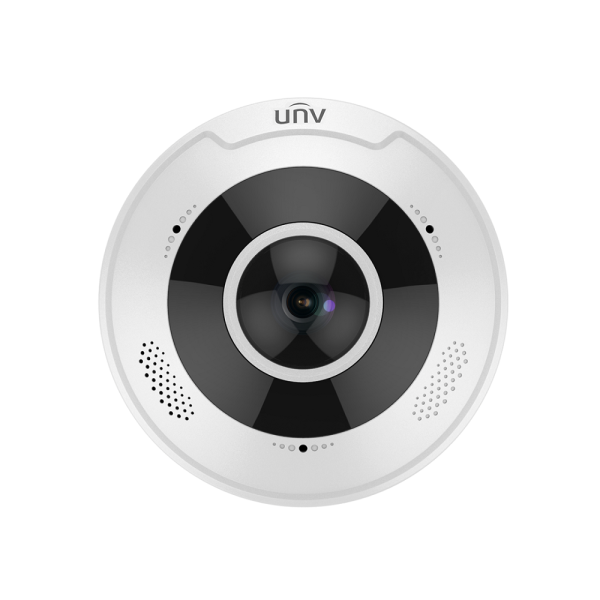

Uniview IPC815SB-ADF14K-I0

Camera

• Image sensor: 1/2.8″, progressive scan, 5.0 megapixel, CMOS
• Minimum Illumination Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR
• Day/Night: IR-cut filter for day & night function
• Shutter: Auto/Manual, shutter time: 1~1/100000 s
• WDR: 120dB
• S/N: >55dB

Lens

• Lens type: 1.4mm @ F2.0
• Angle of View: 360°

DORI

• DORI Distance: Detect: 31.5m; Observe: 12.6m; Recognize: 6.3m; Identify: 3.2m

Illuminator

• IR: Range UP to 10m (33ft)
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main Profile, High Profile
• Frame Rate: Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• ROI: Up to 8 areas
• Video Stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Flip Vertical/ Flip Horizontal/180°
• Dewarping: N/A
• HLC: N/A
• BLC: Support
• Defog: Digital Defog

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8 KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation; EZView; EZLive
• Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Live View Display

• Mount Type: Support table, wall, and ceiling
• Decoding Mode Support: software decoding
• Display Mode: 11 display modes in total – Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ; Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ
  Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ

Interface

• Audio I/O Input: impedance 35 kΩ; amplitude 2 V [p-p]
• Output: impedance 600 Ω; amplitude 2 V [p-p]
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Supported 2
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
• Video Output: N/A

Certifications

• EMC: FCC CFR 47 Part 15; EN 55032:2015; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3-2013
• Safety: IEC 62368-1; EN 62368-1; UL 62368-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power: DC12V±25%,PoE (IEEE 802.3af)
• Power consumption: Max. 8.5W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Φ × H): Φ125 × 43.7 mm (Φ4.9″ × 1.7″)
• Weight: 0.36kg (0.79lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge protection: 4KV
• Reset Button: Supported
• Protection Ingression protection: IP66
• Vandal resistant: IK10
