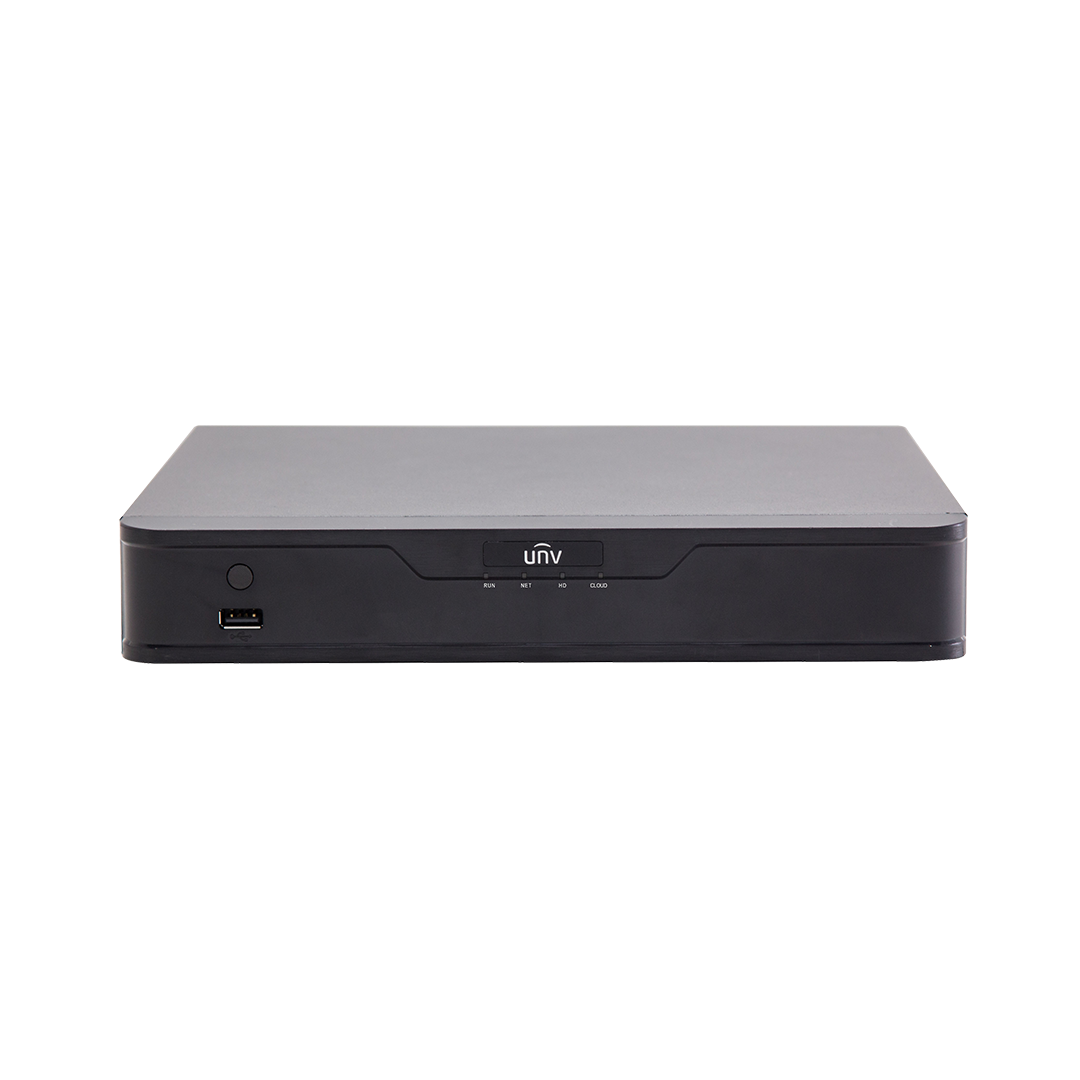

Uniview NVR301-04B-P4-IQ
Uniview NVR301-04B-P4-IQ Easy Series AI Artificial Intelligence 4K H265 Mini 1U 4-Channel 4x PoE Network Video Recorder – NVR
Uniview NVR301-04B-P4-IQ Easy Series AI Artificial Intelligence 4K H265 Mini 1U 4-Channel 4x PoE Network Video Recorder – NVR
Key Features :-
- Supports Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Supports HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Supports cloud upgrade
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 4K resolution) – can be configured as heterogenous output
- 1 x 3.5″ SATA HDD port (max. 10TB HDD per port)
- 2 x USB ports (one front, one rear)
- 4 x PoE ports (10/100Mbps) (Max. 50w PoE output across all PoE ports)
- 1 x LAN port (10/100Mbps)
- No Alarm input ports
- No Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
| NVR301-04B-P4-IQ | NVR301-08B-P8-IQ | |||||||
| Decoding | ||||||||
| Decoding Format | Ultra 265,H.265,H.264 | |||||||
| Decoding Capability | Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30 Smart On：2 x 4K@30, 4 x 4MP@30 |
Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 |
||||||
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width | |||||||
| Audio Compression | G.711A, G.711U | |||||||
| Network | ||||||||
| Incoming Bandwidth | 80 Mbps | |||||||
| Outgoing Bandwidth | 80 Mbps | |||||||
| Remote Users | 128 | |||||||
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 | |||||||
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | |||||||
| Video/Audio Input | ||||||||
| IP Video Input | 4-ch | 8-ch | ||||||
| RCA Audio Input | 1-ch | |||||||
| Video/Audio Output | ||||||||
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |||||||
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |||||||
| RCA Audio Output | 1-ch | |||||||
| Liveview Display | 1/4 | 1/4/6/8/9 | ||||||
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | ||||||
| Two-way Audio | ||||||||
| Two-way Audio | 1-ch,RCA(Using the audio input and output) | |||||||
| Snapshot | ||||||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) | |||||||
| Recording | ||||||||
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | |||||||
| Num of Concurrent Playback | 16-ch | |||||||
| Smart | ||||||||
| VCA Detection by IPC | Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring | |||||||
| Smart by NVR | Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) | |||||||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch | |||||||
| Smart by IPC | All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, SIP, UMD, Traffic Monitoring | |||||||
| Search by Image | Support | |||||||
| SIP by NVR | 2-ch | |||||||
| UMD by NVR | 4-ch | |||||||
| Alarm | ||||||||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||||
| GUI Language | ||||||||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |||||||
| Hard Disk | ||||||||
| SATA | 1 SATA Interfaces | |||||||
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) | |||||||
| External Interface | ||||||||
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface | |||||||
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0 | |||||||
| RS485 | N/A | |||||||
| RS232 | N/A | |||||||
| Alarm In | N/A | |||||||
| Alarm Out | N/A | |||||||
| Power Supply | DC 48 V/1.35 A | DC 52 V/1.8 A | ||||||
| Power Switch | N/A | |||||||
| PoE | ||||||||
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface | ||||||
| Max Power | Max 30W for single port, Max 50W in total | Max 30W for single port, Max 75W in total | ||||||
| Supported Standard | IEEE 802.3at,IEEE 802.3af | |||||||
| Working Environment | ||||||||
| Working Temperature | -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) | |||||||
| Working Humidity | ≤ 90% RH (non-condensing) | |||||||
| Power Consumption (without HDD) | ≤ 12W | |||||||
| Dimensions | ||||||||
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) | |||||||
| Height | 1U | |||||||
| Dimensions | 260mm × 222mm × 47mm (10.2″×8.7″×1.8″) | |||||||
| Certification | ||||||||
| Certification | CE; FCC; UL; RoHS; WEEE | |||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||||
| FCC | Part15 Subpart B | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
